SUSPENDED WORKING PLATFORM AB 450 / 650
Assembly and Operating Manual
54 / 96 BL061 GB Edition 04/2016

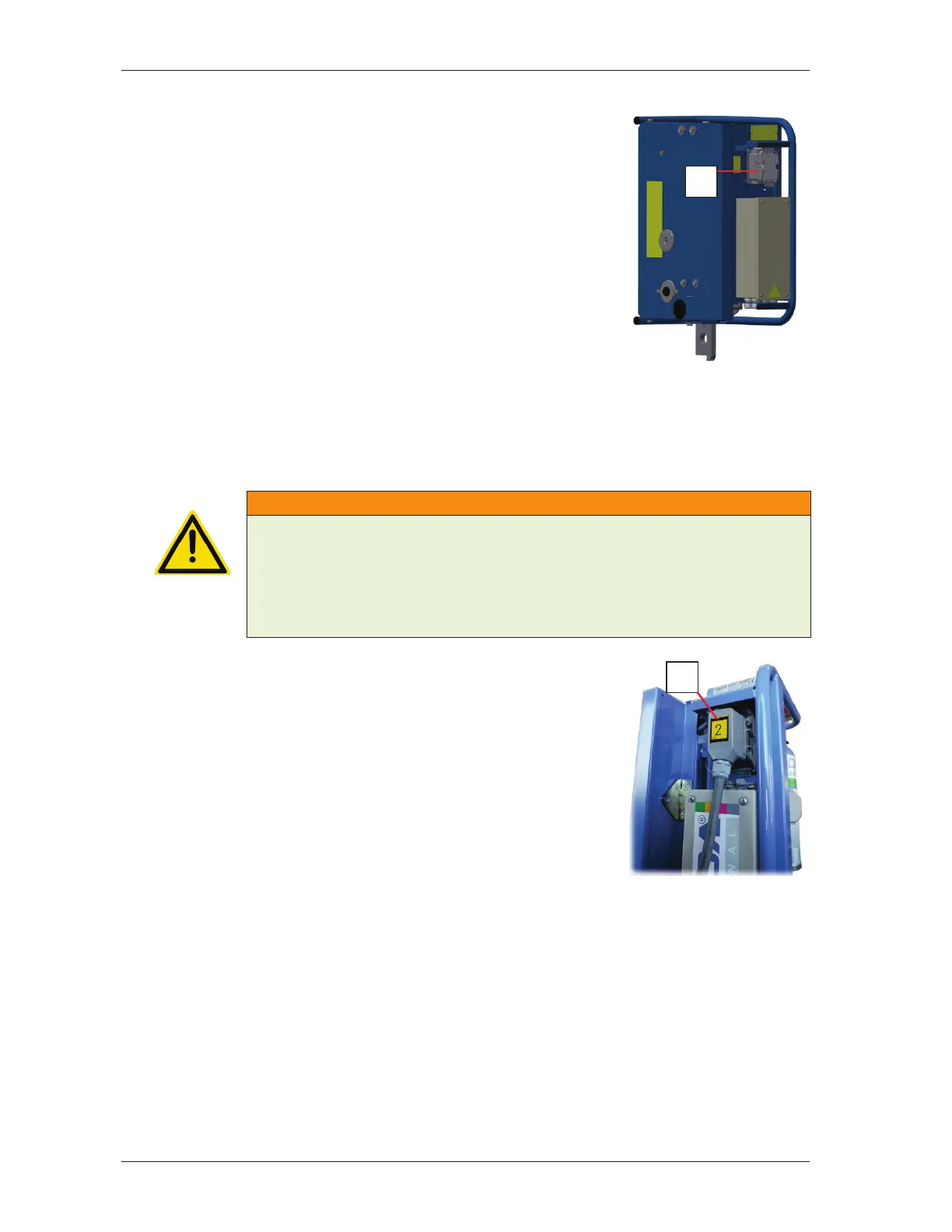

Connection of the connection plug is simply
made with the plug-in device (1A) on the rope
winch.
Single control box
¾ Plug the connection plug in the rope winch.
Central control box
Fall from the working platform
Correct connection of the winches must be ensured.
Changing over the connection (right/left) leads to an increase in any
tilt which may occur as a result of the automatic tilt-compensation of
the controller.
Î Rope winch and connection plug are marked.
¾ Plug the connection plug (4A) in the
1st rope winch.
¾ Plug the connection plug (4B) in the
2nd rope winch.
For 3rd rope winch option
¾ Plug the connection plug (4C) in the
3rd rope winch.
