SUSPENDED WORKING PLATFORM AB 450 / 650
Assembly and Operating Manual
46 / 96 BL061 GB Edition 04/2016
5.3 Mounting the working platform
The working platform is mounted on the ground, in the vertical
perpendicular of the outriggers.

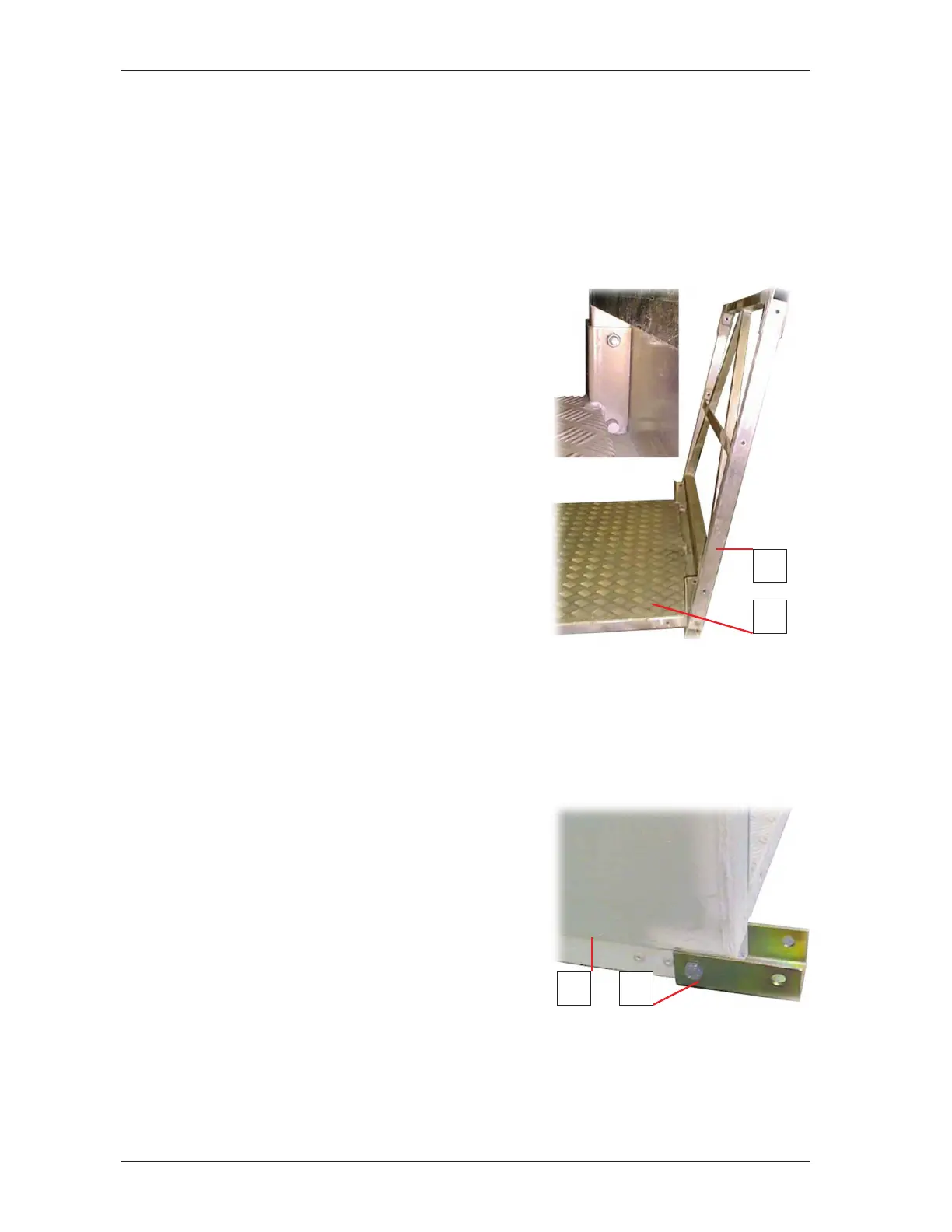

5.3.1 Assembling a platform segment
¾ Hook the flooring (1) into both
railings (2) and screw into place.
¾ Repeat procedure for each
platform segment.
5.3.2 Connecting platform segments to each other
By arranging 1m, 2m and 3m segments against each other the
suspended working platform can be extended to the correspondingly
required working width.
¾ Fasten a connecting piece (4) to
the platform segment (3) on both
sides.
2 x bolt M 12 x 80 8.8
2 x self-locking nut M12
4 x washer 12
2
1
4
3
