SUSPENDED WORKING PLATFORM AB 450 / 650 Assembly
BL061 GB Edition 04/2016
47 / 96 Assembly and operating manual

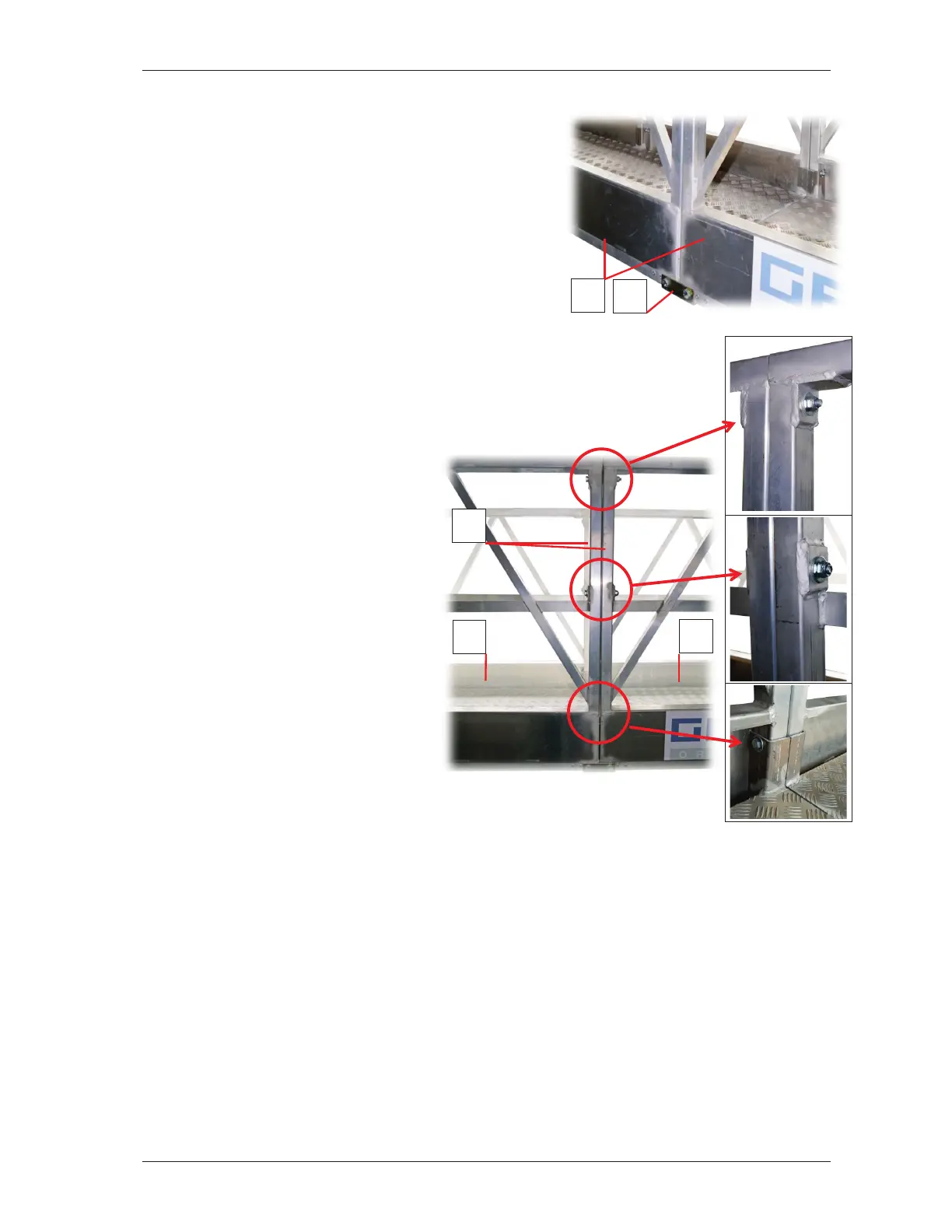

Push the platform segments
together and bolt them together with
the connecting piece (4).
2 x bolt M 12 x 80 8.8
2 x self-locking nut M12
4 x washer 12
¾
Bolt the platform segments (3) to the railings (2).
6 x bolt
M 12 x 80 8.8
6 x self-locking nut
M12 –
12 x washer 12
¾ Fasten additional platform segments as described to max. platform
width of 14 m.
3
4
3
3
2
