5.1.5 Raising the DA 6 outrigger (option)
It is possible to raise the DA 6 outrigger by 900 mm. All information
provided above relating to use and to the forces and counterweights
remains unchanged by raising the outrigger.
WARNING
Danger to life
The DA 6 outrigger can only be raised once.
Assembly of the outrigger DA 6, see Chapter 5.1
)
Only the steps necessary for assembling the raised section are
described.

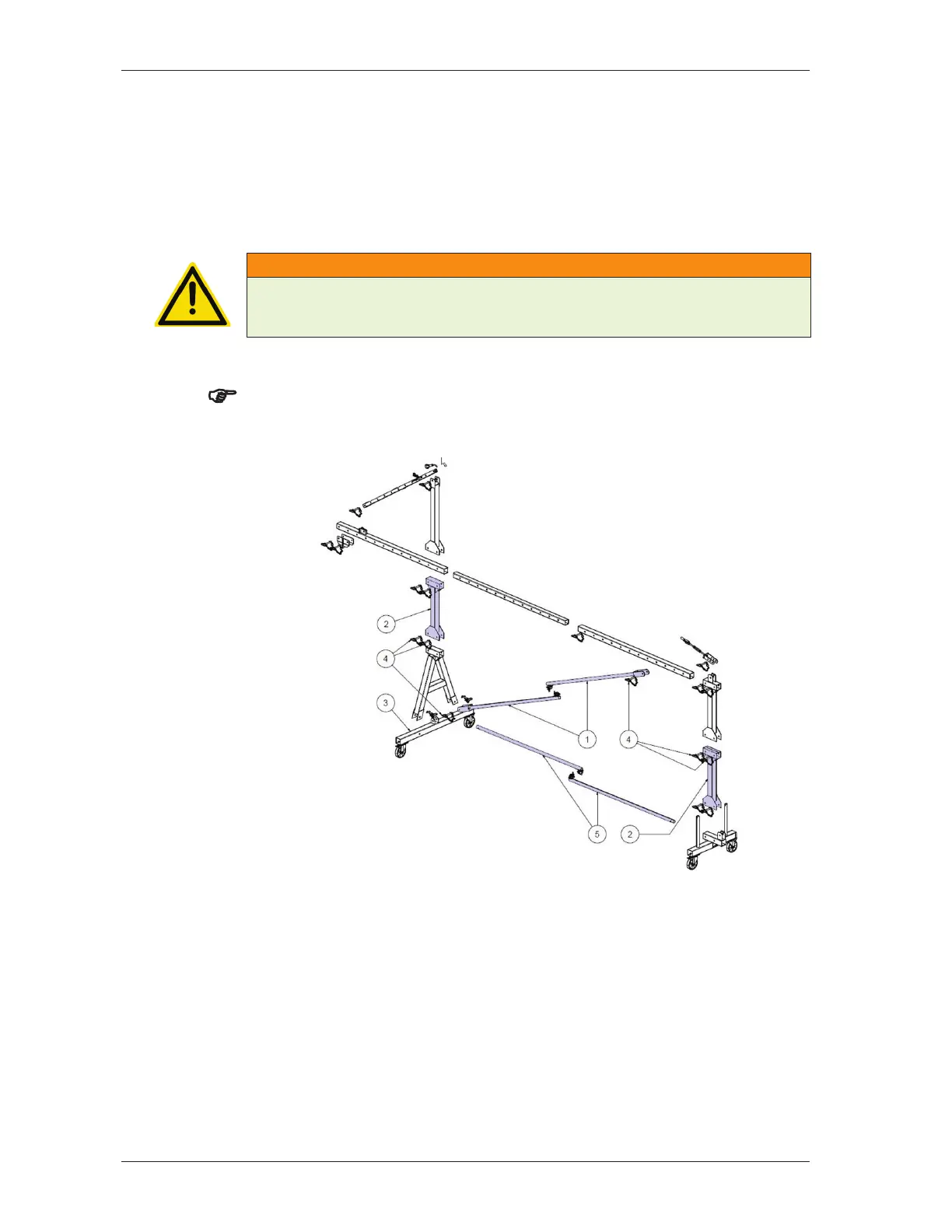

¾ Insert props (2) and secure with socket pins (4).
¾ Insert braces (1) and (5) and secure using bolts (4) and clamps
fastened to the pipes.
