Prox–DU and Prox–SU differences
The main difference between the Prox–DU and Prox–SU models is related to the smart card
slot:
• Prox–DU: the smart card slot located in the top cabinet is open. The user can insert
or remove its ID-1 size smart card directly into or from the reader slot

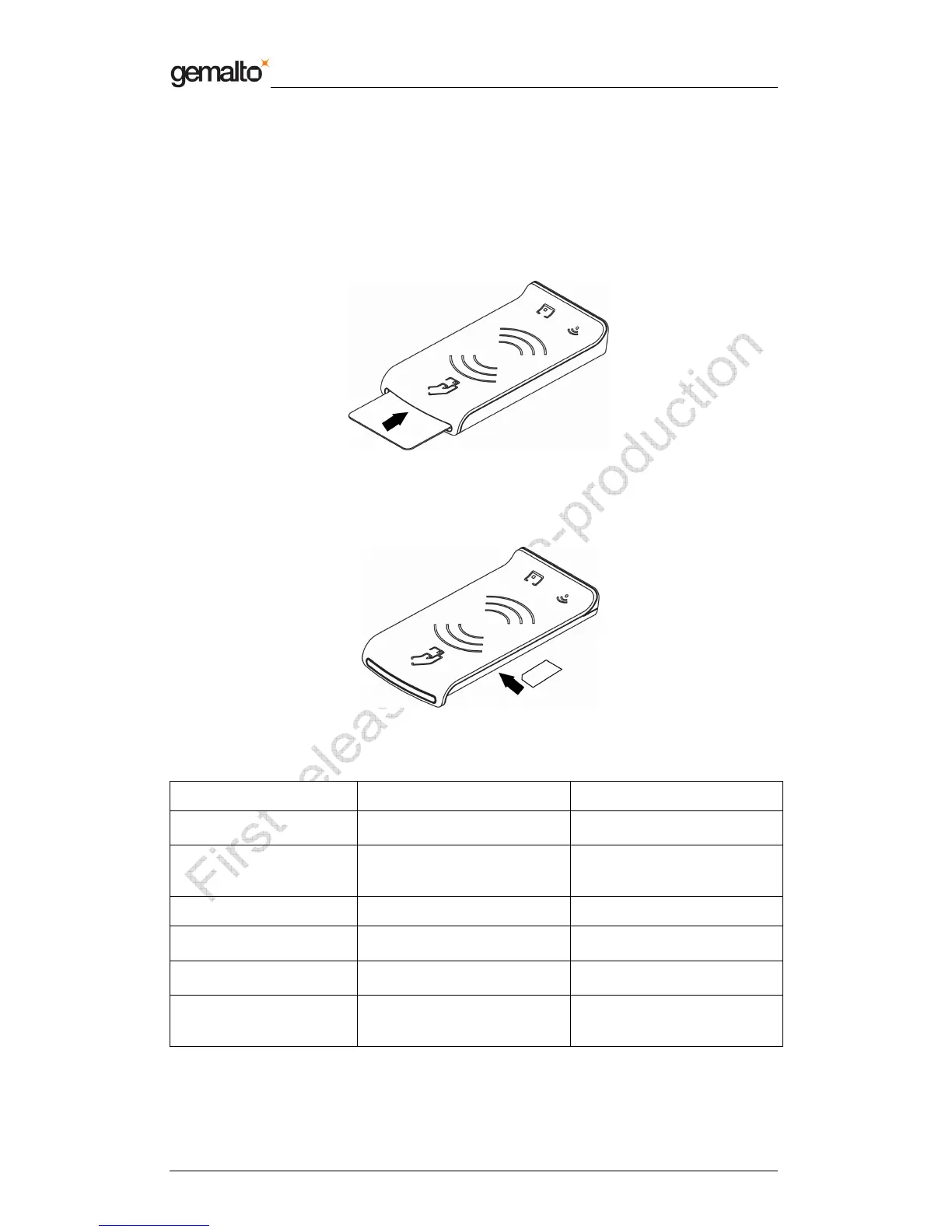

Figure 4 - Prox–DU ID-1 size slot
• Prox–SU: the smart card slot located in the top cabinet is closed. The user should
open the casing before inserting its ID-000 size smart card into the dedicated
connector. When the casing is closed the SIM/SAM card cannot be removed.
Figure 5 - Prox–SU ID-000 size slot
The following table shows all the different features supported by the Prox–DU and the Prox–
SU reader/writers:
Feature Prox–DU Prox–SU
Contact card interface
ID-1 size format (smart card)
Removable
ID-000 size format (SIM/SAM)
Not removable
Dual interface protection
Managed
Can be disabled according to
device configuration
No management
Switch interface command Available Not useful
Product name in the string
version
Gemalto Prox-DU Gemalto Prox-SU
Product string in USB
descriptor
Prox Dual USB
PC Link Reader
Prox SU USB
PC Link Reader
LEDs
The LED of the contact
interface is blinking when no
card is inserted
The LED of the contact
interface is Off when no
SIM/SAM is present
Table 2 : Prox–DU and Prox–SU differences
