Reference Manual Preliminary
Prox–DU & Prox–SU
www.gemalto.com Release for first samples Do not use for final design
DOC118569A Public Use Page 22/134
• Contactless type:
o ISO14443-A Memory cards (MIFARE
®
)
o ISO14443-A Microprocessor cards (T=CL)
o ISO14443-B Microprocessor cards (T=CL)
o Automatic scan between ISO14443-A and ISO14443-B
• Contactless baud rate
o 106 kbps - 212 kbps - 424 kbps - 848 kbps
• Contactless protocol
o MIFARE
®
classic
o ISO14443-4 (T=CL)
• Contactless commands
o Compliant with PC/SC V2.0 Part 3 Revision 2.01.09 specifications
Contact interface
The contact interface is available with the Prox–DU and the Prox–SU and is composed of
a smart card connector with a smart card slot located in the front cabinet for the Prox–DU
and located inside the casing for the Prox–SU.

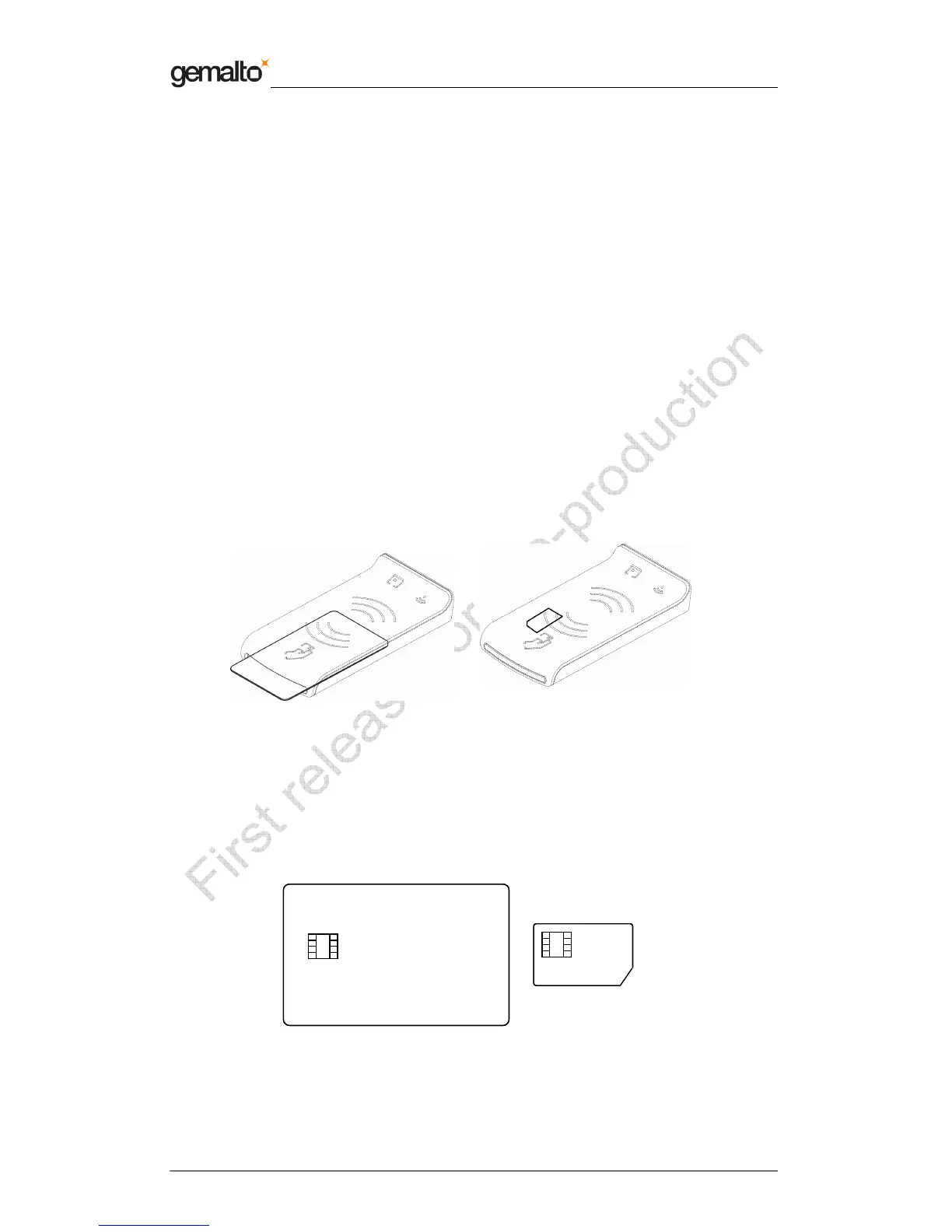

Figure 15 – Contact card slot (Prox–DU and Prox–SU)
The characteristics for the contact interface are as follows:
• Card type:
o Asynchronous (Microcontroller based)
• Card size:
o ID-1 for the Prox–DU (full size form factor)
o ID-000 for the Prox–SU (SIM/SAM form factor)
Figure 16 – ID-1 and ID-000 card size
• Card baud rate:
o up to 500 kbps (TA1 = 97h for a clock frequency of 4 MHz)
54 mm x
85.6 mm
54 mm x
85.6 mm
25 mm x
15 mm
25 mm x
15 mm
