Generac Power Systems CorePower User Manual

PART 5
DISASSEMBLY
Page 82
Section 5.1
Major Disassembly
DISASSEMBLY
Tools Required:
•7mm Socket
•8mm Socket
•10mm Socket
•13mm Socket
•Harmonic Balancer or Steering Wheel Puller
•Replacement Rotor Bolt (Part No. 0H6930)
•Replacement Exhaust Gasket (Part No. 0H8191)
Torque Values
•Stator Bolts 6 ft-lbs
•Rotor Bolt 30 ft-lbs

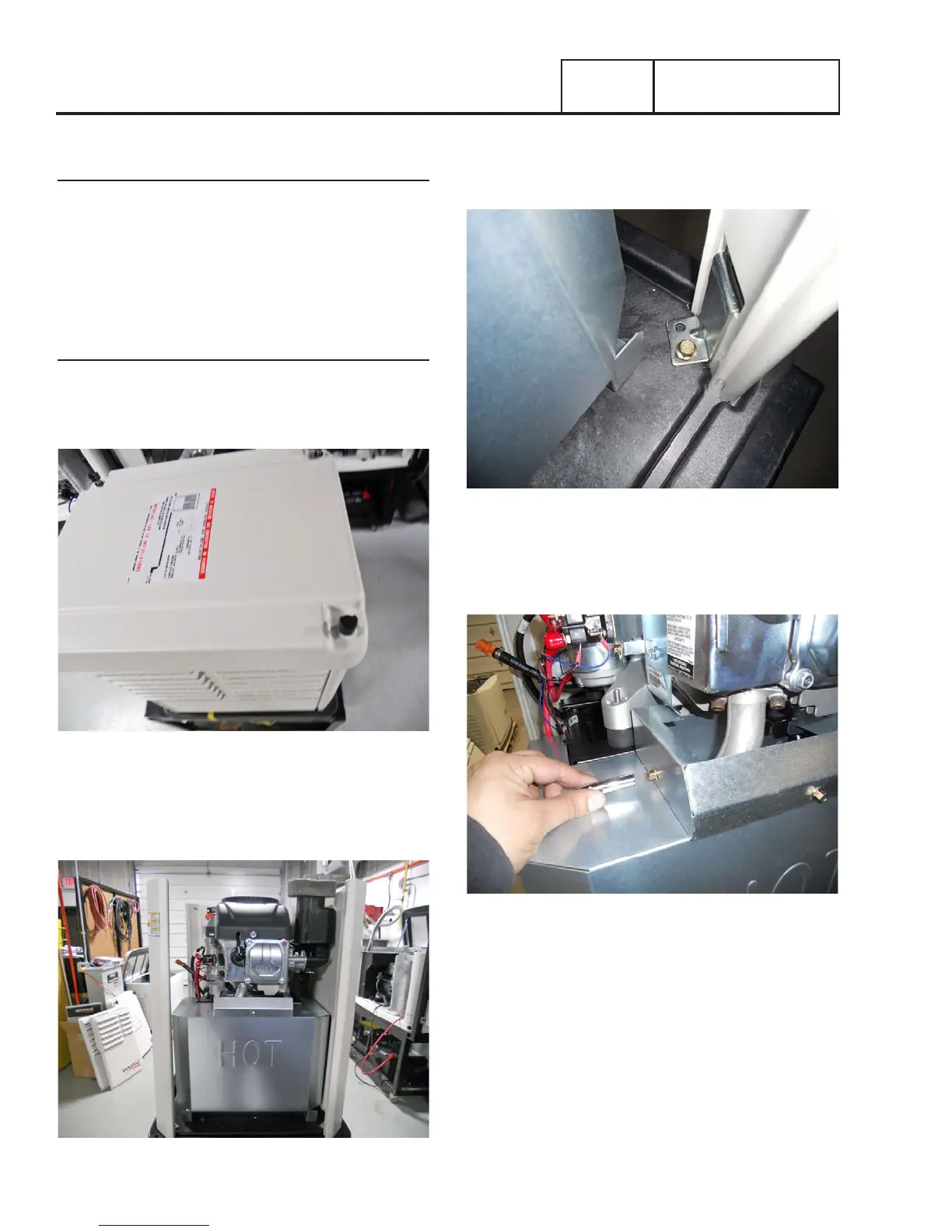

1. Remove lid from the top of the enclosure.
Figure 63.
2. Remove the three removable sides of the enclosure.
Refer to Figure 64 for the side that will remain during the
disassembly.
Figure 64.
3. Disconnect and remove the battery.
4. Using a 10mm socket remove the front two enclosures
braces.
Figure 65.
5. Using an 8mm socket and a 10mm socket remove the
three bolts holding the heat shield. Refer to Figures 66 and
67.
Figure 66.
