DISASSEMBLY
PART 5
Page 83

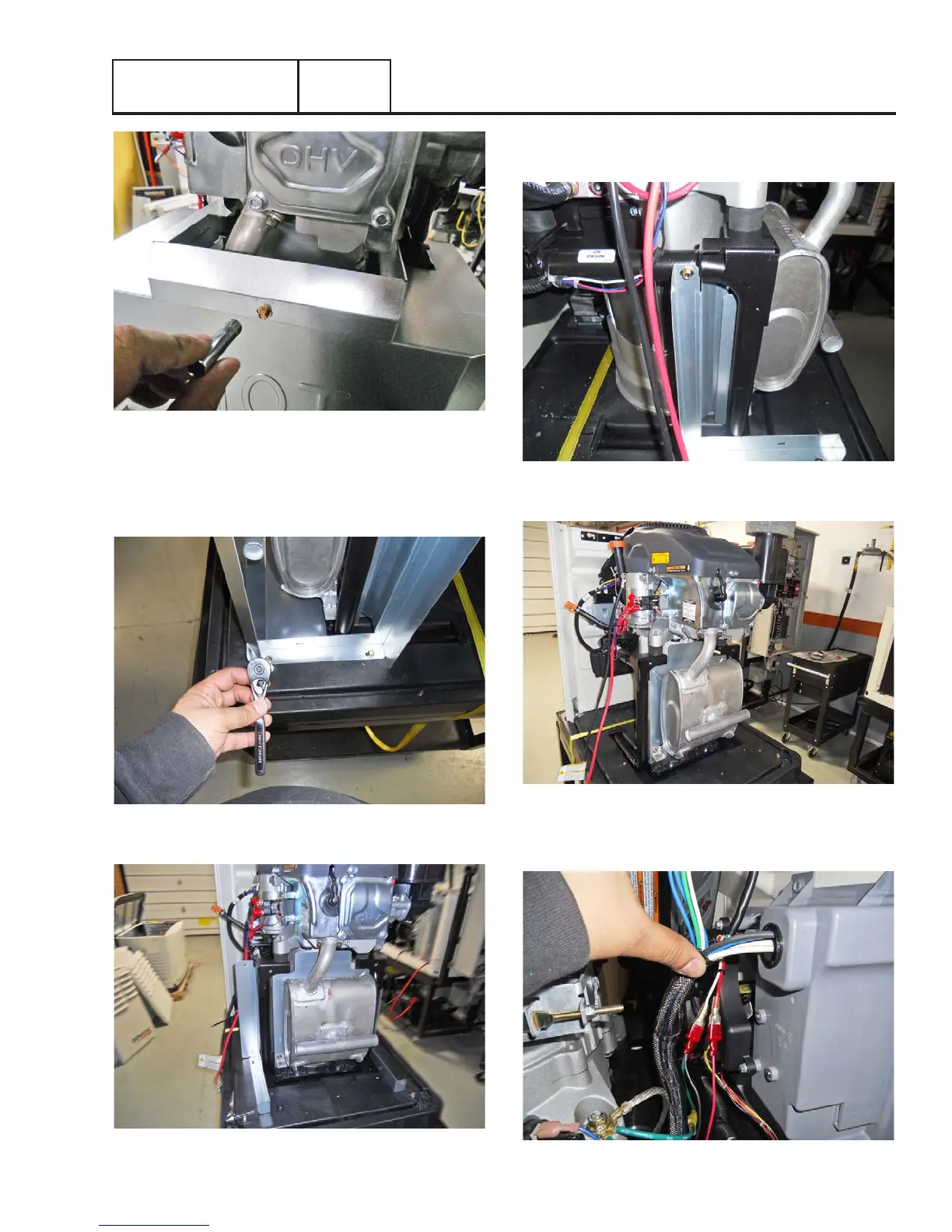

Figure 67.
6. Using a 10mm socket remove the three (3) bolts holding
the exhaust housing from the engine support and base.
Refer to Figure 68 and 69.
Figure 68.
Figure 69.
7. Using a 10mm socket remove the remaining exhaust
enclosure pieces on each side.
Figure 70.
Figure 71.
8. Disconnect the red and black brush wires.
Figure 72.
Section 5.1
Major Disassembly
