6. Put middle and short-sized rods in wing as shown on the picture.
Place n and wingtip on rods as shown on the picture.
Carefully put the wingtip on mounting rods and lock it by rubber locker.
Similarly, install n and wingtip from the other side.

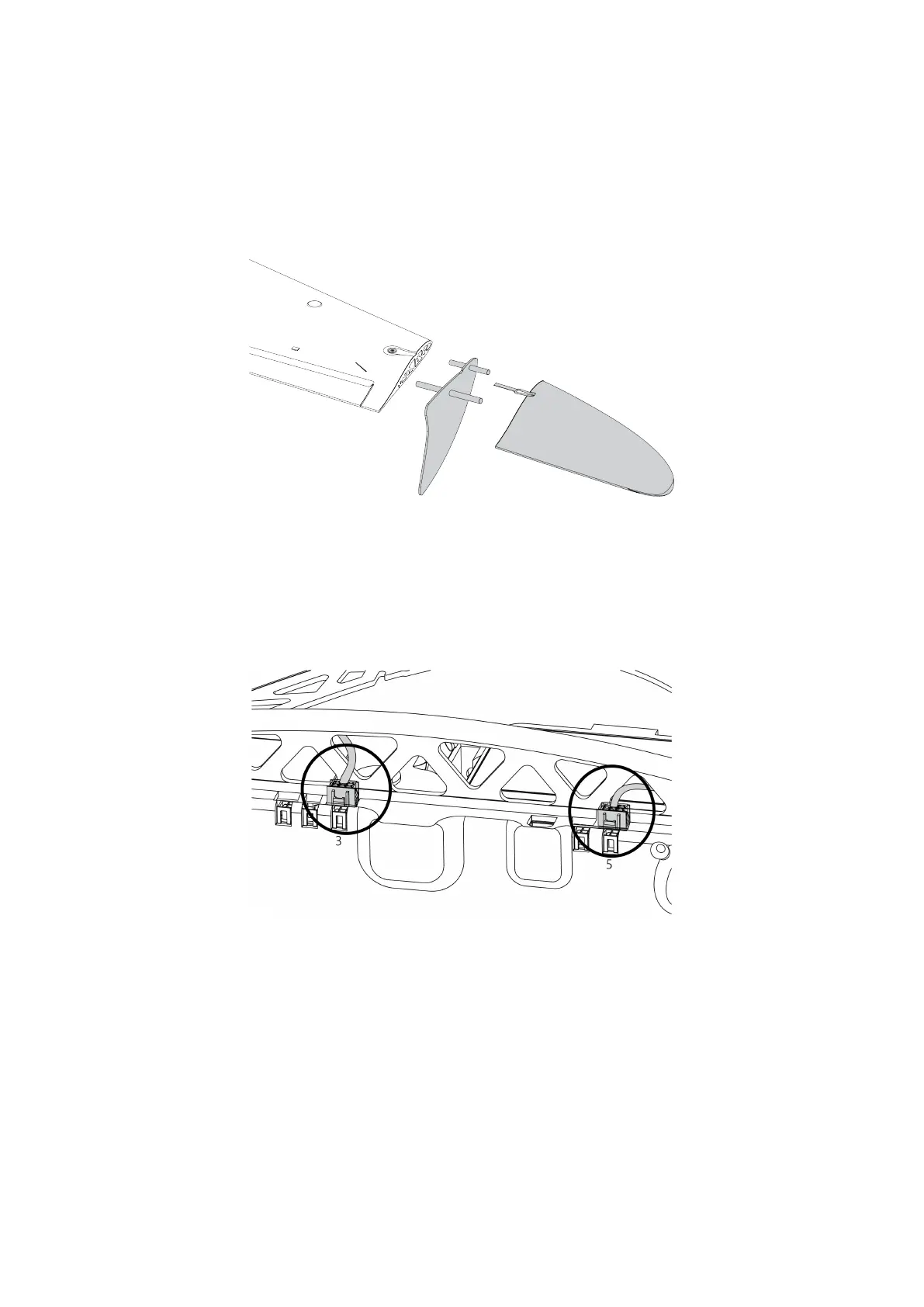

Fin and wingtip installing
7. Place the camera(-s) in UAV slot(-s) and lock it (them) by velcro(-s).
Connect camera’s connectors in slots as shown on the picture.
You can operate the camera (for setting or formatting) without disconnecting it from
the UAV. Just unlock camera cradle’s velcro.
Camera connecting
