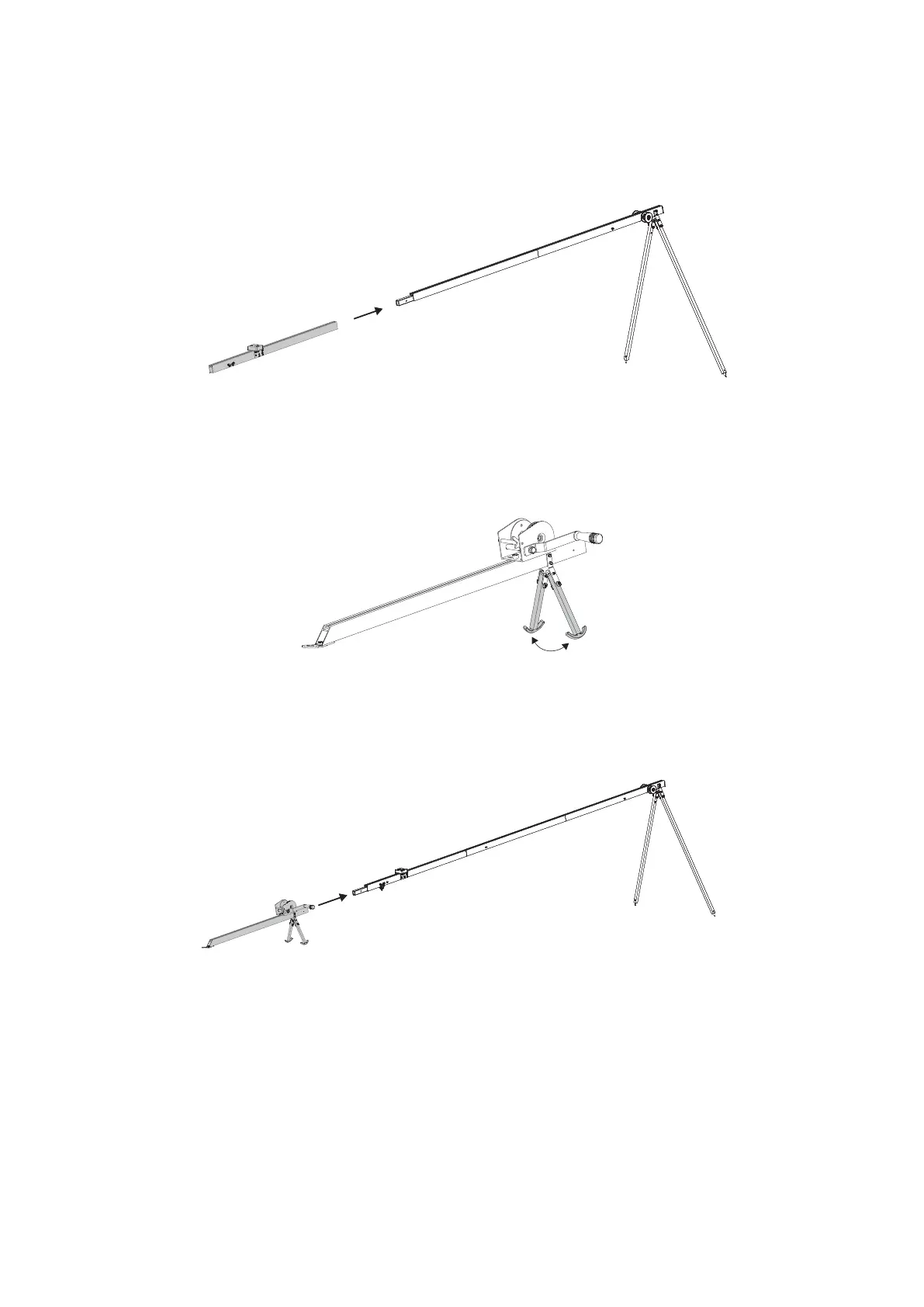

4. Attach the part with carriage detaching mechanism and put locking pin.
Carriage detaching mechanism’s part installing
5. Spread out rear launcher’s supports.
Rear supports spreading
6. Attach the rear part with reel to launcher and put locking pin.
Rear part attaching
