Get Control E84 - Single handoff sequence for Unloading

Handheld Tester Emulator Test Suite Worksheet
3
PAGE 107

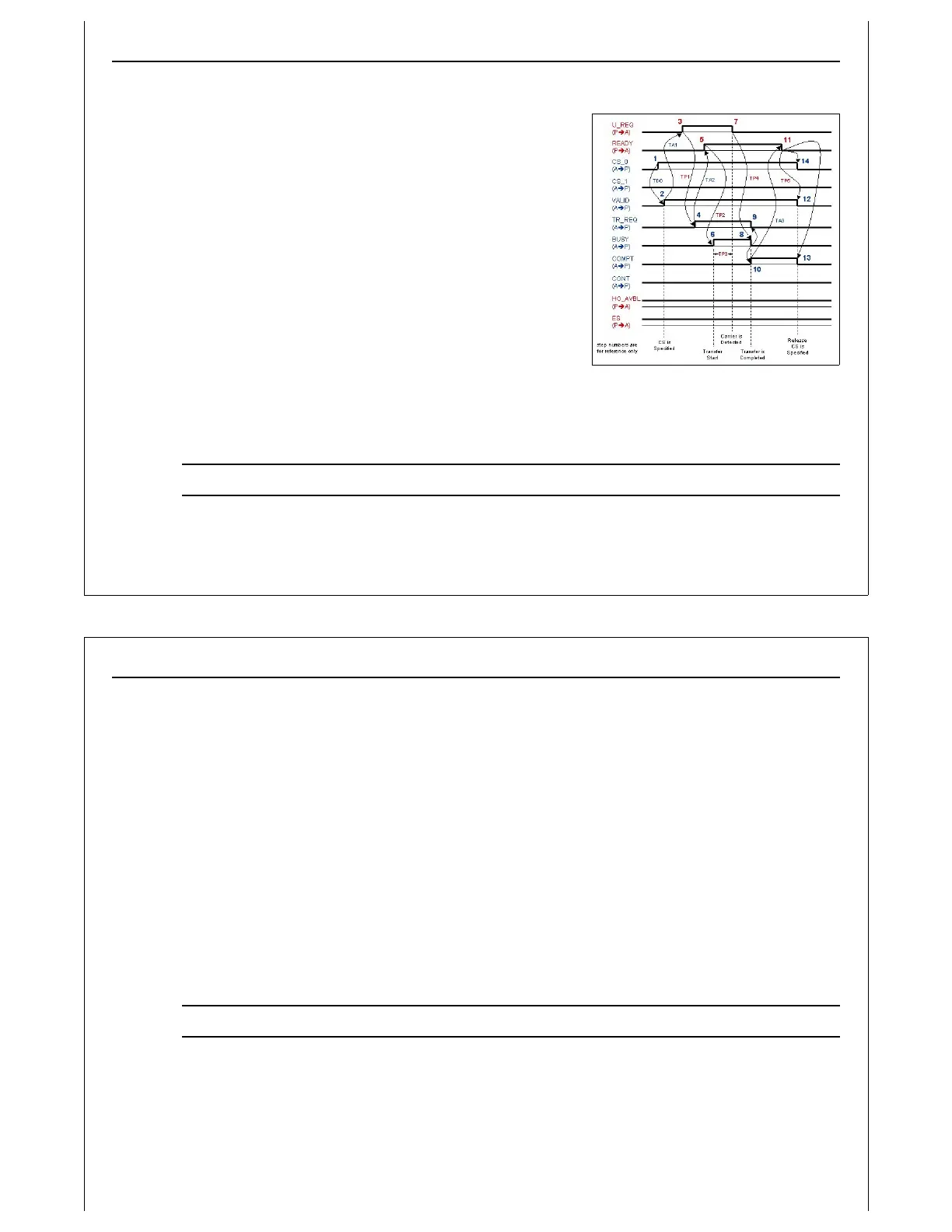

Figure 100 - Single Handoff - Unload
[P] [F] D. Single handoff sequence for Unloading: All steps must occur in the prescribed order to
pass:
1. Place a FOUP on the loadport associated with the E84
interface being tested
2. Verify that the HO_AVBL signal is ON on the equipment
3. Set the CS_0 signal ON and CS_1 signal OFF on the
E84 HHT
4. Set the VALID signal ON on the E84 HHT
5. Verify that the equipment turns the U_REQ signal ON
6. Set the TR_REQ signal ON on the E84 HHT
7. Verify that the equipment turns the READY signal ON
8. Set the BUSY signal ON on the E84 HHT and remove
the FOUP from the loadport associated with the E84
interface being tested
9. Verify that the equipment turns the U_REQ signal OFF
10. Set the BUSY signal OFF, TR_REQ signal OFF and
COMPT signal ON on the E84 HHT
11. Verify that the equipment turns the READY signal OFF
12. Set the COMPT, VALID and CS_0 signals OFF on the E84 HHT
Notes:
Handheld Tester Emulator Test Suite Worksheet
3
PAGE 108
[P] [F] D. Single handoff sequence for Unloading - 2
nd
Run (See Figure 100): All steps must occur in
the prescribed order to pass:
1. Place a FOUP on the loadport associated with the E84 interface being tested
2. Verify that the HO_AVBL signal is ON on the equipment
3. Set the CS_0 signal ON and CS_1 signal OFF on the E84 HHT
4. Set the VALID signal ON on the E84 HHT
5. Verify that the equipment turns the U_REQ signal ON
6. Set the TR_REQ signal ON on the E84 HHT
7. Verify that the equipment turns the READY signal ON
8. Set the BUSY signal ON on the E84 HHT and remove the FOUP from the loadport associated
with the E84 interface being tested
9. Verify that the equipment turns the U_REQ signal OFF
10. Set the TR_REQ signal OFF, BUSY signal OFF and COMPT signal ON on the E84 HHT
11. Verify that the equipment turns the READY signal OFF
12. Set the COMPT, CS_0 and VALID signals OFF on the E84 HHT
Notes:
