DESCRIPTION OF THE DOOR PANEL
100
Description of the Nexa modular door panel:
AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED PANEL WITH DISPLAY
Sound modules
EL63 PLUS P/T2
EL642/PLUS
EL632 R5 P/T
EL642/R5
Access control module
N3301/AL
,
coded module and access control.
, video door entry system with colour television camera, 3 wires + COAX.

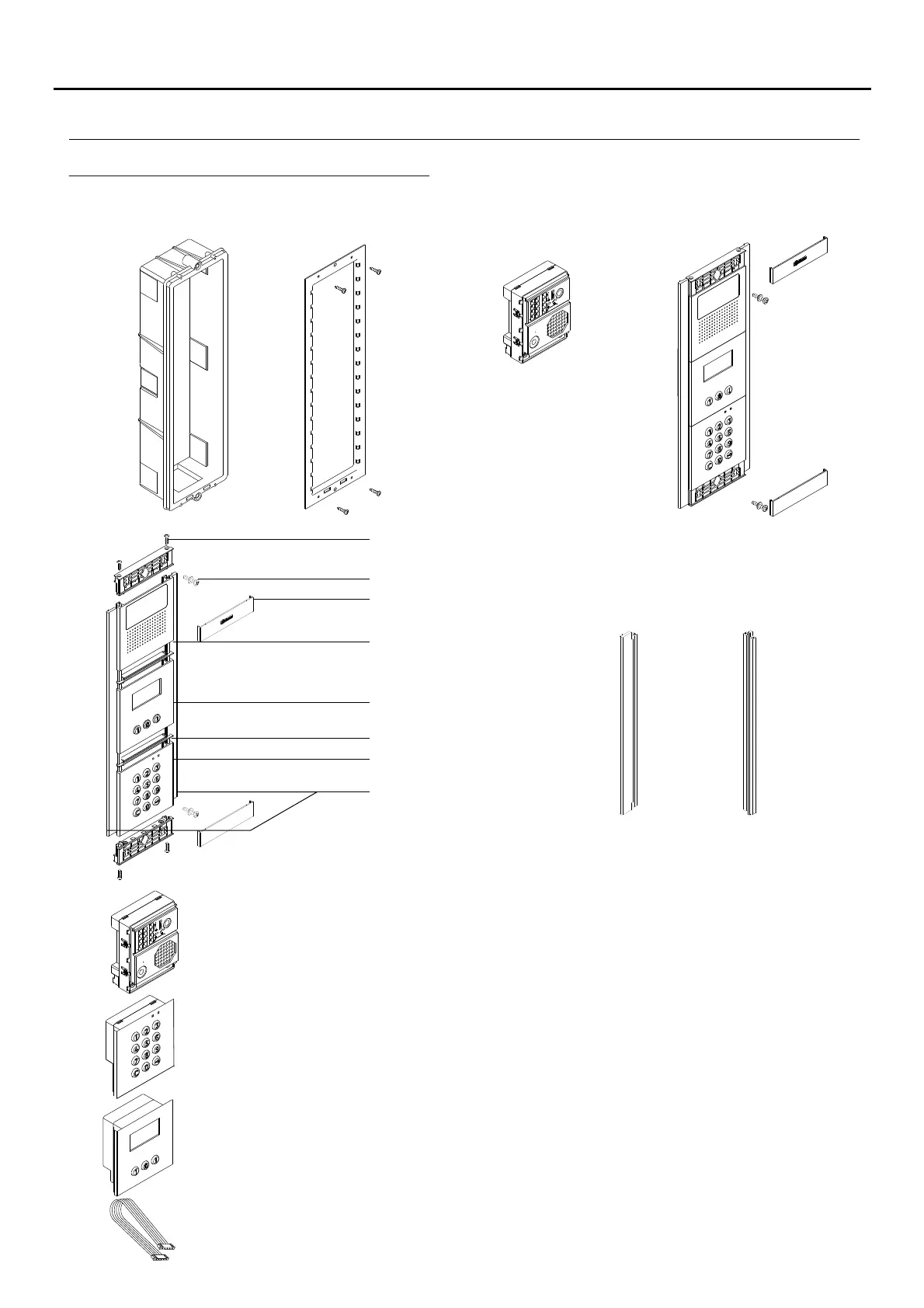

Door panel component assembly drawing.
Aluminium panel
Electronic modules
Frame modulesEmbedding boxes
Description of the door panel.
Grille modules:
N1000/AL
N1110/AL 1P.
N2220/AL 2P.
Clip-on covers: 60xx
Display module:
N3403/AL
Nexa module separator (x2)
Fixing screws for clip-on covers (x4)
Side profile (x2)
Side profile
Door panel joining bar
*
Fixing screws for embedding box (x2)
Door panel joining bar: Enables 2 door panels to be joined.
, audio door entry system, 4 common wires.
, video door entry system with colour television camera, 5 common wires.
, audio door entry system, 5 common wires.
Display module
N3403
,
display module.
*
Coded module
N3301/AL
NEXA Bus link hose (length 50 cm).
To connect the EL632 EL642 module to the N3301/AL coded/ Plus or EL632/EL642 R5
module and the N3403 display module.
