Each apartment must only have one master unit; if there are parallel units, whether monitors or telephones, they must be
configured as slaves.
Make a call to check that the telephone has been successfully programmed. Programme the other
telephones in the same way.
After programming, exit by pressing .
01
Programming T-540 Plus telephones:SE

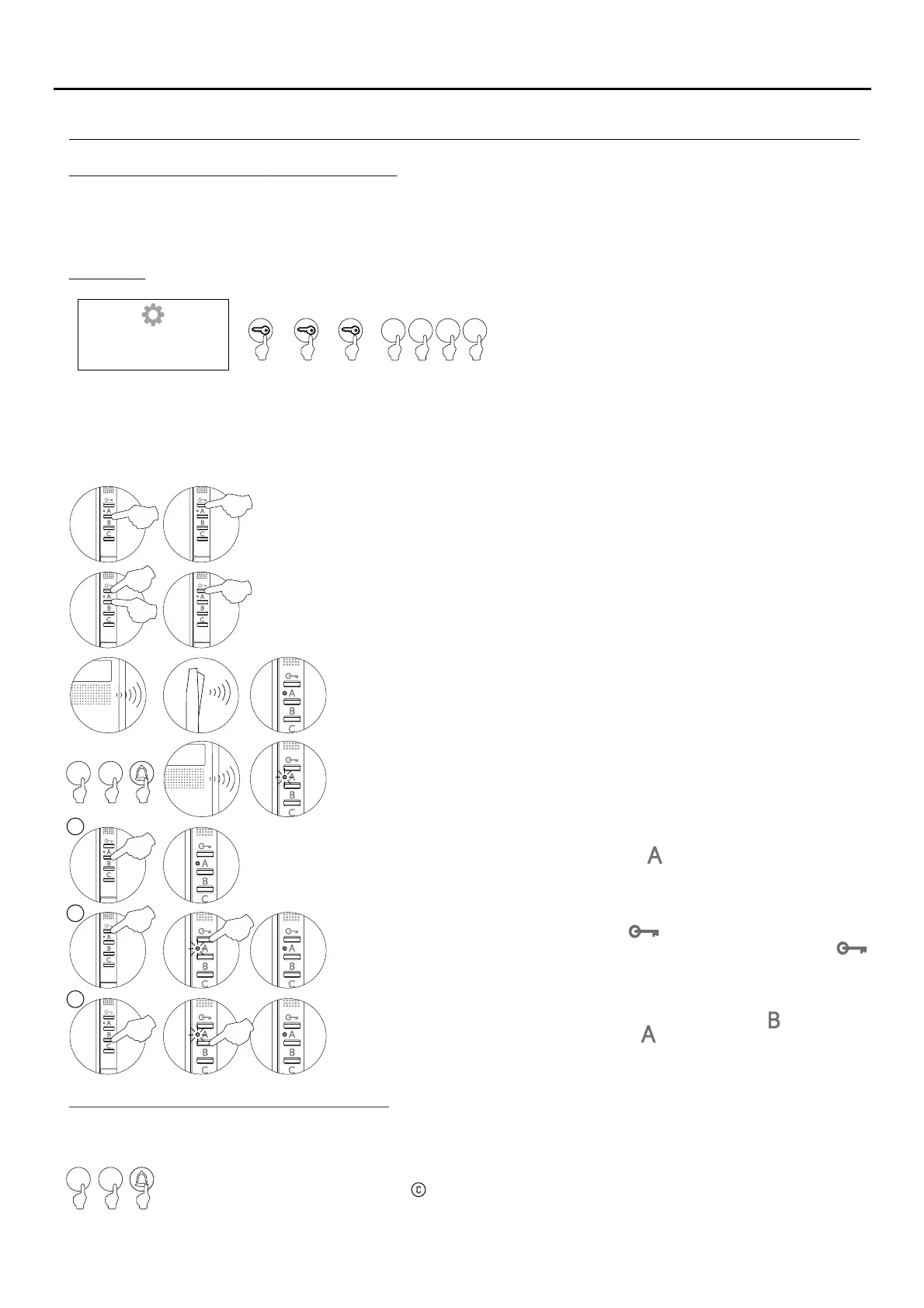

PROGRAMMING THE TELEPHONES
If it is a general entrance door panel in a residential complex, only programme the monitors from their inner door panels, as
indicated in the instruction manuals supplied.
If it is an inner door panel in a residential complex or a door panel for a single building, programme the monitors as shown
below.
Important: .To perform this programming, the 's SW DIP switches should be set totelephone 1 OFF
139
To enter configuration mode, press the key button
three times and then enter the secret administrator
pin (factory code 2718) as described on p. 117.
CONFIGURATION
2 7 1 8
****
AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED PANEL WITH DISPLAY
(1)
Important: Programming from coded module:
- With EL632 PLUS and EL642 PLUS sound module V03 or later / EL632 PLUS P/T with V05 or later.
- With N3301/AL or NX3301 V03 or later.access control module
With or display module- N3403/AL NX3403 V05 y posterior.
Bear in mind the number of digits in the configured code (factory setting 2718 = 4).
(1)
Enter the code to be called by this followed by the button.telephone, bell
At this moment, the door panel and handset will emit a number of tones (the
LED on the telephone will blink red).
M
S
SI
Switch off the telephone to be programmed.
Once switched off, press the door release button.
While keeping the door release button pressed, switch on the telephone.
To show that the system is ready for programming, the door panel and the
telephone handset will emit a number of tones (the LED on the telephone will
illuminate red), enabling the door release button to be released. To establish
audio communication with the door panel, lift the handset.
01
To programme the telephone as , press button and the LEDSlave + Intercom
will blink (green) once. Then press button for 3 seconds (the telephone's
LED will illuminate red).
To programme the telephone as , press button for 3 seconds (the telephone'sMaster
LED will illuminate red).
To programme it as , press button once, and the status LED willSlave 1
blink (green) once. Continue successively to , pressing buttonSlave 4
four times, and the status LED will blink (green) four times.
