With the handset lifted:
If programming the monitor as master, replace the handset.
If programming it as slave, press the door release push button, then replace the
handset.
Master Slave
IMPORTANT:
If the installation has a CD-PLUS/R5 converter with coded panel or guard unit, the programming codes assigned to the
monitors must be between 1 and 250. To make it easier for the user to make a call, another parallel code can be assigned
in a 2nd assignment table.
From sound module:
L
ocate the DIP switch situated at the back of the EL632 R5 sound module and set number 2 to ON, as
described on p. 3. The door panel will reproduce a sound to advise that the system has entered into6
programming mode.
In systems with more than one door panel, the programming process shall be done on the master door
panel only.
From coded module:
Press the key button three times and then enter the administrator pin he willt module emittones
, :
Turn off the monitor to be programmed by holding pressed the door release push button for
one second.
Once off, press the auto switch-on button.
While holding pressed the auto switch-on button, simultaneously press the door release
button.
To show that the system is ready for programming, the door panel will emit a tone and the
image will appear on the monitor. The push buttons can now be released.
Lift the handset off the monitor.
Enter the code to be called by this monitor followed by the key button.,
At this moment both door panel and handset will emit tones.
Each apartment must only have one master unit; if there are parallel units, whether monitors or telephones, they must be
configured as slaves.
Make a call to check that the monitor has been successfully programmed. Programme the other
telephones in the same way.
Once the programming has finished, set the programming switch to OFFsound module or press the
key if the programming is from coded module. If this is not done, the door panel will emit tones to
indicate that the system is still in programming mode .(programming from sound module)
Programming Tekna R5 monitors:Col SU-R5

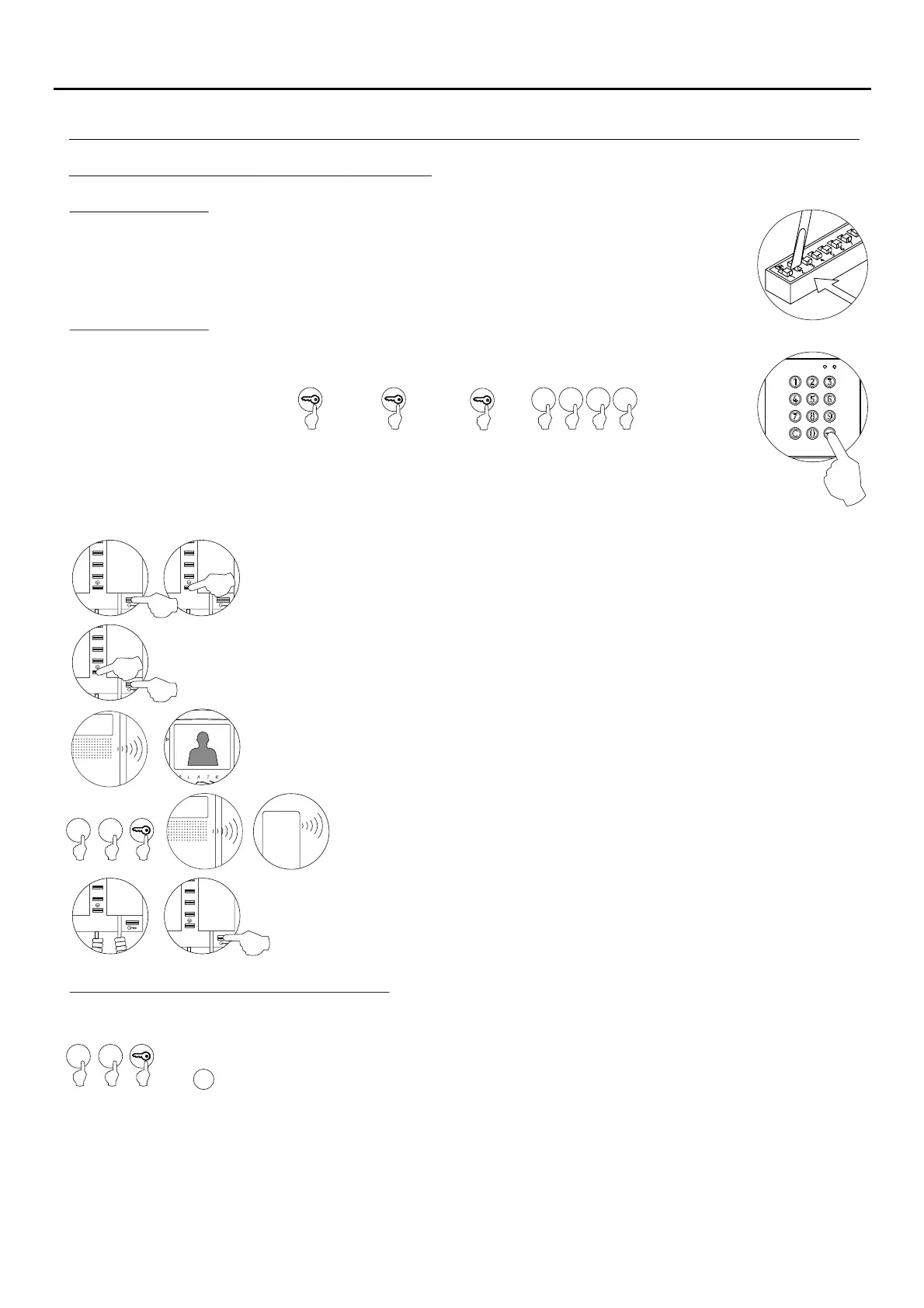

PROGRAMMING THE MONITORS
87
AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED DOOR PANEL
Important: Programming from coded module:
- With EL632 R5 sound module V01 or later / EL632 R5 P/T with V03 or later.
- With N3301/AL or NX3301 V03 or later.access control module
(1)
2 7 1 8
Key button + key button + key button + administrator pin.
Bear in mind the number of digits in the configured code (factory setting 2718 = 4).
(1)
C
01
01
