PROGRAMMING THE DOOR PANEL
118
System settings menu
SYSTEM CONFIG
ACCESS CONTROL
RESIDENT LIST
MASTER PANEL
GENERAL PANEL
PANEL ADDRESS
LANGUAGE
GENERAL PANEL
PANEL ADDRESS
LANGUAGE
MASTER PANEL
GENERAL PANEL
PANEL ADDRESS
LANGUAGE
MASTER PANEL
GENERAL PANEL
PANEL ADDRESS
LANGUAGE
MASTER PANEL
PANEL ADDRESS
PANEL W.CAMERA
MASTER PANEL
GENERAL PANEL
PANEL W.CAMERA
CALL TO EXCHANGE
GENERAL PANEL
PANEL ADDRESS
LLAMA A CENTRAL
IF NO ANSWER
PANEL ADDRESS
PANEL W.CAMERA

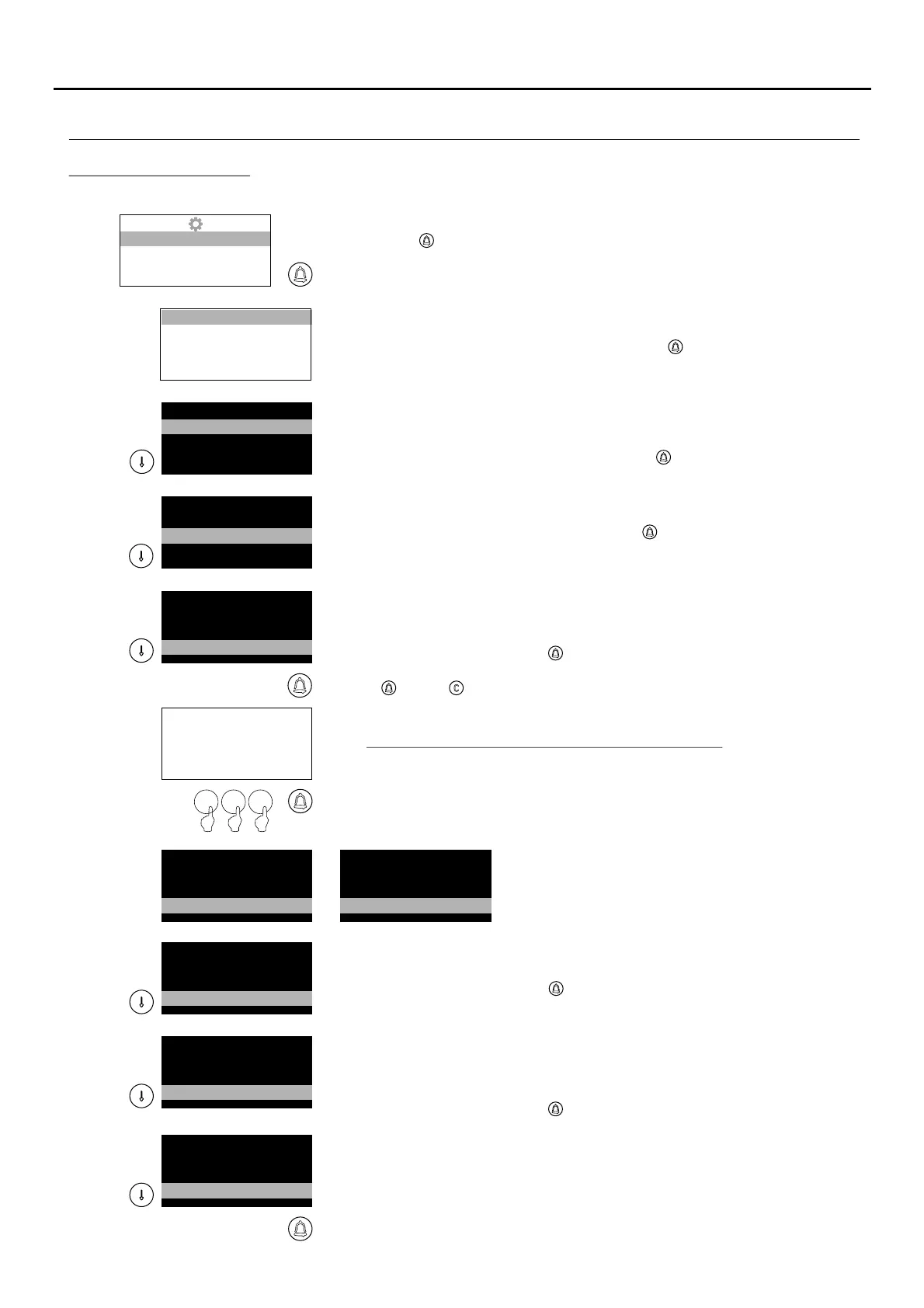

To access the configuration menu, follow the steps described on p. 1 and17
press when the SYSTEM CONFIG message lights up.
Enables the language for on-screen messages and configuration menus to
be selected. To change the language, press to find the correct language.
Determines whether the door panel is master or slave. Each system must
have only one master door panel; the others must be slaves. In systems
with a general entrance door panel, set one door panel from each building
as the master. To change the value, press .
( Cod. )Gtwin system see "TGtwin Manual Sistema" 50122345 .
If it is a general entrance door panel in a residential complex, select the
option YES. To change the value, press .
( ).Vista Plus and Gtwin system without function
Determines the building code. In buildings with more than one door panel,
set the same code for all of the panels; in systems with a general entrance
door panel, set code 0 for the general entrance door panel and a di ferentf
code for each inner door panel (between 1 and 255).
To change the value, press and the message ENTER VALUE will appear;
enter the building code using the numeric keypad and confirm by pressing
. Press to restore the previous value.
Note: To enable the guard unit to identify the general entrance door panel
making the call, consult our technical support services.
With EL632 Gtwin (Gtwin system) sound module,
s 0 3et a code from to
for master door panel r from to for slave door panelo 0 31 .
There must not be two master door panels with the same ID.
In case of slave door panel, the ID must be the same as the backbone ID
configured on the riser multiplexer "MC-GTWIN" if present, .
( ).Vista Plus system without function
0 1 5
Determines whether the door panel is an electronic audio or video door
entry system.
To change the value, press . (Gtwin ).system without function
Enables calls made from the door panel to be initially directed to the guard
unit (if any).
For the function to take effect, the guard unit needs to have the door panel
capture function activated.
To change the value, press .
Enables calls made from the door panel that go unanswered and are not
captured by the guard unit to be diverted to a second monitor in the
system. The monitor's call code must be indicated.
Note: If configured as a general entrance door panel, the call code is
composed of the inner building code and three-digit monitor address; if not
configured as a general entrance door panel, only the three-digit monitor
address needs to be entered.
GENERAL PANEL
DIRECCIÓN PLACA
LANGUAGE
MASTER PANEL
PANEL ADDRESS
GENERAL PANEL
015
LANGUAGE
MASTER PANEL
*
*
*
*
*
Continued overleaf
AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED PANEL WITH DISPLAY
