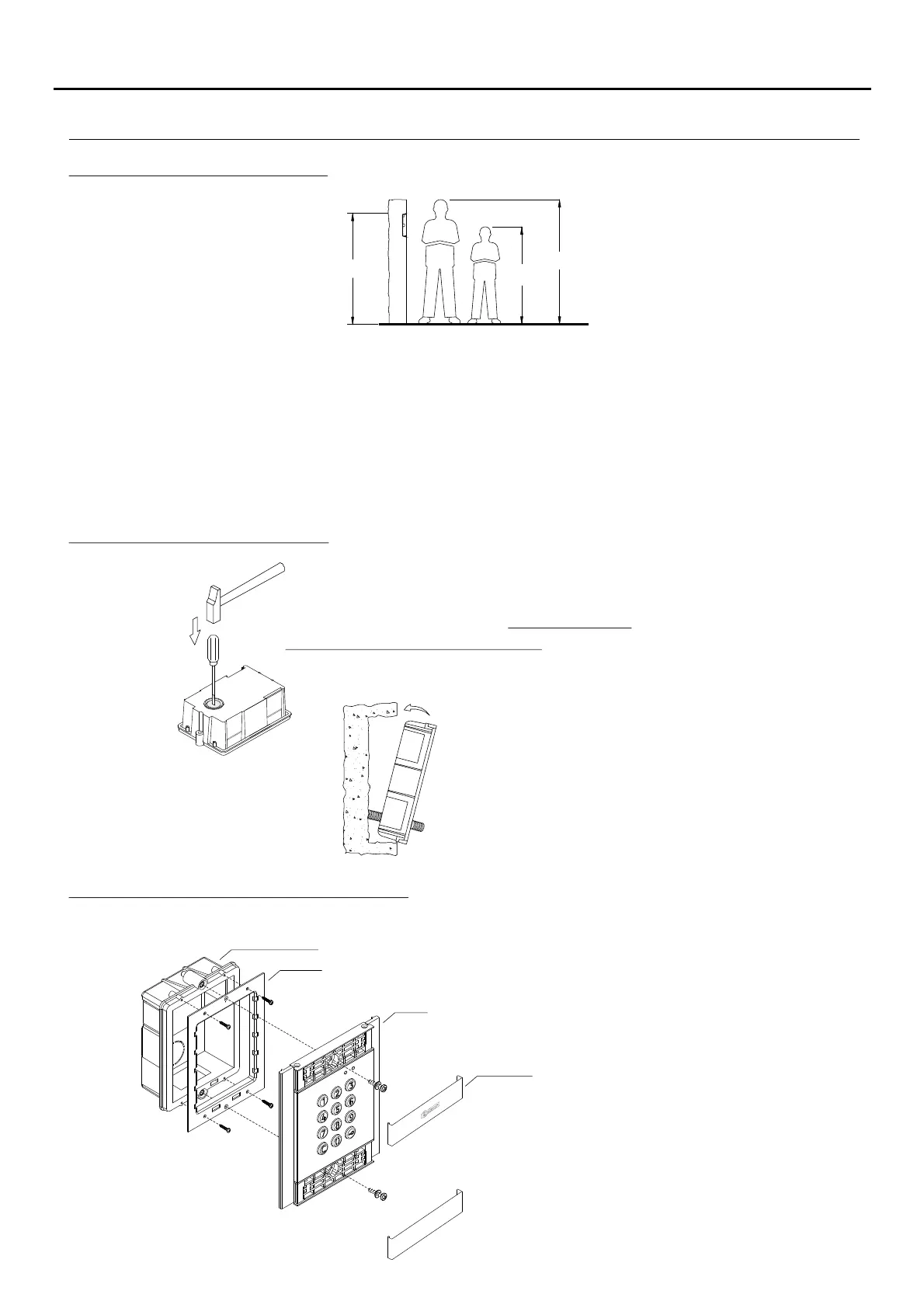

DOOR PANEL INSTALLATION
7
Location of the embedding box:
1650
1850
1450
Make a hole in the wall so that the top of the module is located at a height of 1.65m.
Hole dimensions:
.NCEV-90CS embedding box: 99(W) x 13 .5(H) x (D) mm2 56,5
The module has been designed to withstand all environmental conditions. We do however recommend
taking extra precautions to prolong its life (shields, covered areas, etc.).
Positioning the embedding box:
Break through the hole to allow the entry of the cable
into the bottom of the embedding box.
Pass the cable through the hole made
in the embedding box.
Embed the box and ensure that it is level and flush.
Once embedded, remove the protective stickers
from the screw holes
Once the wiring work has been completed,
secure the frame and panel to the embedding
box with the screws provided.
To complete the fitting of the panel, attach the
clip-on covers by positioning one end and
then applying slight pressure to the other end
until they clip into place.
Embedding box
.
Frame.
Panel.
Clip-on covers.
Securing the frame and closing the panel:
AUDIO AND VIDEO DOOR ENTRY SYSTEM - ACCESS CONTROL
