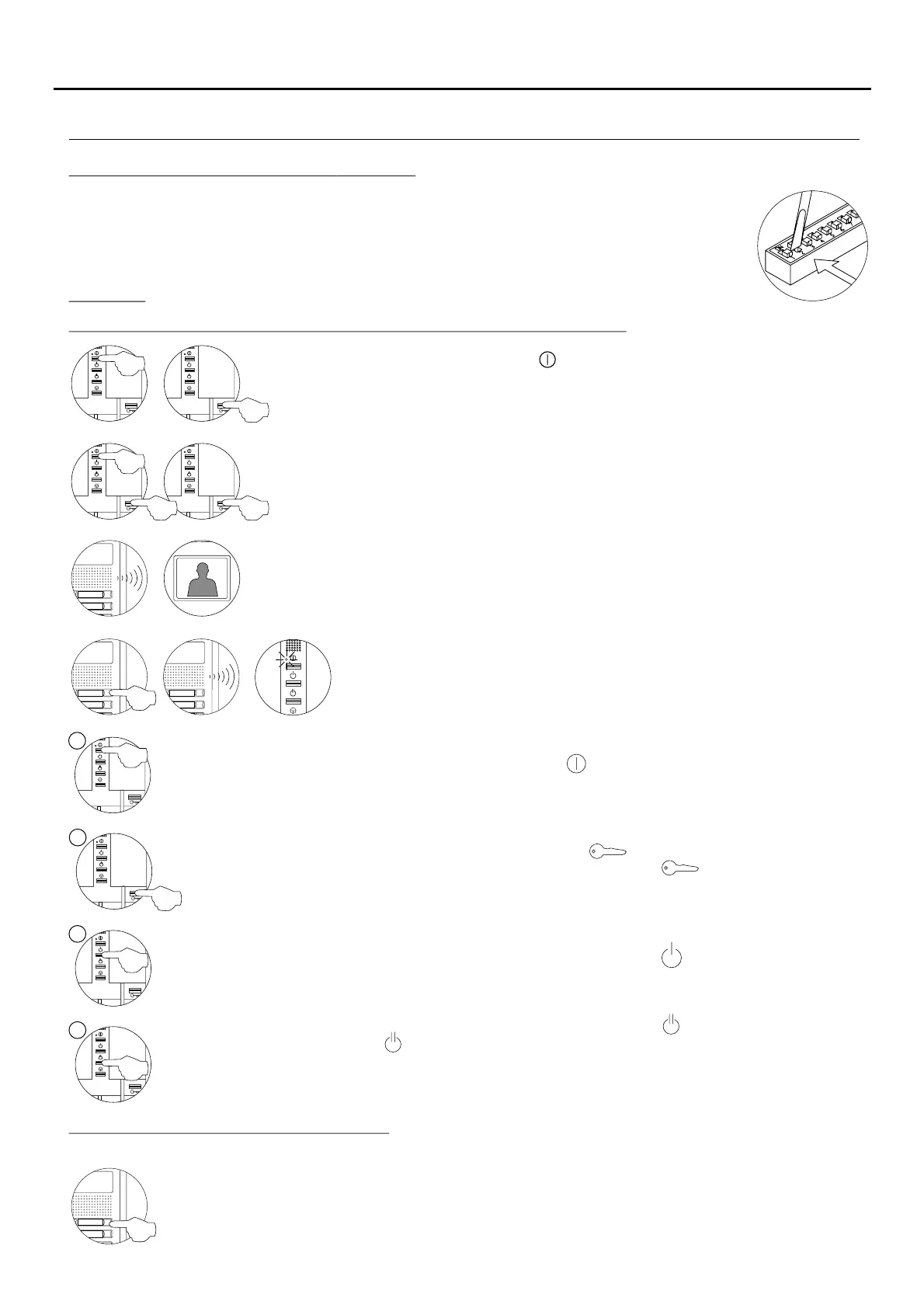

PROGRAMMING THE MONITORS
Locate the SW2 DIP switch situated on the top left-hand side of the back of the EL632 PLUS module andP/T
set number 2 to ON. The door panel will reproduce a sound to advise that the system has entered into
programmingmode.
In systems with more than one door panel, the programming process shall be done on the master door
panel only.
Important: .To perform this programming, the monitor's SW2 DIP switches should be set to OFF
Switch off the monitor to be programmed One long press for 3 seconds, turns the monitor(
O O )n or ff . Once the telephone is off, press the door release push button.
With the door release push button pressed, switch on the monitor.
To show that the system is ready for programming, the door panel will reproduce a sound
and the picture will appears on the monitor. At this moment, the door release push button
can be released. Lift the handset to establish audio communication with the door panel.
Press the door panel push button that will call this monitor.
At this moment the door panel will reproduce a sound and the monitor led will
blink .red
Each apartment must only have one master unit; if there are parallel units, whether monitors or telephones, they must be
configured as slaves.
Make a call to check that the monitor has been successfully programmed. Programme the other
telephones in the same way.
Once the programming has finished, set the programming switch to OFF. If this is not done, the door
panel will emit tones to indicate that the system is still in programming mode.
To programme the monitor from a general entrance door panel (if any), see p. .46
45
AUDIO AND VIDEO DOOR ENTRY SYSTEM - ACCESS CONTROL
P
S
SI
SV
To programme the monitor as , press button once, and the status LED will blinkSlave 1
green once. Continue successively to , pressing button four times, with the statusSlave 4
LED blinking green four times.
To programme the monitor as , press button and the status LED will blinkSlave with intercom
green once.
To programme the monitor as , press button for 3 secondsMaster .
To programme the monitor as , press button and the status LED will blinkSlave without video
green once. If button is pressed again, the monitor will return to being programmed as Slave
with video, and the status LED will blink green twice. The door panel video will be displayed
during a call depending on whether the monitor has been programmed as: Slave with video or
Slave without video.
