DESCRIPTION OF THE DISPLAY MODULE

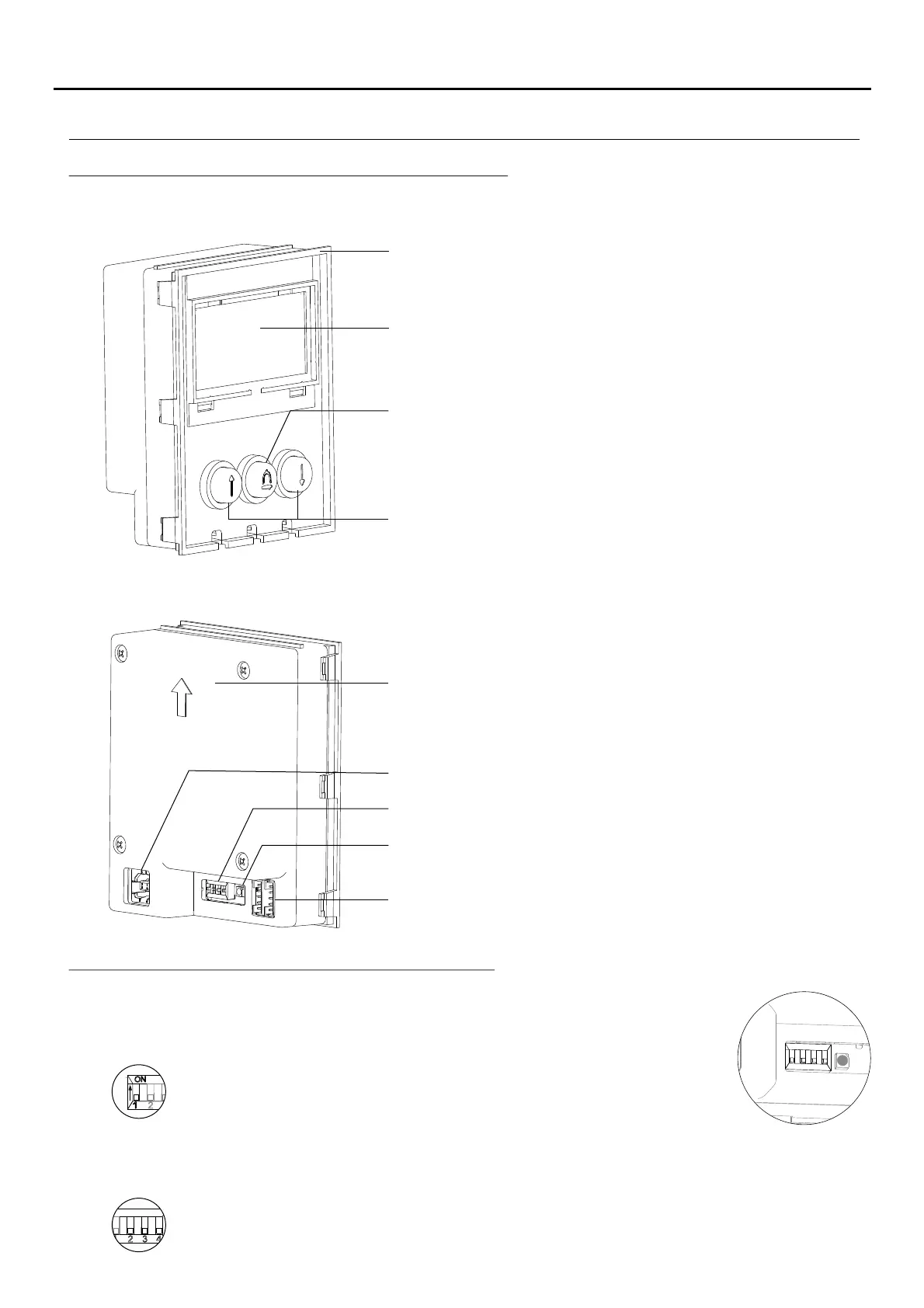

Description of the N3403/AL - NX3403 display module:
Front.
Back.
USB connector.
OLED screen.
Sw1 DIP switch.
Nexa BUS connectors
USB connection LED indicator.
Bell button.
Selection buttons
Description of the display module's SW1 DIP switch:
The SW1 DIP switch is located at the bottom on the back of the module.
ON
Use to reset the special administrator PIN to the factory code (see p. 1 ).16
Proceed as follows: Firstly, set dip switch 1 to ON, the module will show the
message RESET PIN, and then set the dip switch to OFF (the pin has now been
reset to the factory code). Bear in mind the number of digits in the configured
code (see p. 1 ). If the module was locked during this process, it will also unlock21
the display module.
Dip switches 2, 3 and 4 have no function.
1 2 3
ON
1 2 3 4
ON
AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED PANEL WITH DISPLAY
