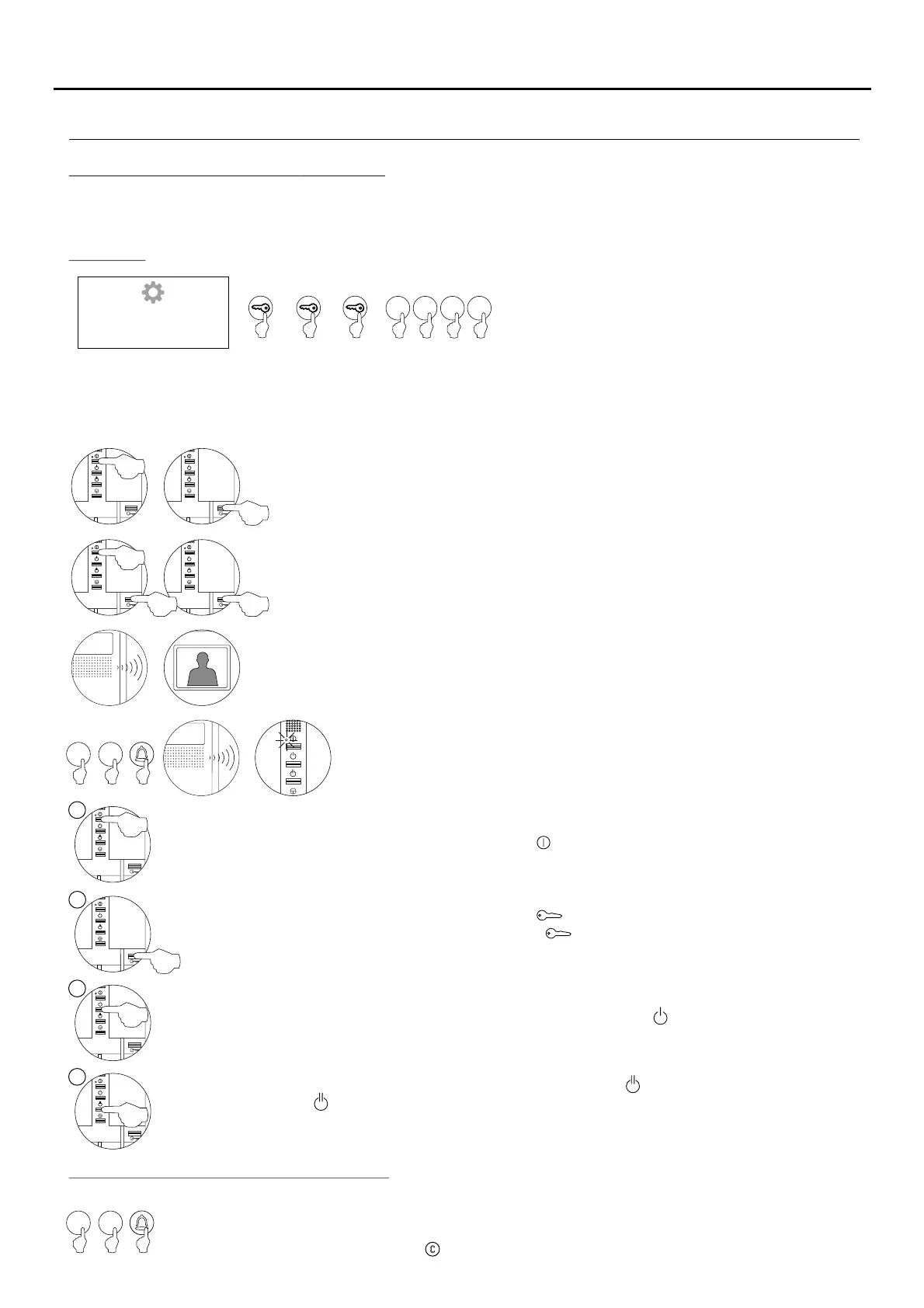

PROGRAMMING THE MONITORS
If it is a general entrance door panel in a residential complex, only programme the monitors from their inner door panels, as
indicated in the instruction manuals supplied.
If it is an inner door panel ina residentialcomplex or a door panel for a single building, programme the monitorsas shown below.
Important: .To perform this programming, the monitor's SW2 DIP switches should be set to OFF
Switch off the monitor to be programmed.
Once the telephone is off, press the door release push button.
With the door release push button pressed, switch on the monitor.
To show that the system is ready for programming, the door panel will reproduce a sound
and the picture will appears on the monitor. At this moment, the door release push button
can be released. Lift the handset to establish audio communication with the door panel.
Enter the code of the monitor to be programmed and then press the bell button.
At this moment the door panel will reproduce a sound and the monitor led will
blink.
01
135
To enter configuration mode, press the key button
three times and then enter the secret administrator
pin (factory code 2718) as described on p. 1 .17
CONFIGURATION
2 7 1 8
****
Each apartment must only have one master unit; if there are parallel units, whether monitors or telephones, they must be
configured as slaves.
Make a call to check that the monitor has been successfully programmed. Programme the other
monitors in the same way.
After programming, exit by pressing .
01
AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED PANEL WITH DISPLAY
o programme the monitor as press button for 3 secondsMaster,
.
M
S
SI
SV
To programme the monitor as , press button once, and the status LED will blink green once.Slave 1
Continue successively to , pressing button four times, with the status LED blinking greenSlave 4
four times.
To programme the monitor as , press button and the status LED will blinkSlave with intercom
green once.
To programme the monitor as , press button and the status LED will blink greenSlave without video
once. If button is pressed again, the monitor will return to being programmed as ,Slave with video
and the status LED will blink green twice. The door panel video will be displayed during a call depending
on whether the monitor has been programmed as: Slave with video or Slave without video.
(1)
Bear in mind the number of digits in the configured code (factory setting 2718 = 4).
(1)
rogramming from coded module:Important: Enter p
- With EL632 PLUS sound module V03 or later / EL632 PLUS P/T with V05 or later.
- With N3301/AL or NX3301 V03 or later.access control module
- N3403/AL NX3403 V05 y posterior.With or display module
