DESCRIPTION OF THE SOUND MODULE
AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED PANEL WITH DISPLAY

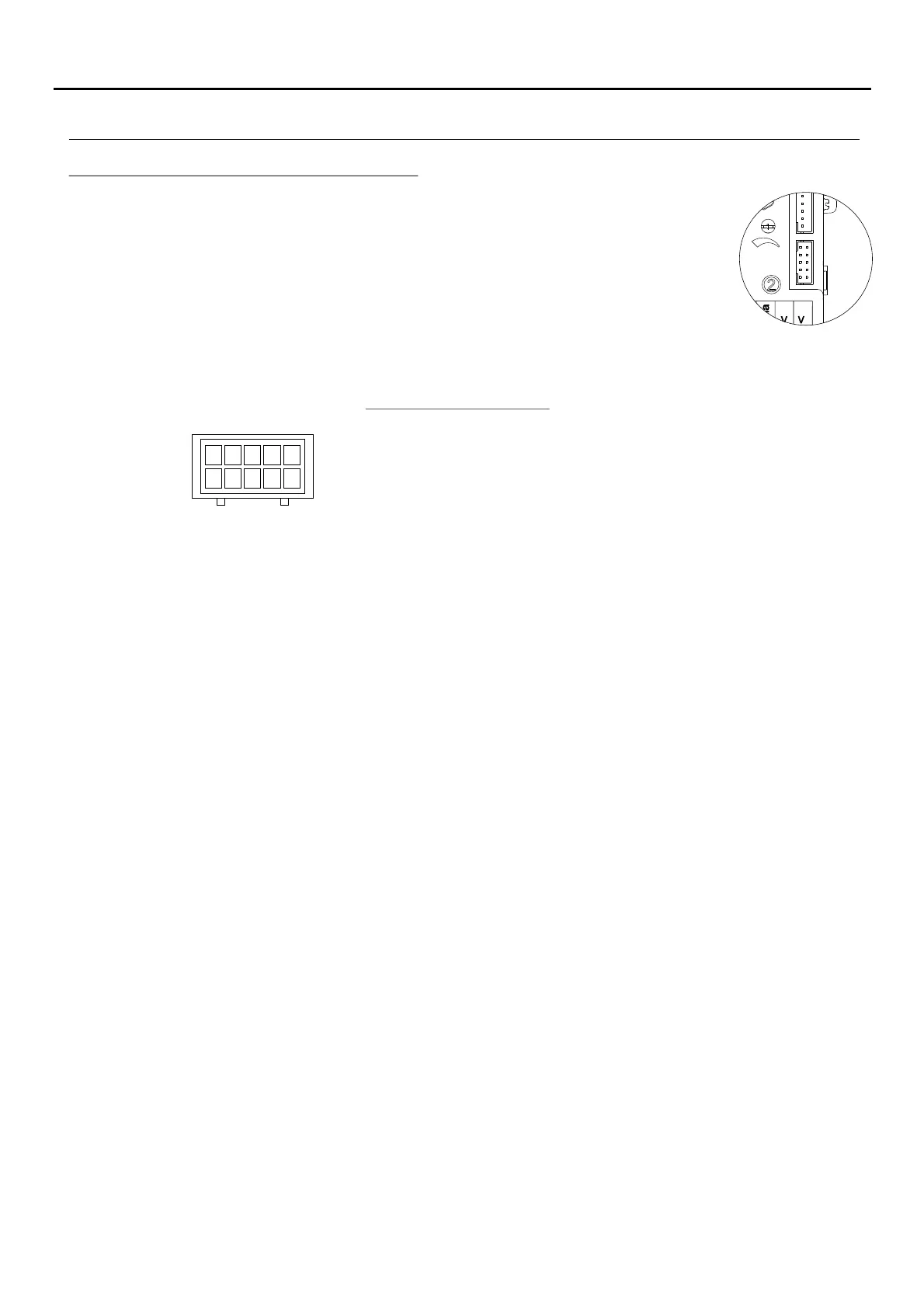

Description of the CN3 function connector:
The CN3 function connector is located on the top left-hand side of the back of the sound module.
Connect the cable supplied with the module to perform the following functions:
ð“AP” function: Activates the “CV1” and “CV2” lock release relay, timed activation time between 0
and 99 seconds through the SYSTEM CONFIG. menu: DOOR OPEN TIME (p. 1 ). For more21
information, see the manual supplied with the sound module.
ð“ICO” function: Busy channel indication is carried out with the “ICO” and “+12” terminals.
ð“Handicap” function: FDI voice module (France). The connector includes all wires for connection. For more
information, see the manual supplied with the sound module.
10
1
9
2
8
3
7
4
6
5
C 3N top view
Description of the CN3 connector
1 Grey (-) Negative.
2 (+12) .
Brown 12Vdc for continuous lock release activation
3 White (ICO) .Busy channel indicator
4 Yellow (AP) .External button to activate door release
5 Pink (+H) .To activate additional lighting
6 Blue (OP) Handicap.
7 Orange (SC) Handicap.
8 Green (ALM) Handicap.
9 Red (PDB) Handicap.
10 Black (-) Negative.
