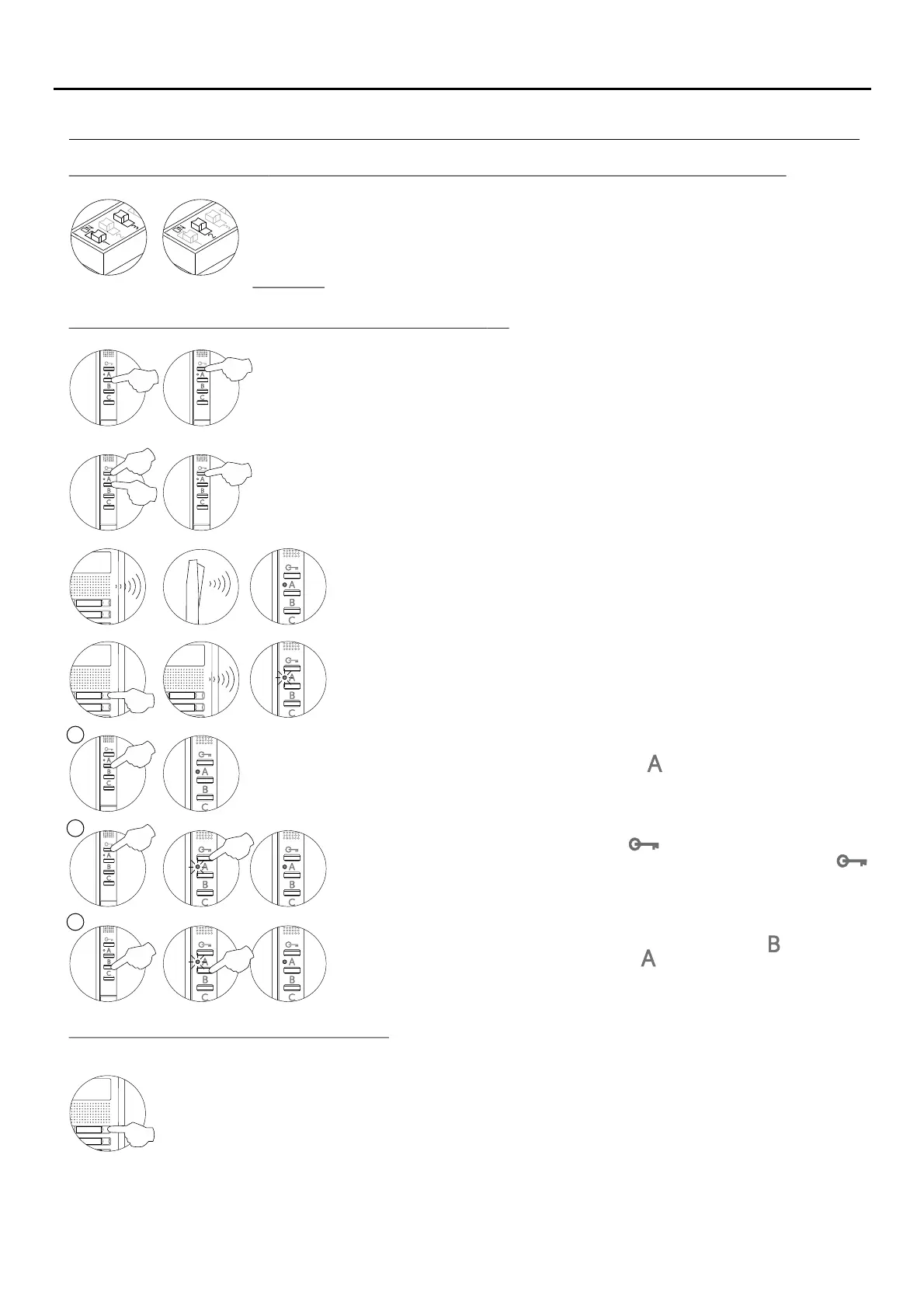

Programming T-540 Plus telephones from a general entrance door panel (SW1-1 ON):SE
PROGRAMMING THE TELEPHONES - GENERAL ENTRANCE DOOR PANEL ONLY
To programme the telephone from a inner door panel, see p. 8.4
49
L
ocate the SW2 DIP switch on the general entrance door panel situated on the top left-hand side of
the back of the sound module. With switch 1 OFF and switch 3 ON, set switch 2 to ON: the general
entrance door panel will emit a tone indicating that ithas entered programmingmode.
In systems with more thanone door panel, only carry outthis procedure on the main door panel.
Important: .To perform this programming, the 's SW DIP switches should be set totelephone 1 OFF
AUDIO AND VIDEO DOOR ENTRY SYSTEM - ACCESS CONTROL
Each apartment must only have one master unit; if there are parallel units, whether monitors or telephones, they must be
configured as slaves.
Make a call to check that the telephone has been successfully programmed. Programme the other
telephones in the same way.
Once the programming has finished, set the programming switch to OFF. If this is not done, the door panel
will emit tones to indicate that the system is still in programming mode.
Press the button of the door panel that will call this telephone.
At this moment, the door panel and handset will emit a number of tones (the
LED on the telephone will blink red).
To programme the telephone as , press button and the LEDSlave + Intercom
will blink (green) once. Then press button for 3 seconds (the telephone's
LED will illuminate red).
M
S
SI
Switch off the telephone to be programmed.
Once switched off, press the door release button.
While keeping the door release button pressed, switch on the telephone.
To show that the system is ready for programming, the door panel and the
telephone handset will emit a number of tones (the LED on the telephone will
illuminate red), enabling the door release button to be released. To establish
audio communication with the door panel, lift the handset.
To programme the telephone as , press button for 3 seconds (the telephone'sMaster
LED will illuminate red).
To programme it as , press button once, and the status LED willSlave 1
blink (green) once. Continue successively to , pressing buttonSlave 4
four times, and the status LED will blink (green) four times.
