80
Programming fields:
Continued from previous page

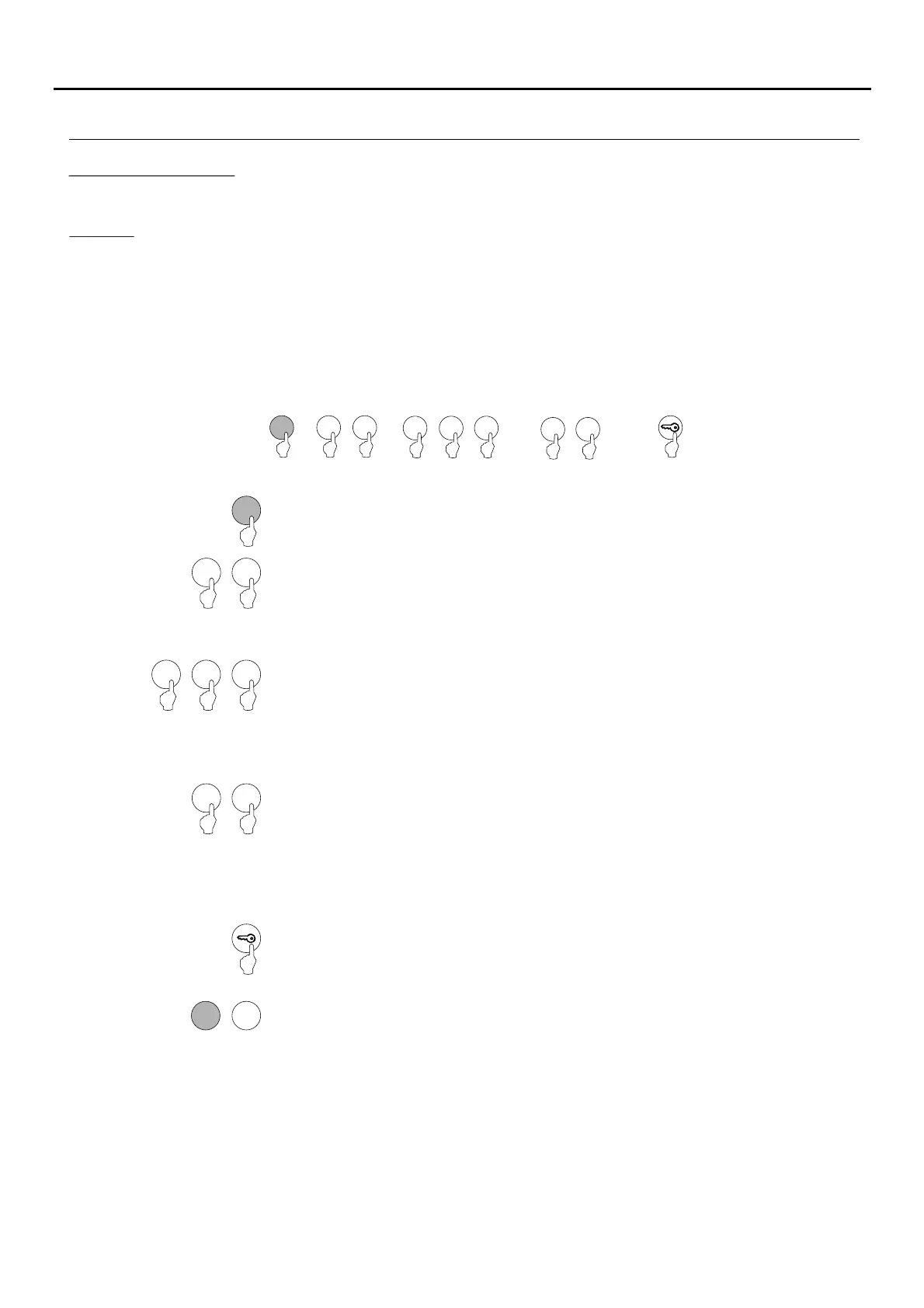

Field “5”: Configuring the external buttons.push
5
Press “5” to select field “5”.
Steps: Field + button + button mode + activation time + key button.push
6 C
or
( 1)Step
( 6)Step
Set the external button to select for configuration. Enter one of the following options:push
"1" : Select external button PL1.push
"2" : Select external button PL2.push
Allows external buttons PL1 and PL2 to be configured with the following modes:push
-Allows the button to: Always be enabled or, through button codes CP1 or CP2, enable/disable the functioning of the
button.
-Allows an activation time for external buttons PL1 and PL2 of between “01” and “99” seconds for the relay 1 andpush
relay 2 outputs respectively. Only takes effect if the relay output of the external button has been configured inpush
impulse mode (see p. , “step 3”).79
Note: External buttons PL1 and PL2 activate relays 1 and 2 respectively.push
2
1
( 3)Step
Set the push button mode selected in step 2.
Enter one of the following options:
"0" : Always enabled.
"1" : Enable/disable function with the CP1 button code.push
"2" : Enable/disable function with the CP2 button code.push
( 5)Step
Press the key button to finish programming the field.
Note: It is not necessary to press the key button if it has already been pressed in step 4.
Then press the number of the next field to configure or press the C button (cancel) to exit
programming mode.
5
0 1
or
2
or
2
1
( 2)Step
0
or or
1 2
or
0 1
or
( 4)Step
Set the activation time for the external button selected in step 2. Only takes effect ifpush
the relay output has been configured in impulse mode (see p. , “step 3”).79
Enter a value from “01” to “99” seconds or press the key button.
Note: If the key button is pressed, this field is set with a value of “03” seconds and the
programming of the field finishes.
1
0
*
( )
*
( )
AUDIO AND VIDEO DOOR ENTRY SYSTEM - CODED DOOR PANEL
PROGRAMMING THE DOOR PANEL
