Firmware Version 1.0.3.30

GXV3240 User Guide

Page 57 of 177

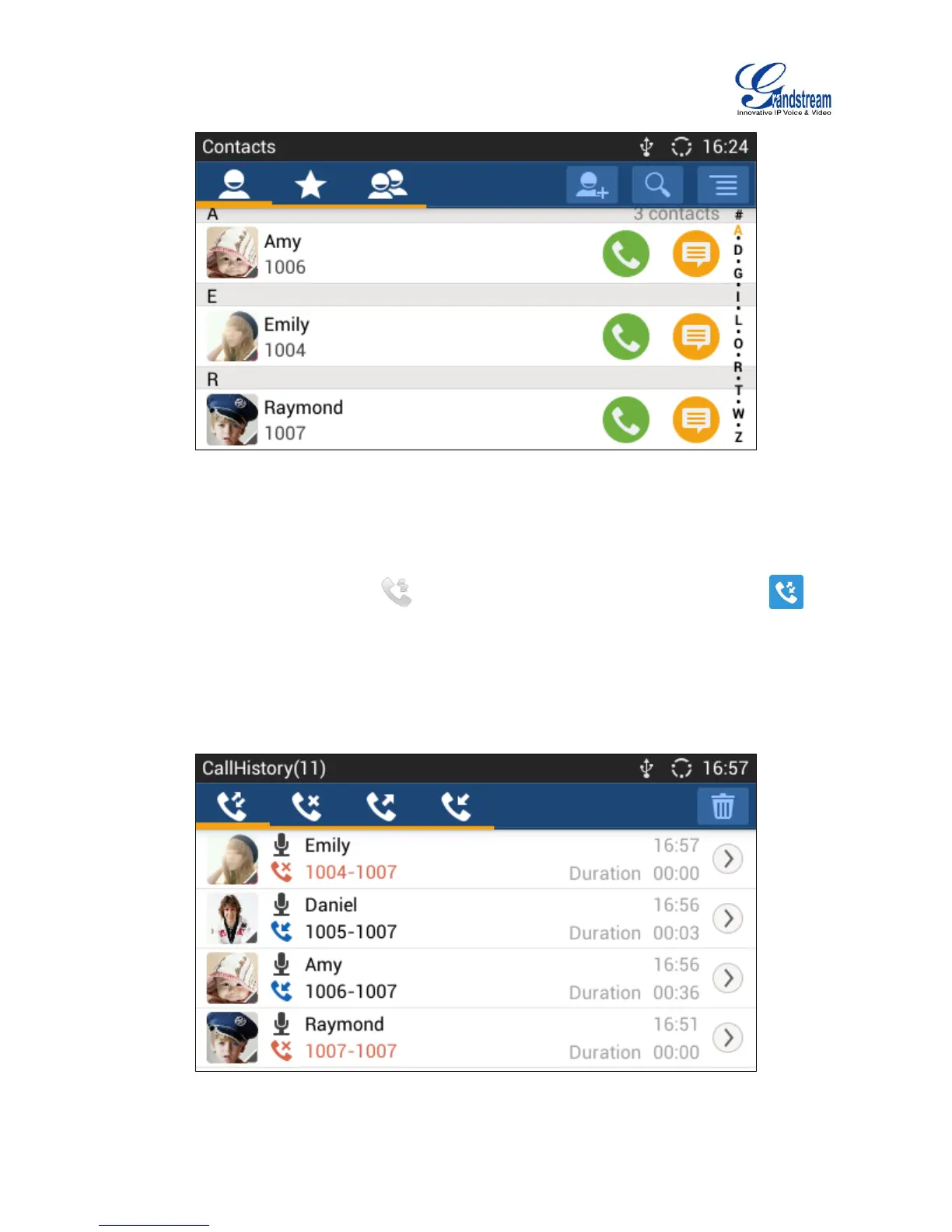

Figure 26 GXV3240 View Contacts

DIAL A NUMBER VIA CALL HISTORY

1. Access Call History by tapping on icon on the bottom of the idle screen, or selecting from

the phone Menu.

2. The LCD will display all call history types: "All", "Missed", "Outgoing" and "Incoming" calls.

3. Navigate in the call history list by selecting the call history category and sliding up/down on the

screen.

4. Tap on the entry to dial out.

Figure 27 GXV3240 Call History
