Firmware Version 1.0.3.30

GXV3240 User Guide

Page 79 of 177

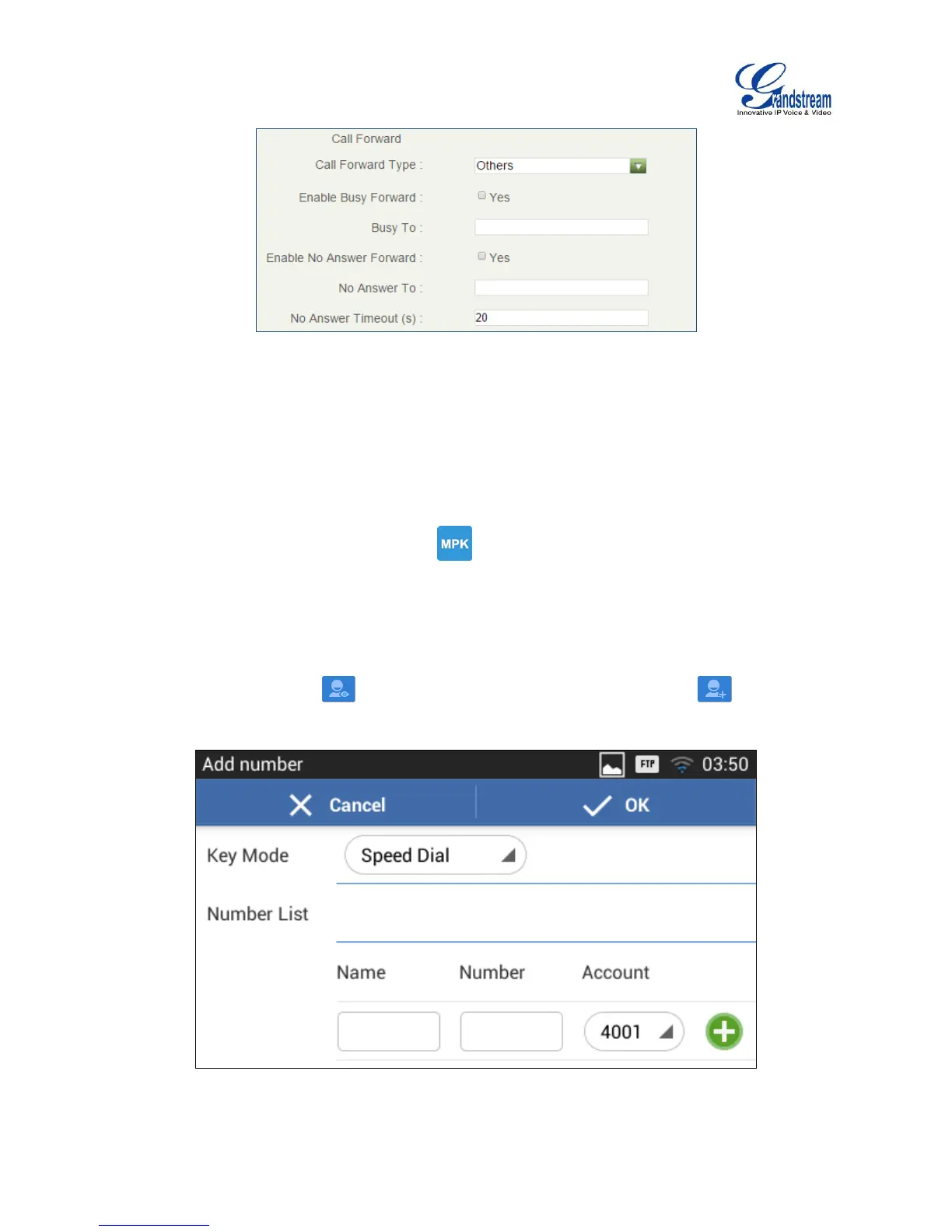

Figure 57: Call Forward - Busy/No Answer

MULTI-PURPOSE KEYS

The GXV3240 supports multi-purpose keys (MPK) without extension board (GXP2200EXT) by

downloading MPK app from GS Market. After downloading the MPK app, users could configure the MPK

from MPK settings via LCD Menu->MPK app , or via web GUI->Advanced Settings->MPK LCD

Settings.

To configure MPK via MPK app on the GXV3240:

1. Download MPK app from GS Market and install it to the GXV3240.

2. Open the MPK app. Tap on the upper right of the app and then tap on to start adding

MPK numbers.

Figure 58: GXV3240 MPK APP - Add Number
