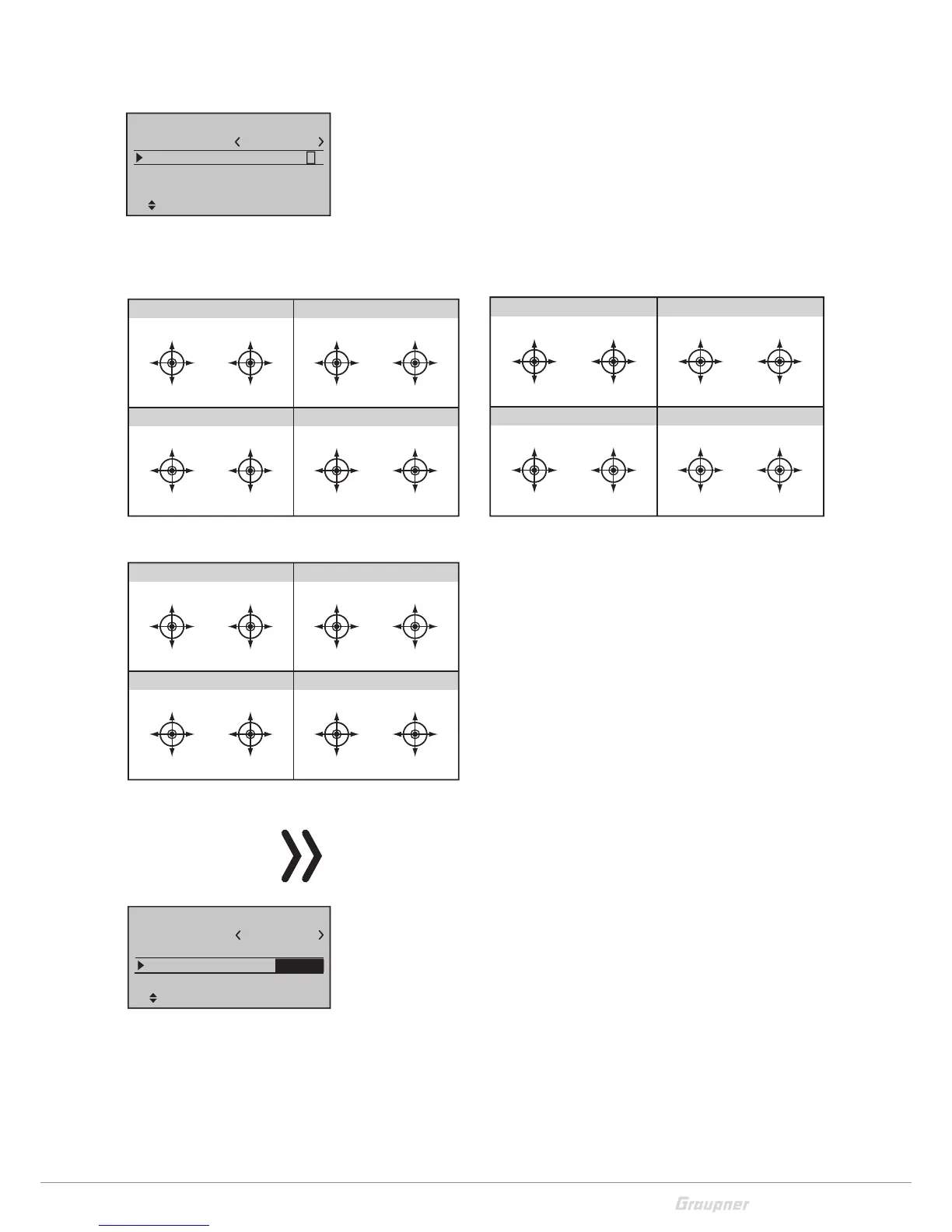

Control mode
In this function you can choose a control mode to be used for a
model memory. This function associates a control stick’s control
movement with a specific channel. Tap n the SET button, set the
desired mode through the selection buttons. In the "receiver assig-
nation" section you can see where each servo should be connected.
Binding type
Note
This menu line is only visible if there is no receiver bound to the
active model memory.
A binding type must be selected before the binding of a receiver. You
can select between "Global" and "Model".
"Global": All bound receivers react to the signals of each model
memory of the transmitter. For safety reasons, the model memory
can only be changed after switching the receiver off.
"Model": Bound receivers react only to the signals of the assigned
model memory. Accidental use through a non assigned model mem-
ory is not possible.
Mod. Name
Stick mode
1
Base setup model
SEL
GRAUBELE
n/a
bind
Module
HoTT
Rcv Ch Map n/a
R08
Fixed-wing model
Helicopter model / Copter model
Mod. Name
Control mode
1
Base setup model
SEL
GRAUBELE
n/a
n/a
Module
HoTT
Binding type
Model
Car / boat
MODE 2 (Throttle left)
Nick
Nick
Tail rotor
Tail rotor
Motor / Pitch
Motor / Pitch
Roll
Roll
Motor / Pitch
Motor / Pitch
Tail rotor
Tail rotor
Nick
Nick
Roll
Roll
Nick
Nick
Roll
Roll
Motor / Pitch
Motor / Pitch
Tail rotor
Tail rotor
Motor / Pitch
Motor / Pitch
Roll
Roll
Nick
Nick
Tail rotor
Tail rotor
MODE 1 (Throttle right)
MODE 3 (Throttle right)
MODE 4 (Throttle left)
MODE 2 (Throttle left)
Elevator
Elevator
Rudder
Rudder
Full throttle
Motor idle
Querruder
Querruder
Full throttle
Motor idle
Rudder
Rudder
Elevator
Elevator
Aileron
Aileron
Elevator
Elevator
Aileron
Aileron
Full throttle
Motor idle
Rudder
Rudder
Full throttle
Motor idle
Aileron
Aileron
Elevator
Elevator
Rudder
Rudder
MODE 1 (Throttle right)
MODE 3 (Throttle right)
MODE 4 (Throttle left)
MODE 2 (for/backward left)
left
right
forward/backward
forward/backward
forward/backward
forward/backward
left
right
forward/backward
forward/backward
left
right
forward/backward
forward/backward
left
right
MODE 1 (for/backward right)
MODE 3 (for/backward right)
MODE 4 (for/backward left)
