Receiver configuration
The servos must be connected to the receiver in the indicated
sequence. Outputs that are not assaigned are available. To change
the settings go to the “Model basic setting” menu and then the
"Receiver outputs" line.

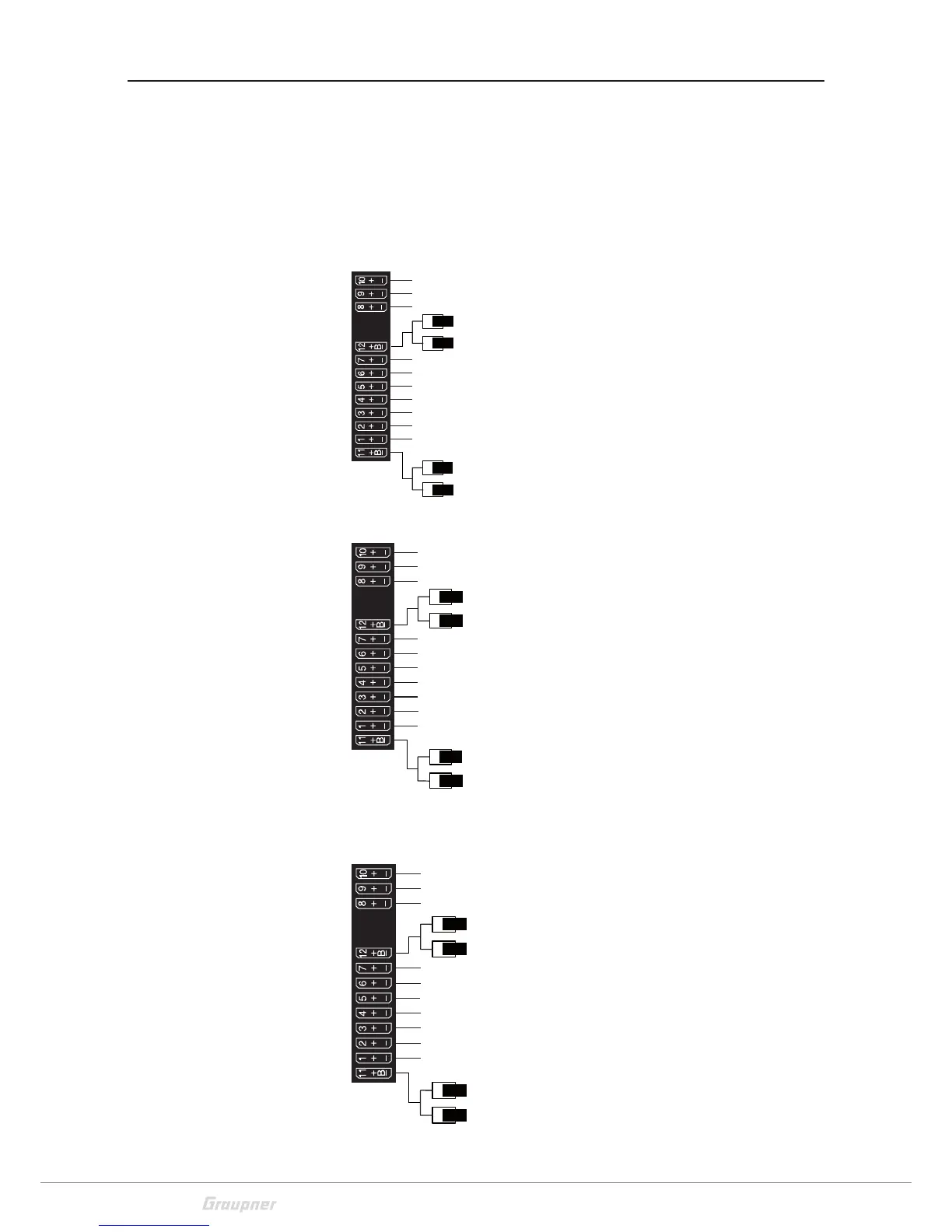

Fixed-wing models
Fixed-wing models with and without a motor with up to 4 ailerons
and up to 4 flaps and tail type "normal" or "2 elevator servos"
Tail type "V tail
Delta/flying wing models with and without a motor with up to 4
ailerons/elevators and 4 flap/elevator servos
receiver power supply
free or AILE2 left or special function
free or AILE2 right or special function
aileron or aileron left
free or special fucntion
receiver power supply
airbrake or engine servo or drive controller
aileron right or special function
flap or flap left
flap right or free or special function
free or FLAP2 left or special function
free or FLAP2 right or special function
elevator/rudder left
elevator/rudder right
receiver power supply
free or special function
free or special function
aile/elev left
aile/elev right
free or special function
receiver power supply
Airbrake or motor servo
or ESC for electric models
free or special function
fre or flap / elev left
free or flap / elev right
free or special function or flap 2 / elev left
free or special function or flap 2 / elev right
free or rudder
receiver power supply
free or AILERON2 left or special function
free or AILERON2 right or special function
rudder
AILERON or AILERON left
elevator or elevator1
free or 2nd elevator or special function
receiver power supply
Airbrake or engine servo or electric drive controller
AILERON right or special function
FLAP of FLAP left
FLAP right or free or special function
free or FLAP2 left or special function
free or FLAP2 right or special function
