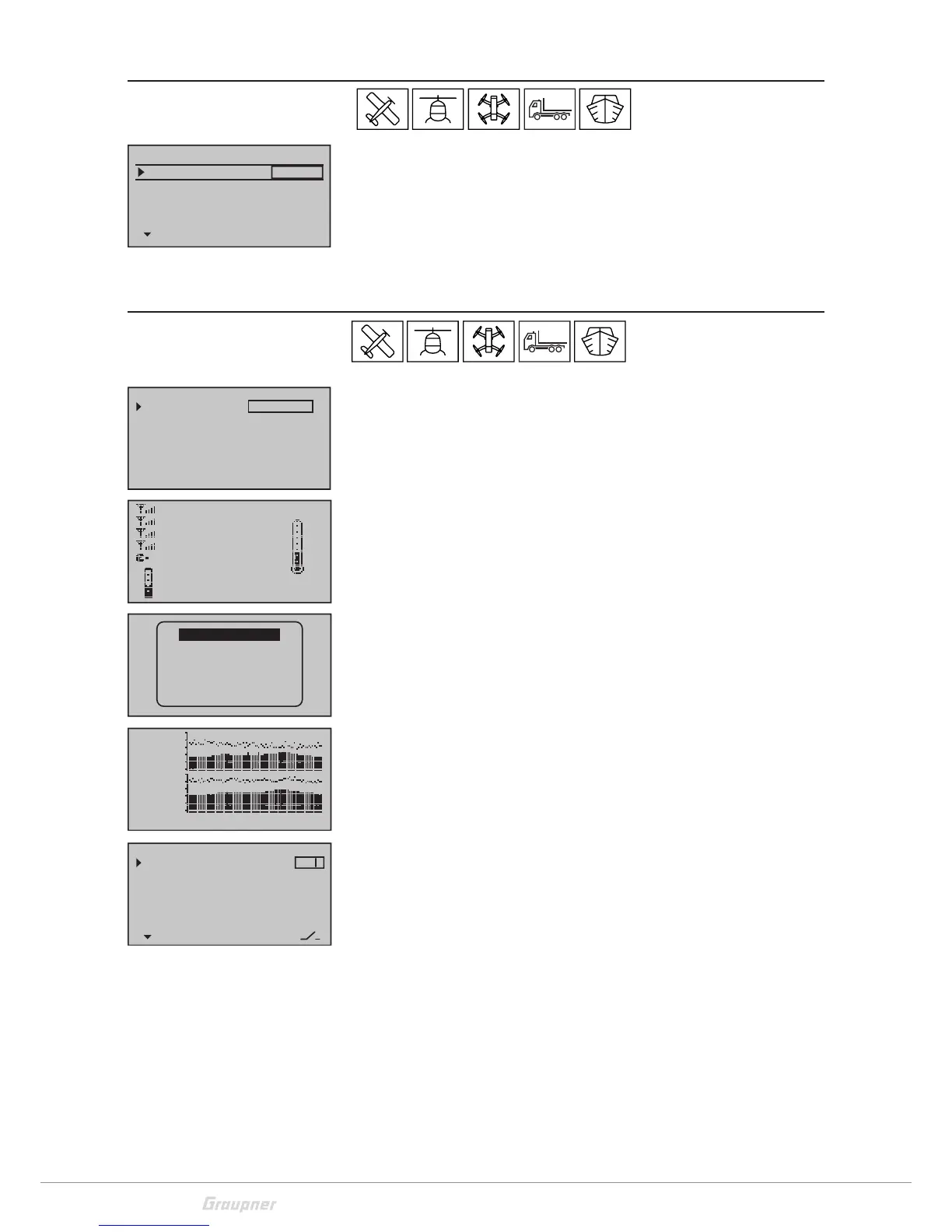

Trim memory
Storage of the trim position
In the left column (POS) the value of the trim is shown. Now tap the
SET button. The trim value is transferred to the memory. The trim
value is now displayed in the "SET" column on the right side. The bar
display in the main display shows again the center position.
To delete the stored trim value, tap the selection keys
t u or
on the selected line.
Telemetry
Through the telemetry menu, you can perform receiver settings in
real time. Displays and settings of optionally connected telemetry
sensors can be retrieved and programmed. The connection to the
receiver is maintained by the feedback channel of the HoTT receiver.
TEL.RECEI. - Here set from which receiver the telemetry data is to
be processed. Set the possible settings for the following menu item.
SETTINGS & DATAVIEW - If you select this item, you will open the
menus for settings of the receiver or the sensors connected. Select
the desired sensor or module through the selection keys . (See
the manual of the sensor or of the module)
SENSOR: List of the sensors connected and detected (only display,
no manual selection possible)
DISPLAY RF STATUS - Top row: Level of channels 1 … 75 coming
from the receiver of the 2.4 GHz band in dBm to the transmitter. Bot-
tom row: Level of channels 1 … 75 coming from the transmitter of
the 2.4 GHz band in dBm to the receiver.
SELECT ANNOUNCE - In the first line, assign a switch and set the
repetition time to start the voice output. In the next line "NEXT
ANNOUNCE" assign a switch to switch the announcements through.
In the "VARIO" line, assign a separate switch for the vario signals.
Select automatical (AUTO) or a specific sensor (GPS, EAM, GAM)for
the sounds.
Tap the SET button in the "TRANSMITTER, RECEIVER" line. In the list
that is now displayed, set which messages should be active for the
transmitter or receiver.
RX DATA - Here set how the transmitter responds to the receiver's
back channel (telemetry transmission). Use this function if the back
channel of the receiver is influenced by the back channel of another
receiver.
In the "ON" position the telemetry signals are processed continu-
ously. In the "1" position, the telemetry signals are processed with a
slight delay; the telemetry signals are processed in a very delayed
manner in position "10".
Trim memory
AILE
ELEV
RUDD
0% 0%
0%
0%
0%
POS SET
CH1 0% 0%
0%
Telemetry
SETTING & DATA VIEW
SENSOR
RF STATUS VIEW
VOICE TRIGGER
TEL.RCV
BIND. 1
RX DATA ON
ALARM SETTING
RX–S QUA: 100%
RX–S ST : 100%
TX–dBm: 33dBm
RX–dBm: 33dBm
RX–SPG.:4.8 TMP
V–PACK: 10ms
CH OUTPUT TYPE:ONCE
GENERAL MODULE
ELECTRIC AIR.MOD
VARIO MODULE
GPS
RECEIVER
ESC
RX–S QUA: 100%
RX–S ST.: 100%
TX–dBm: – 33dBm
RX–dBm: –33dBm
RX–SPG.:4.8V TMP
V–PACK: 10ms
CH OUTPUT TYPE:ONCE
M–RX V :4.6V +22°C
R100%
T –40
E 10
R –51
4.8Vc
S 90%
4.8Vm 0123456789ABCDE
VOICE TRIGGER
REPEAT 10SEC
TRIG
TRANSMITTER
RECEIVER
–––
7
VARIO AUTO
–––
