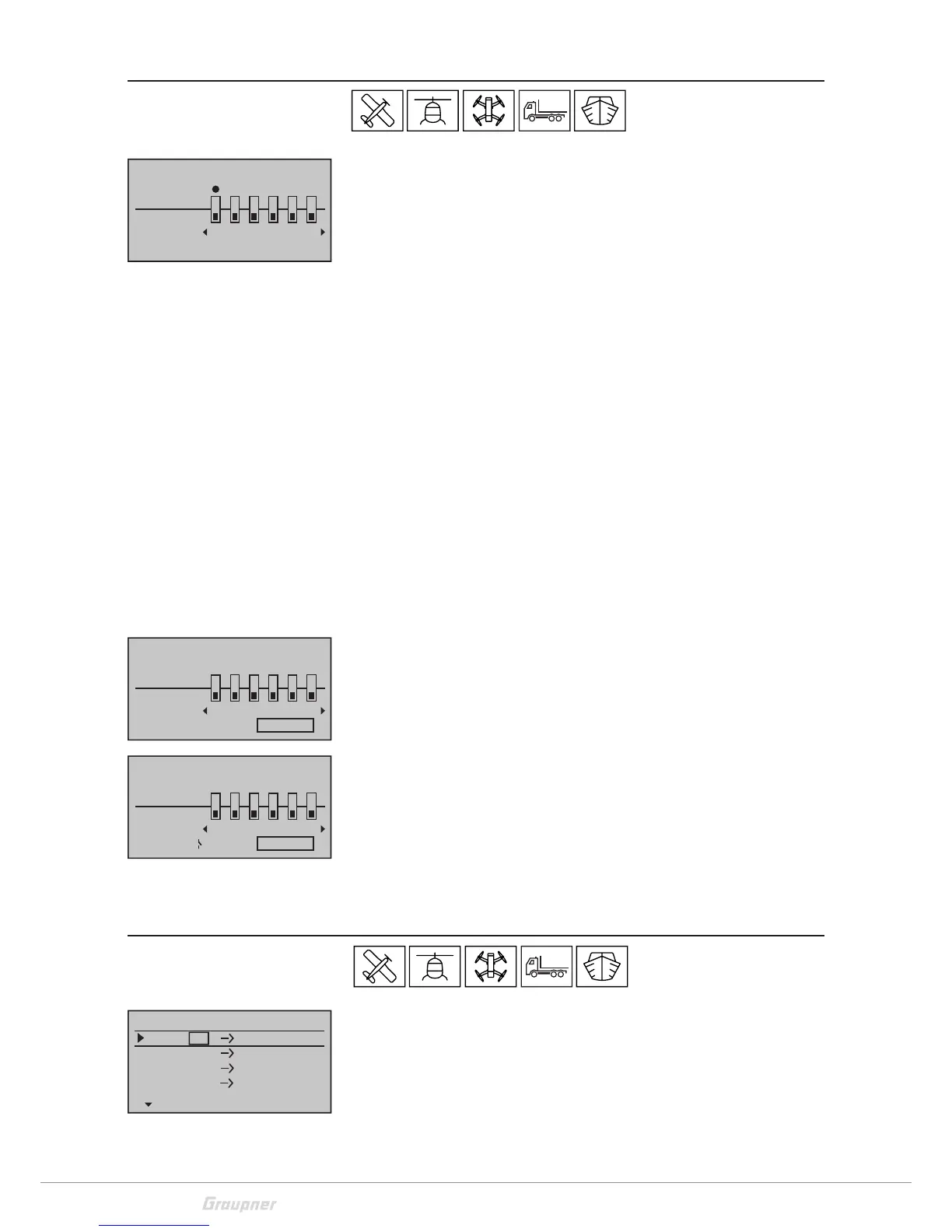

Trainer
In this menu set the functions for the teacher / student operation.
The operation can be wireless or wired with HoTT transmitters.
Please also observe the instructions of the pupil transmitter.
Connection through cable (DSC port):
Teacher function
Student transmitter: start a new model memory without pro-
gramming, select the mode setting.
Teacher transmitter: Select the channels to be handed over to the
student transmitter. If the model has 2 aileron servos, then only
channel 2 may be transferred. Channel 5 is already mixed through
the model type 2 AILE.
Select "NEXT" at the bottom left of the display and assign a switch to
transfer to the student.
Establish the cable connection with the DSC socket; observe the
instructions of the student transmitter.
In flight mode, the control can now be transferred to the student
through the assigned switch.
Wireless connection (HoTT system):
Teacher function
Student transmitter: start a new model memory without pro-
gramming, select the mode setting.
Teacher transmitter: Select the channels to be handed over to the
student transmitter. If the model has 2 aileron servos, then only
channel 2 may be transferred. Channel 5 is already mixed through
the model type 2 AILE.
Select "NEXT" at the bottom left of the display and assign a switch to
transfer to the student.
Binding the Pupil transmitter to the Teacher transmitter:
Immediately select "BIND" in the student display at the bottom right
Select "BIND" in the teacher display at the bottom right
Transmitter output
In this menu freely split the 16 control channels of the transmitter
to the outputs.
Select the desired channel and assign it to the output.
A control channel can also be assigned to multiple outputs.
T/P:Pupil
Pupil
Teacher
2 3
4
5
BIND:SW: –––
1
n/a
6
T/P:Pupil
Pupil
Teacher
8 9
10
11
BIND:SW: –––
7
ON
12
T/P:Teacher
Pupil
Teacher
8 9
10
11
BIND:SW:
7
ON
12
8

Tx Ch
Tx Ch
Tx Ch
Tx Ch
1
2
3
4
1
2
3
4
Output
Output
Output
Output
Tx. output swap
SEL
