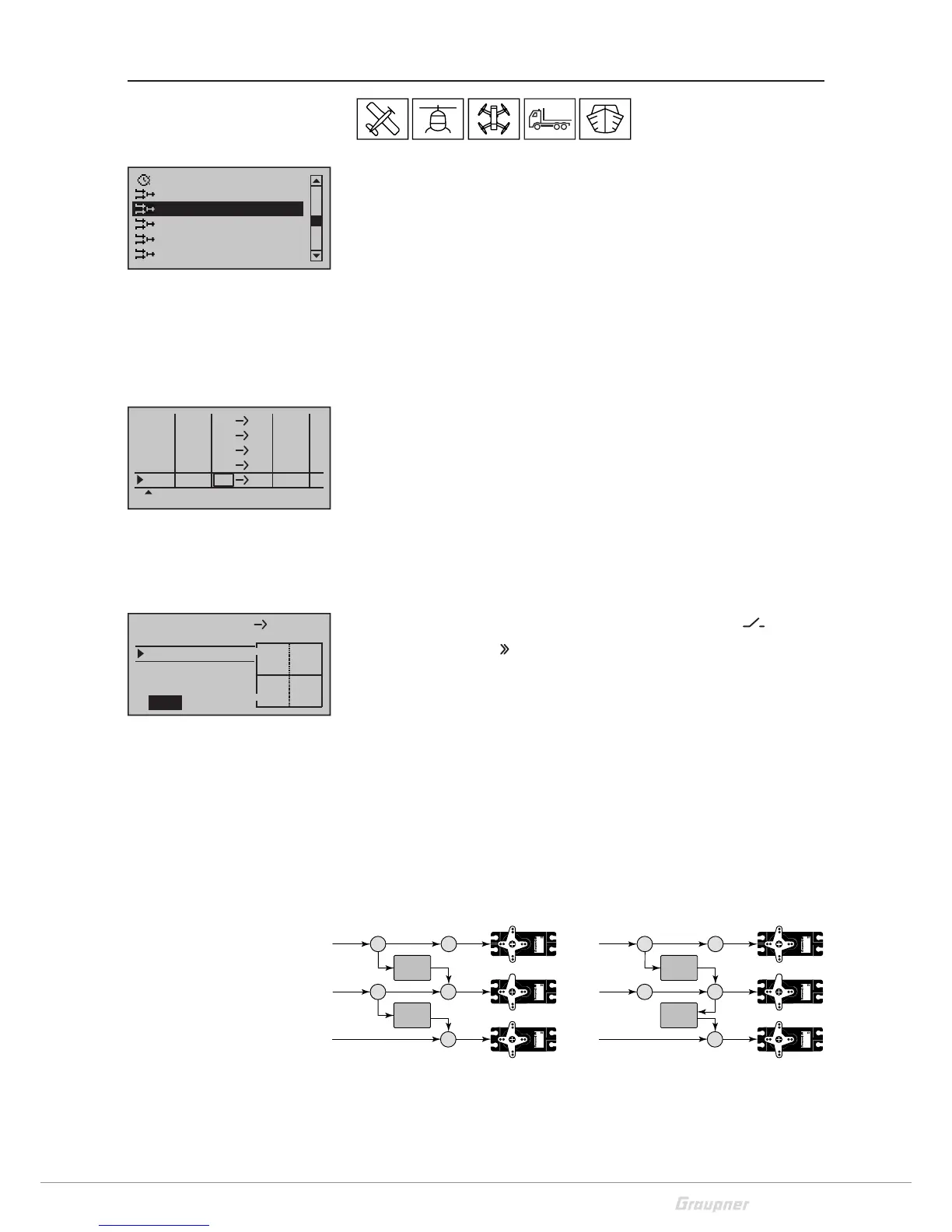

Free mixers
In this menu you can find free programmable linear and curve mix-
ers.
In each model memory there are eight available linear mixers with
the designation M1 to M8 and four curve mixers with the designa-
tion C9 to C12.
Mixer programming step by step:
1. Select the desired mixer
2. Tap the SER button, the field will be highlighted
3. Set the mixer input "From" though the selection keys
4. Tap the SET button, then change to the column "To" using the
selection keys
5. Tap the SER button, the field will be highlighted
6. Select the mixer output "To" with the selection keys.
7. Set the mixer type in the second "Type" column
• Tr = Trim
• P = Phase (only for model type "Heli")
• -> Series switch
8. Assign a switch or a control switch in the column "
"
9. In the column "
" define the mixer component and the mixer
offset in the following display page. The display page will be shown
only if the switch is assigned and actuated.
Possible settings in the columns
"Type"
Tr : This function can be selected only in the channels one to four.
here you can select if the mixer input trim also has to act on the
mixer output.
Tr -> : The trim acts also to the series switch
-> : Series switch of the mixers, example:
Without series switch With series switch
Phase timers
Wing mixers
MIX-only channel
Dual mixer
Free mixers
MIX active/phase
Ty p
fr
zu
M8
C9
C10
??
??
??
??
C11
C12
??
??
??
??
??
??
L.Mix1
0%
0%
0%
Offset
ASY
SYM
1
Mix input
3
6 6
7
Servo
4,8 V
C 577
Best.-Nr. 4101
Servo
4,8 V
C 577
Best.-Nr. 4101
7
8
Servo
4,8 V
C 577
Best.-Nr. 4101
MIX 1
MIX 2
6 6
7
Servo
4,8 V
C 577
Best.-Nr. 4101
Servo
4,8 V
C 577
Best.-Nr. 4101
7
8
Servo
4,8 V
C 577
Best.-Nr. 4101
MIX 1
MIX 2

GRAUPNER MC-28 Specifications

General

Proper use	Helicopter
Product type	Remote control
Product color	Black, Silver
Frequency band	2.4 - 2.484 GHz
Menu languages	DEU, DUT, ENG, ESP, FRE, ITA
Channels quantity	16 channels
Brand compatibility	Graupner
Throttle (TH) function	Yes
Compatible memory cards	MicroSD (TransFlash)
Number of memory records	120
Maximum operating distance	3000 m
Operating temperature (T-T)	-15 - 55 °C
Power consumption (charging)	400 mA
Operating voltage (max)	4.35 V
Operating voltage (min)	3.4 V

Weight and Dimensions

Depth	235 mm
Width	228 mm
Height	66 mm
Weight	1250 g
