GRAUPNER MC-28 Programming Manual

47 / 80
33028_mc_28_Teil2_jh

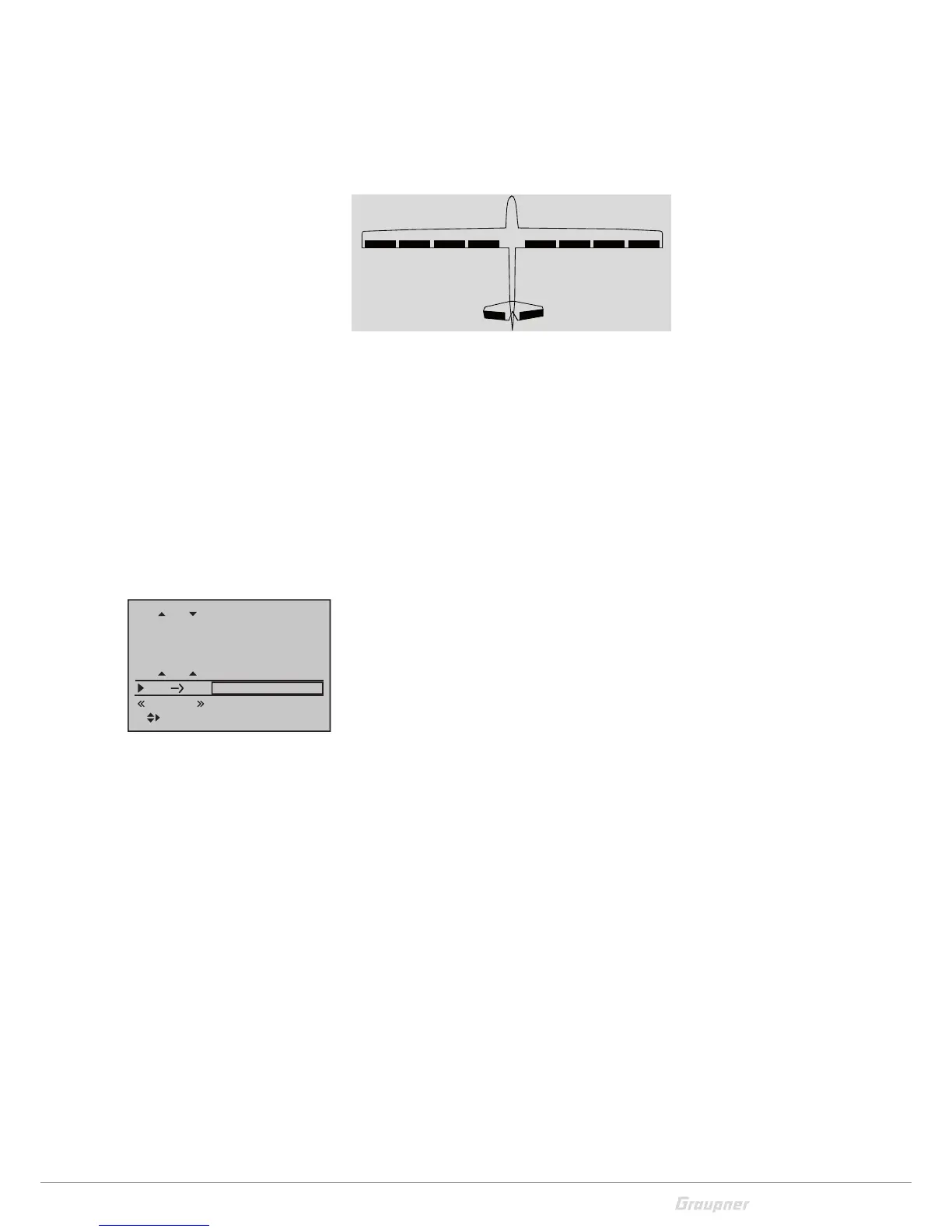

Model type: "4AIL 4FLAP"
If the servos are connected to the receiver as described in the sec-
tion "Receiver assignment" and if you have selected in the "Model
type" menu, the abbreviations "AILE", "AILE2", "FLAP" and "FLAP2"
refer to the following flaps.
With this setting, all options for the pair of ailerons are displayed.
The options of the pair of flaps are displayed a “step” to the right.
Move to the right to switch to the “FLAP” and “FLAP2” column.
Model types Delta-wing/Flying-wing with more than 2 rudders
The ailerons move normally if you have selected the control type
"Delta-wing/Flying-wing" and the number of control surfaces in the
line "Aileron/Flaps" of the "Model type" menu. The aileron move-
ment is enable by the elevator control stick, as little as the inner flaps
(FLAP) and FLAP2. The mixer "ELE -> FLAP" has a standard mixing
ratio set to 0% when more than 2 wing servos are selected in the
"multi-flap menu".
The desired elevator effect must be defined in the line "ELE -> FLAP".
Be sure to use the correct operation of up/down.
The submenu "Brake settings" is also suitable for setting a butterfly
function for delta-wing/Flying-wing models. Adjust of the deflec-
tions of the flap pairs AILE, AILE2, FLAP and FLAP2. The moments
generated by the arising of one flap pair are compensated by the
respective other flap pair. Thus, for example, a "low" effect of the
lowered flaps is opposed to compensate the "high" effect of the
raised aileron.
AI
left
AI2
left
FL
left
FL2
left
FL2
right
FL
right
AI2
right
AI
right
FL
0%
0%
FL pos.
EL FL 0%0%
0%
AI
Normal
Diff.
0%
AI Tr.
AI
+100%
+100%
