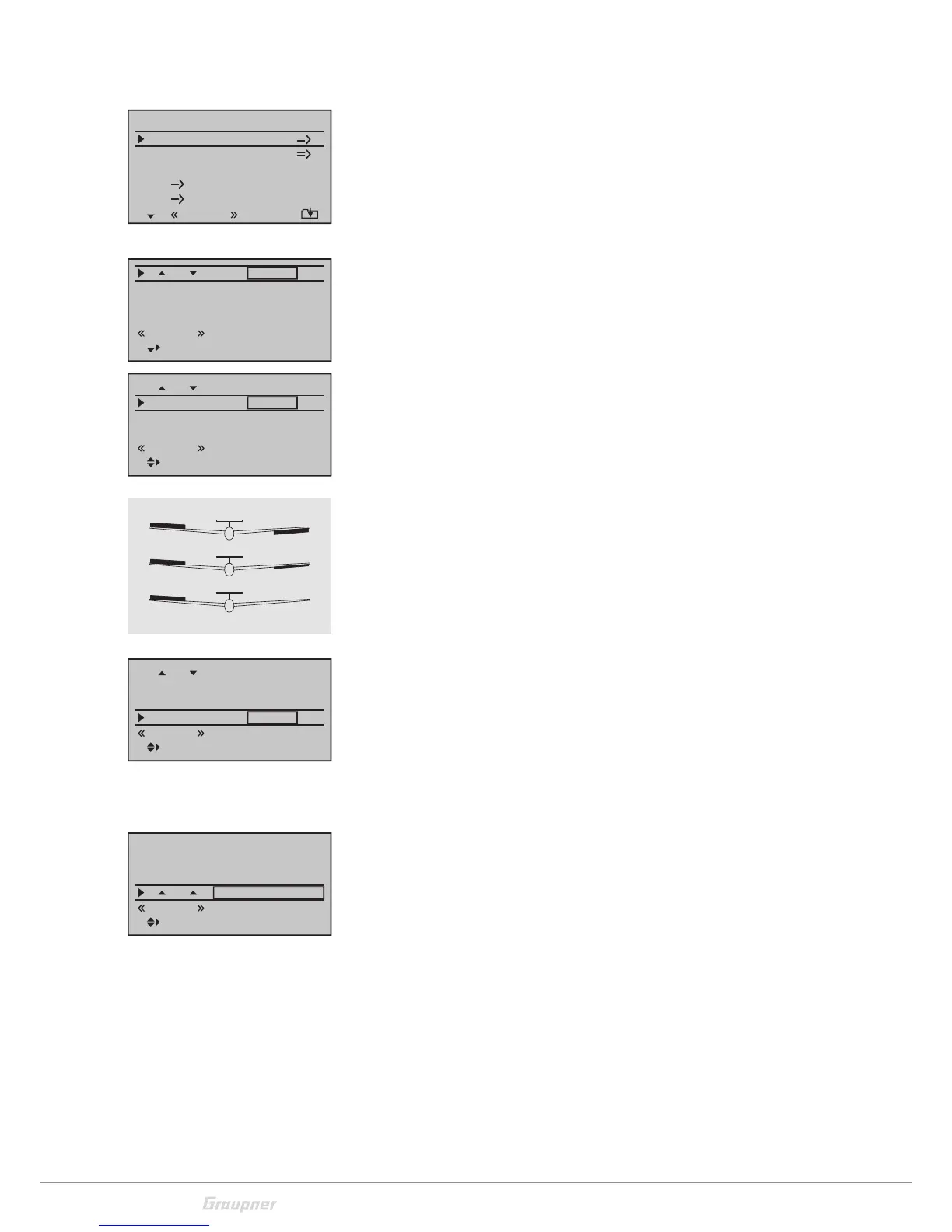

Multiflaps menu
This menu is only displayed if at least two ailerons and one flap or
more are selected in the "Model type" menu. The "AILE2" column
and the "FLAP" and "FLAP2" columns are available in this menu to
the right of the "AILE" column. The columns are dependent on the
number of pairs of control surface specified in the »Model type«
menu.
AILE (Aileron -> Flap)
In this line, determine the phase-dependent control percentage of
actuation of "AILE", "AILE2", "FLAP" and "FLAP2". The setting range
of ±150 % enables you to adapt to the deflection completely inde-
pendently from the direction of the servos.
AILE Tr. (Aileron trim)
This line is dimmed when "2AILE 1FLAP" is selected in the "Model
Type" menu. In this line, determine the phase-dependent trim per-
centage of "AILE", "AILE2", "FLAP" and "FLAP2". The adjustment
range is ±150%, similar to the adjustment range of the trim controls.
Diff. (Differentiation of the aileron function)
Select "2AILE 1FLAP" in the "Model Type" menu, one level higher in
the "Wing Mix" menu. In this line, set the aileron differentiation and
the differentiation of the FLAP and FLAP2, if the flaps are operated
as ailerons. The adjustment range of ± 100% enables you to set the
correct differentiation direction completely independent of the rota-
tional directions of the ailerons and flaps servos.
FLAP Pos. (FLAP position)
Here, set the phase-specific flap positions for all the flaps on the
respective model. The adjustment range of ± 100% enables you to
move the flaps to the desired position, regardless of the direction of
rotation of the ailerons and flaps servos.
Changes in the menu "Phase trim" and changes in the line "FLAP
Pos" therefore always have a direct effect on each other.
FLAP (Effect of the Flap control)
In this line, specify the percentage of the input 6 settings in the "Con-
trol settings" menu. This line’s inputs are dependent on the phase.
This line acts to the control surfaces positions of the ailerons and
flaps. A symmetrical or an asymmetrical effect can be defined for
each flap. Set the related control in the middle or the related side.
