Switch display
The switch display is a check function of the switches and control
switch in the transmitter.
Active switches are highlighted. On the right near the switch num-
ber, the switch position is displayed with a switch-symbol.

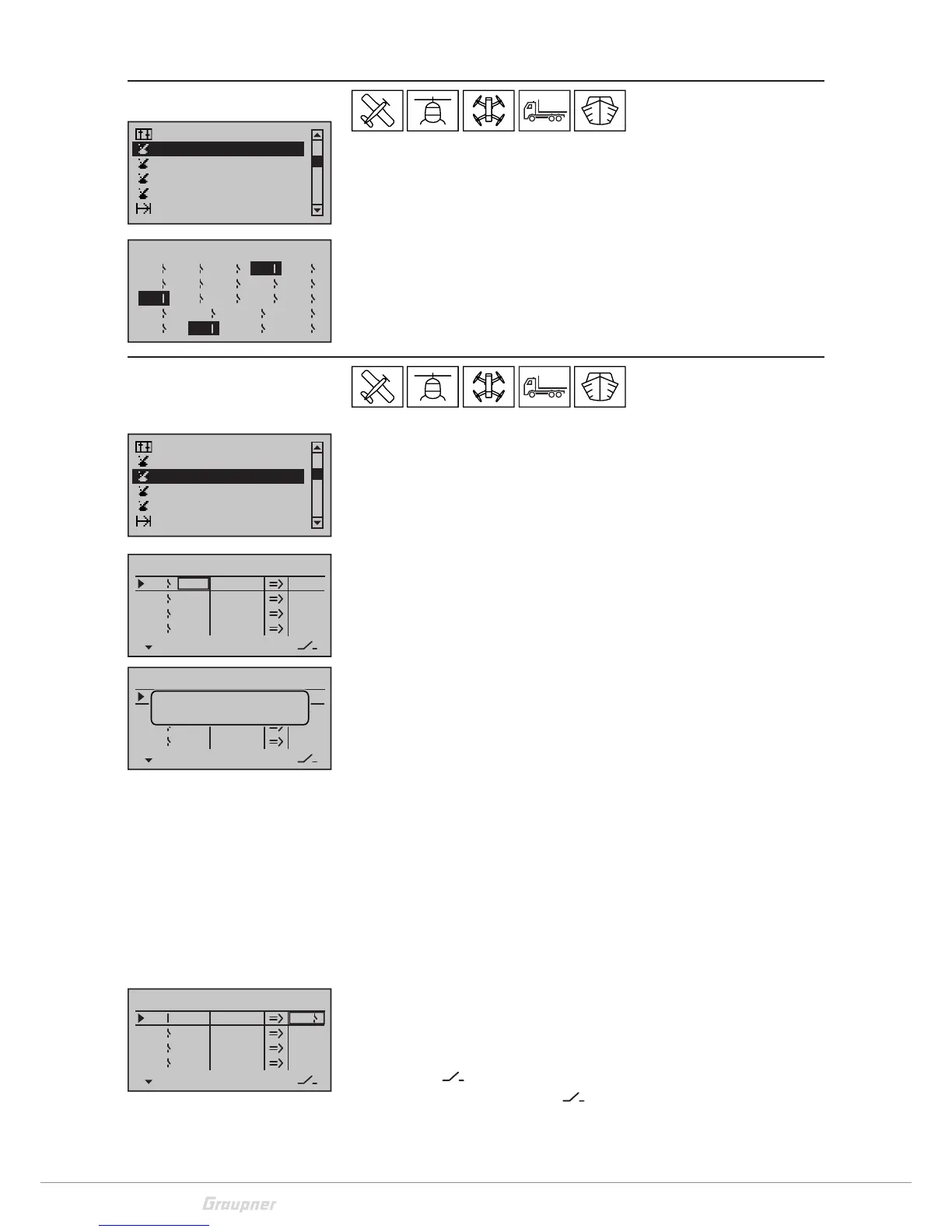

Control switch
In this menu a switch function is paired to the control travel of a pro-
portional control.
Assigning the control switch:
• Select the line of the desired control switch
• Activate the column "SEL" with the SET button
• Operate the desired control and the abbreviation of the control
will appear
Deleting the control switch:
• Use the SET button to select the desired field
• Tap on the selection buttons "left/right" or "up/down" at the
same time
Setting the switching point
• Select the STO column
• Move the control to the desired position
• Save the position through the SET button
Setting the switch direction:
• Select the column SEL and change the switch direction with the
SET button
Combining the control switch
A control switch can be controlled by another switch. In specific sit-
uations the function can be switched, independently from the con-
trol position and from the control switch position. Assign a switch in
the column "
". You can also combine 2 control switches. Select a
control switch in the column “
“
