"- Trv +"
Move the marking frame with the selection buttons over the "Off-
set" column to the right side to reach this column.
This column sets the control travel for both sides, together or sepa-
rated for each side. The setting range is 0 to 150% of the normal con-
trol travel. The set values always refer to the settings in the column
"Centre". Perform a symmetrical or asymmetrical setting as described
in the "Offset" section.
"– Time +"
Move the marking frame with the selection buttons over the "Trv"
column to the right side to reach this column.
In this column, a time delay is set for the respective channel. The set
seconds indicate the time that elapses between the switching states.
If the encoder or switch is actuated, the switching process then runs
in the set time. Assign a symmetrical or asymmetrical setting as
described in the "Offset" section.
Dual Rate / Expo
In this menu you can set the options Dual Rate and Expo.
Dual Rate
This option reduces the travel of each control function. This reduc-
tion can be activated through a switch. If no switch is assigned, the
reduction will be always active. The graphical representation to the
right shows the control path profile for the selected control function.

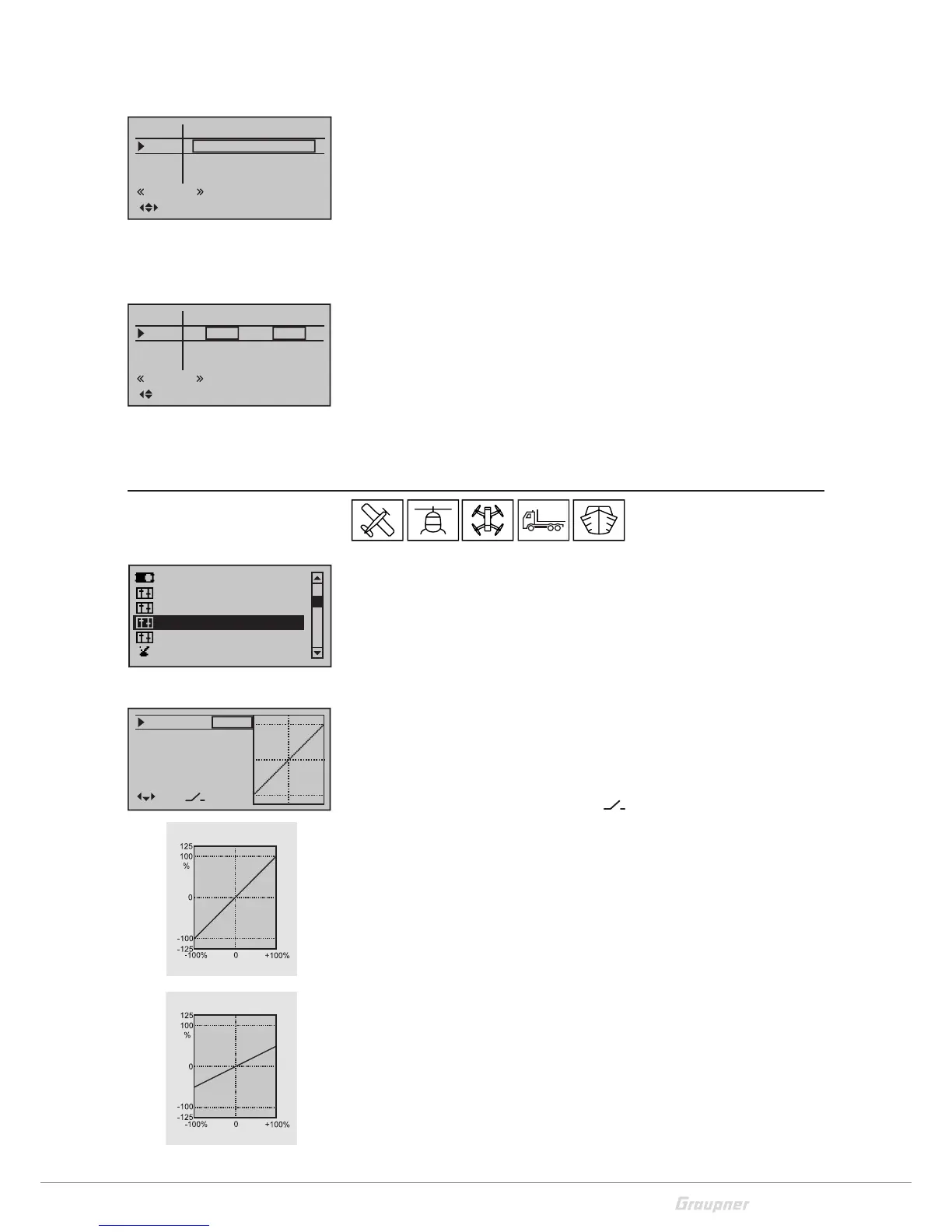

Setting the Dual Rate step-by-step:
• Select the line of the desired control function
• Assign the switch in the column
(process as described in the
section "Control settings")
• Input the reduction value in the column SEL
Now you can use the selected switch to pass from reduced control
travel to full control travel.
If the function has to be assigned specifically to the phase, the
related phase must be active. The phase name will be shown in the
second line from the bottom of the display.
In5
– trv +
+100%
+100%
+100%
+100%
In6
In7
In8
+100%
+100%
+100%
+100%
Normal
In5
– time +
0.0s
0.0s
0.0s
0.0s
In6
In7
In8
0.0s
0.0s
0.0s
0.0s
Normal
Servo adjustment
Stick mode
Channel 1 curve
Switch display
Control adjust
Dual Rate / Expo
100%
100%
100%
Ail
Ele
Rud
DUAL
–––
–––
–––
SEL
Servo travel
To Next Page
