• Swashplate linearization:
For Flybarless systems, select "no" here. For paddle head sys-
tems, the setting "yes" can prevent unwanted side effects: a
pitch change when the roll function is activated or tensions
between the linkage of the swash plate servos.
• Rotor direction:
Here set the direction of the rotor direction, seen from above the
helicopter (see figure). This information is required to ensure the
mixers can compensate for torque and power.
• Pitch min.:
Pitch min. Rear = pitch minimum is at the rear of the stick
Pitch min. Front = pitch minimum is at the front of the stick
All other options of the helicopter program which involve the gas
and pitch function are dependent on this function. For example,
the throttle curve, idle trim, tail rotor, etc.
• Expo throttle limit:
An exponential curve characteristic can be attributed to the func-
tion "Throttle limit". Described in the "Control settings" menu.
(see figure)
• Throttle limit warning:
The function "Throttle limit warning" sets the critical position of
the throttle servo variable (between 0 % and -100 %) above which
this warning should be emitted. The pitch minimum position of
the stick is the reference point of -70% (specified in this menu).
3. Setting up a flybarless system:
• If you are using a Flybarless system, set it up now. Please refer to
the instructions for the Flybarless system.
4. Phase setting menu (Phase setting):
• Phase 1 - Normal
• Phase 2 - Acro 3D
(Please also refer to the previous descriptions of the "Phase setting"
menu)

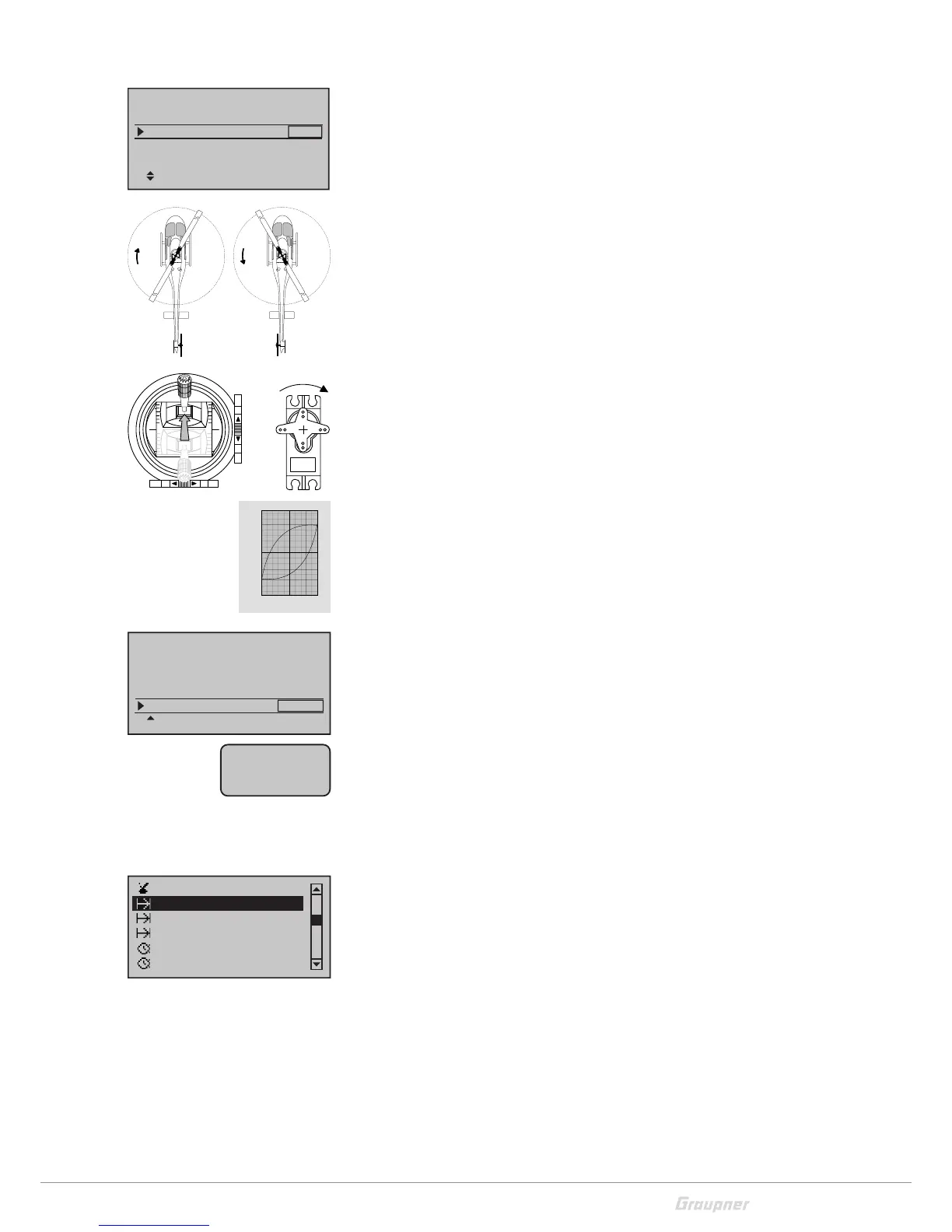

Linear. swashpl.
Swashplate
no
3Sv(2rol)
Rotor direct
right
Helicopter type
Pitch min. back
SEL
rechts-
drehend
links-
drehend
