MALFUNCTION INSPECTION CU800 Service Manual
147

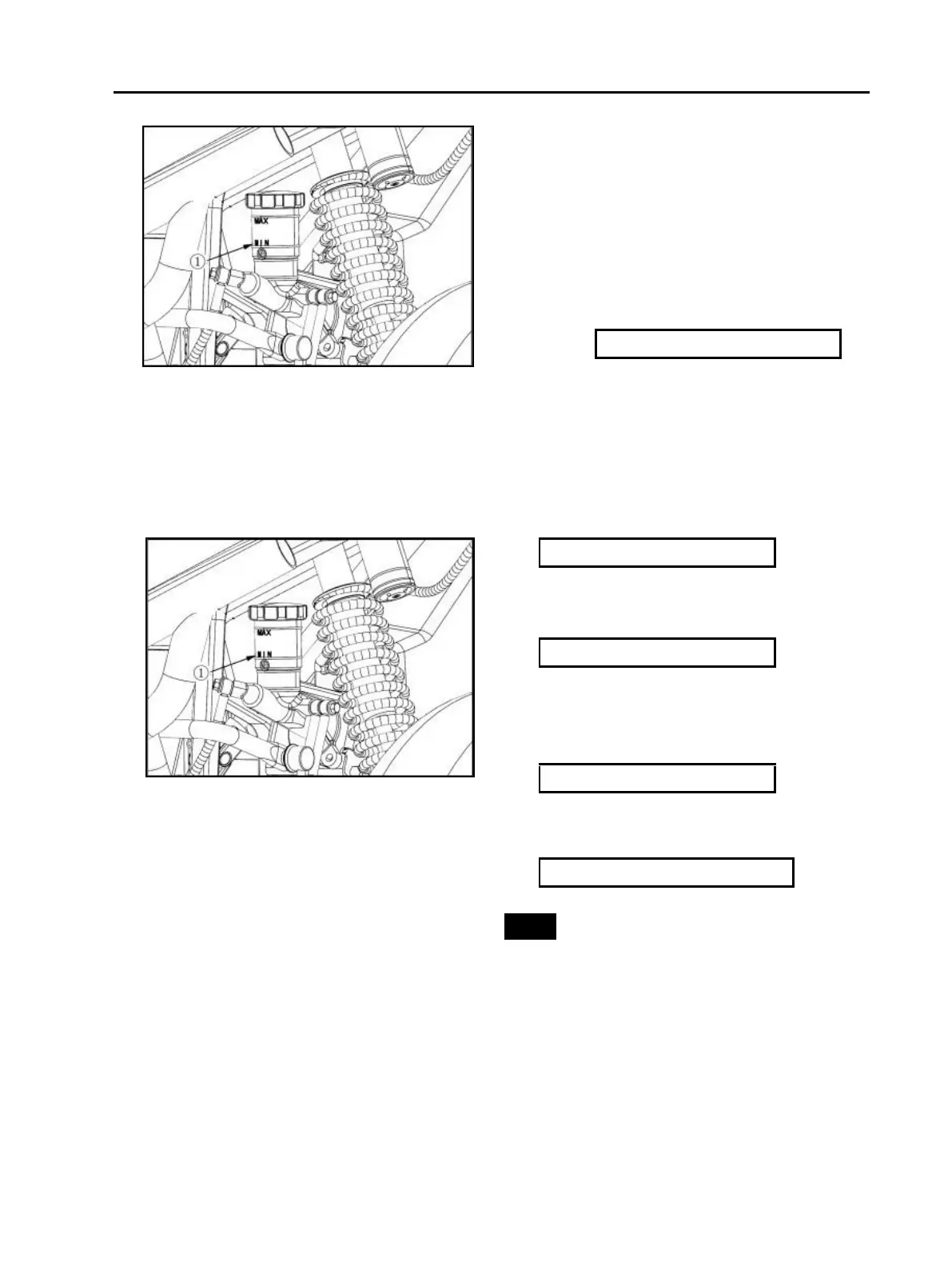

4. Check:
• brake fluid level
• minimum level mark ①
If the fluid level falls under the minimum mark,
please refill the box with the same type of fluid as
was recommended by the manufacturer to ensure
the fluid level is higher than the minimum mark.
Must use DOT3 Brake Fluid
5.3.8 Installing the Brake Master
Cylinder
1. Install:
• brake master cylinder
16Nm (1.6 m · kg,11 ft · lb)
19Nm (1.9 m · kg,13 ft · lb)
• washer plate
• brake hose
• union bolt
27Nm (2.7 m · kg,19 ft · lb)
3. Fill:
• brake fluid reservoir
Must use DOT3 Brake Fluid
NOTE
Brake fluid may damage painted surfaces or
plastic parts. Always clean up spilled brake
fluid immediately.
4. Air bleed:
• brake system
5. Check:
• brake fluid level
Brake fluid level is under the “MIN” level line
• Fill up
To Next Page
