MAINTENANCE AND ADJUSTMENT OF EV CU800 Service Manual
- 76 -

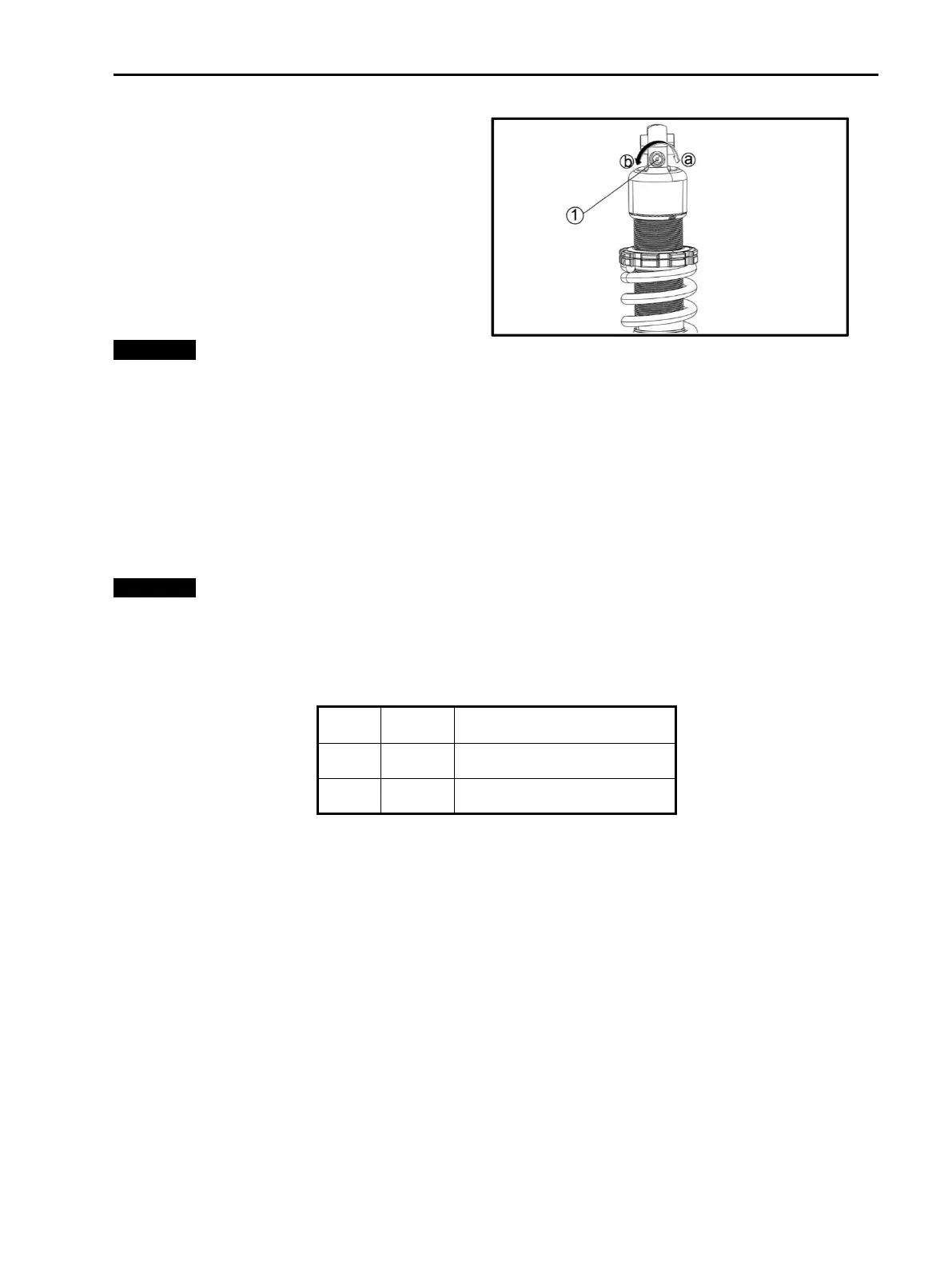

Compression Damping Force
Turn the compression damping force
adjusting screw ① (use 2.5 Allen wrench) in
direction ⓐ to increase the compression
damping force and thereby harden the damping,
and in direction ⓑ to decrease the compression
damping force and thereby soften the damping.
WARNING
·Suspension components become hot during operation. Never touch the compression
damping force adjusting screw, the rebound damping force adjusting screw or the oil
reservoir with your bare hand or skin until suspension components have cooled.
·Always adjust the shock absorber assemblies on the left and right side to the same setting.
Uneven adjustment can cause poor handling and loss of stability, which could lead to an
accident.
3.2.16 Checking the Tires
WARNING
• TIRE CHARACTERISTICS
a. Tire characteristics influence the handling of vehicle. If other tire combinations are used, they
can adversely affect your vehicle’s handling characteristics and are therefore not
recommended.
• TIRE PRESSURE
Recommended tire pressure
Front 70Kpa
Rear 70KPa
when seating the tire beads. Higher pressure may cause the tire to burst.
Inflate the tires slowly and carefully.
Fast inflation could cause the tire to burst.
• MAXIMUM LOADING LIMIT
a. Vehicle loading limit (total weight of cargo, operator, passenger and accessories, and tongue
weight): 795kg
b. Cargo bed: 250kg
c. Trailer hitch:
Pulling load (total weight of trailer and cargo): 454 kg
Be extra careful of the vehicle balance and stability when towing a trailer.
