MOTOR AND DRIVING SYSTEM CU800 Service Manual
91

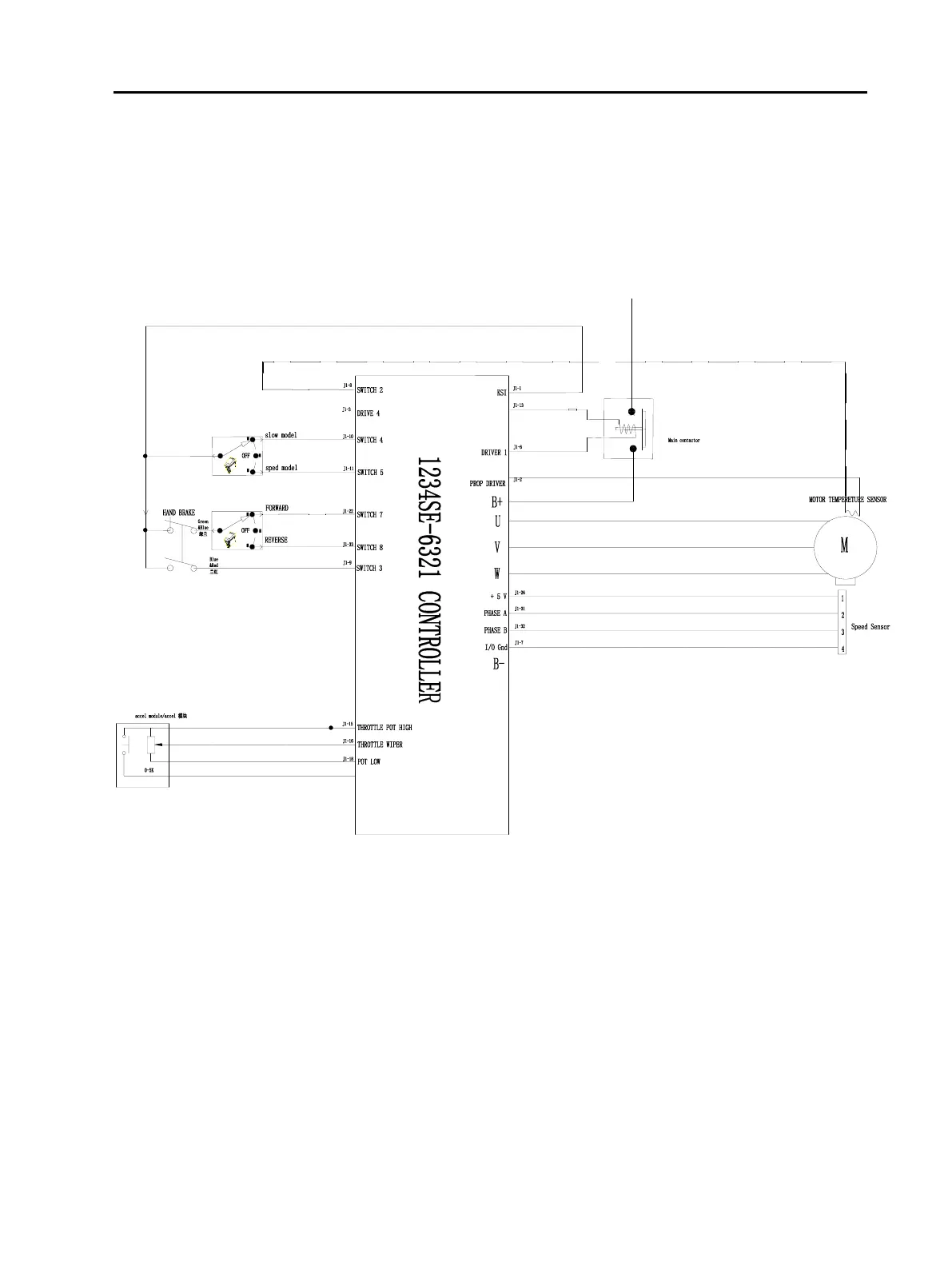

4.1.2 Motor and Controller Wiring Diagram
COIL RETURN
