5.3.1 Preparation for Checking
Brake system is crucial to the life safety of the
operator and therefore must be periodically
inspected and maintained.
This vehicle uses the single return route
hydraulic pressure disc brake system. Please
follow the tips of inspection as below.

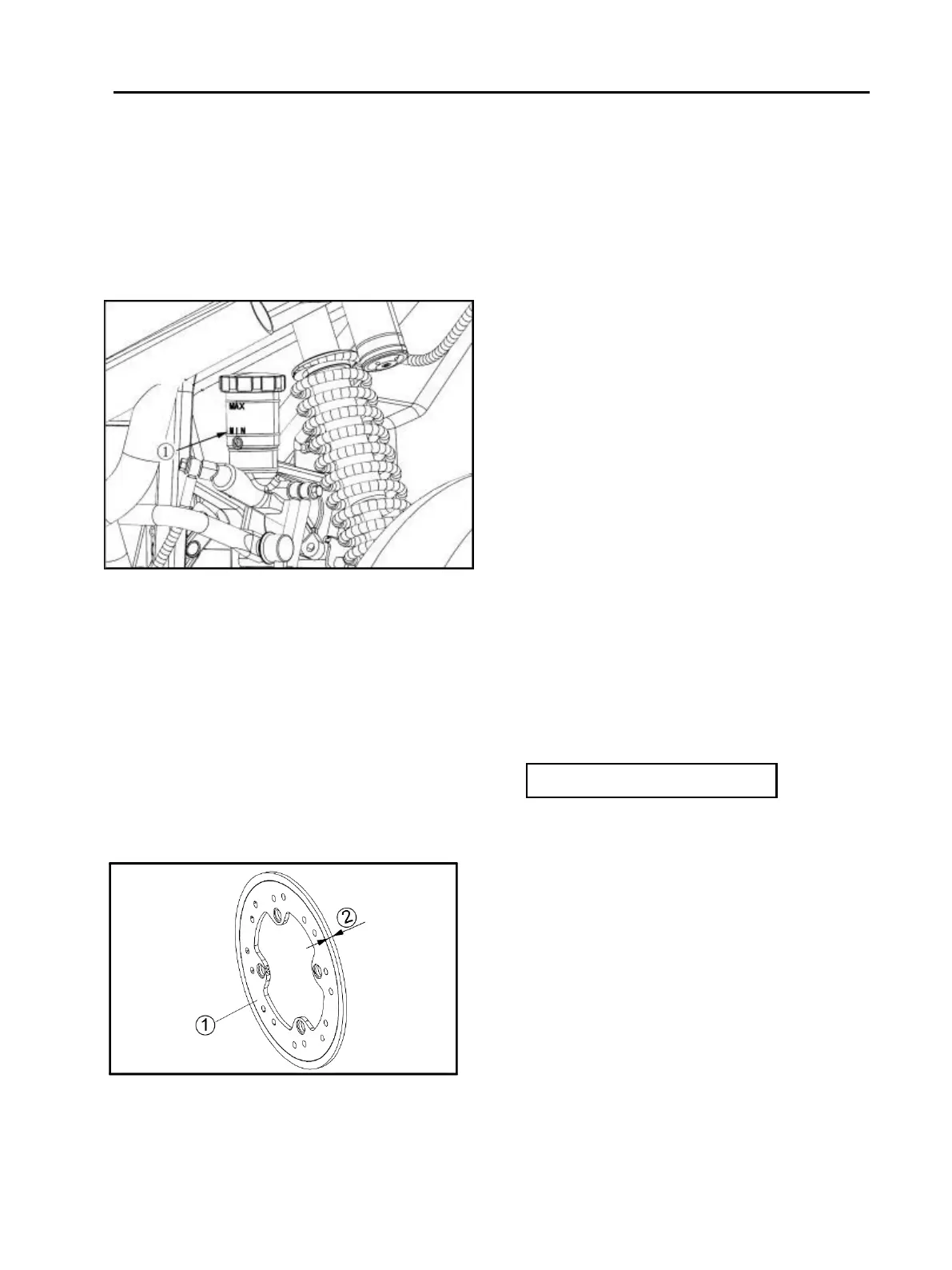

① To check the amount of liquid in the oil cup. If it
is min than the minimum mark, refill the box with
the same type of fluid as was recommended by
the manufacturer, to ensure to fluid level is higher
than the minimum mark.
② The brake should be kept between 3mm-5mm.
Otherwise, please adjust the screw to meet
required travel distance.
1. Inspect the brake pedal does maintain the
certain counter-tension. When checks disk brake
plate, the saved liquid in the oil cup will pour
automatically into the pressure pipe and the liquid
level along with it to reduce, the periodic
inspection of the disk brake plate liquid volume will
be an important project.
2. Inspect
·rear disk brake plate ①
·thickness ②
Periodical inspection of the wear condition of rear
disk brake plate is also necessary. Disk brake
plate must be replaced depending on its wear
condition.
3. Disk brake plate uses hydraulic pressure of the
brake fluid. Therefore, fuel pipe must be
periodically inspected and replaced. Inspection
method: If the oil tubing has the aging, crack or
distortion, must replace the oil tubing.
