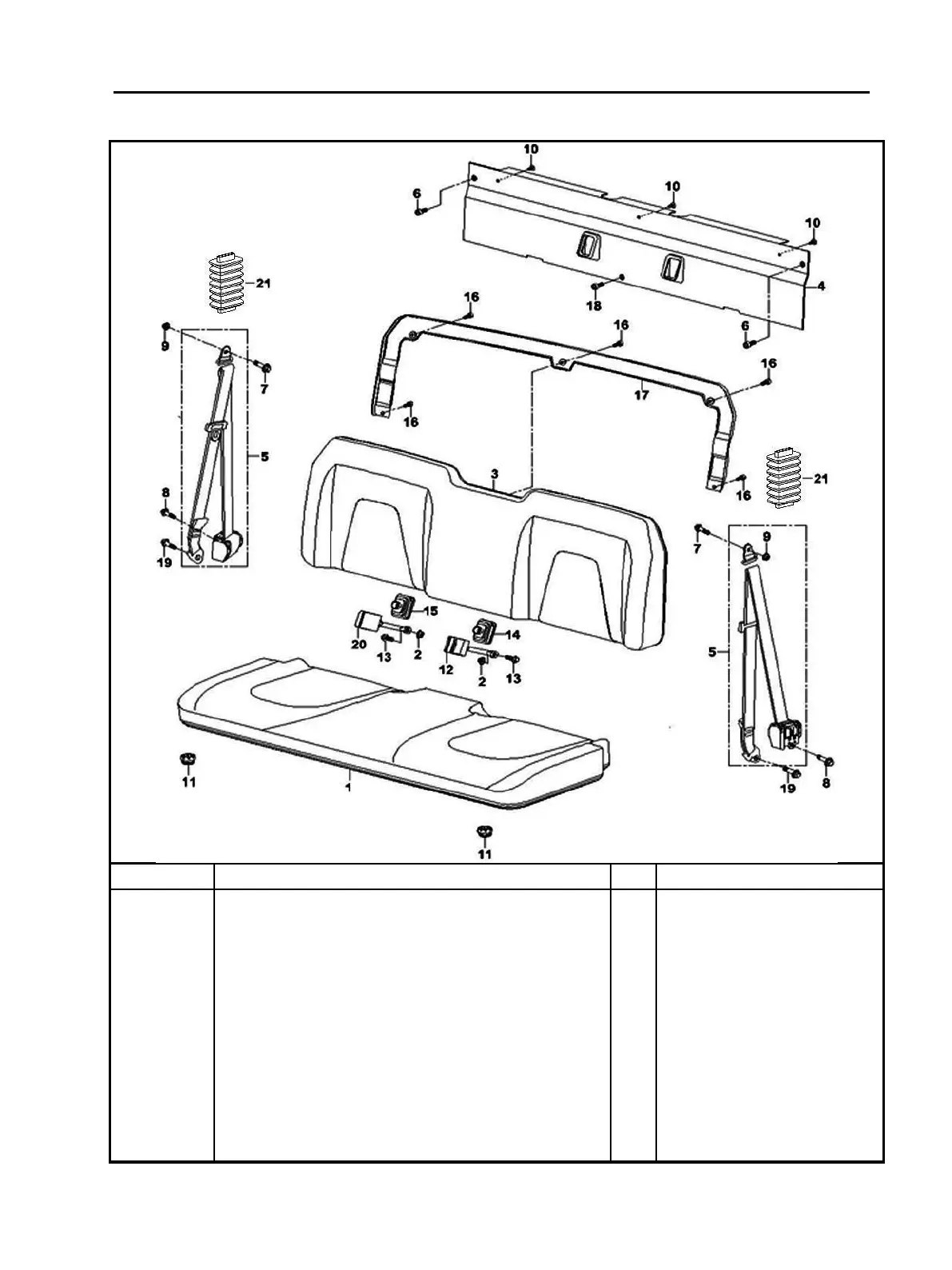

5.9 SEAT
No.
Part Name
Qty
Remarks
Removing the seat
1
Seat cushion
1
2
Hexagon Flange Locked Nut M10×1.25
2
3
Backrest Assy
1
4
Backrest Backplate I
1
5
Safety Belt
2
6
Socket Hexagon Screw M6×16
6
7
Hexagon Step Bolt With Pan M10×Φ14×9×
25Φ14×9×25Φ14×9×25Φ14×9×25
2
8
Hexagon Flange Bolt M10×1.25×20
2
9
Hexagon Flange Locked Nut M10×1.25
2
10
Cross Large Plate Head Screw M6×16
3
11
Rubber Block，Seat Latch
2
