a press:

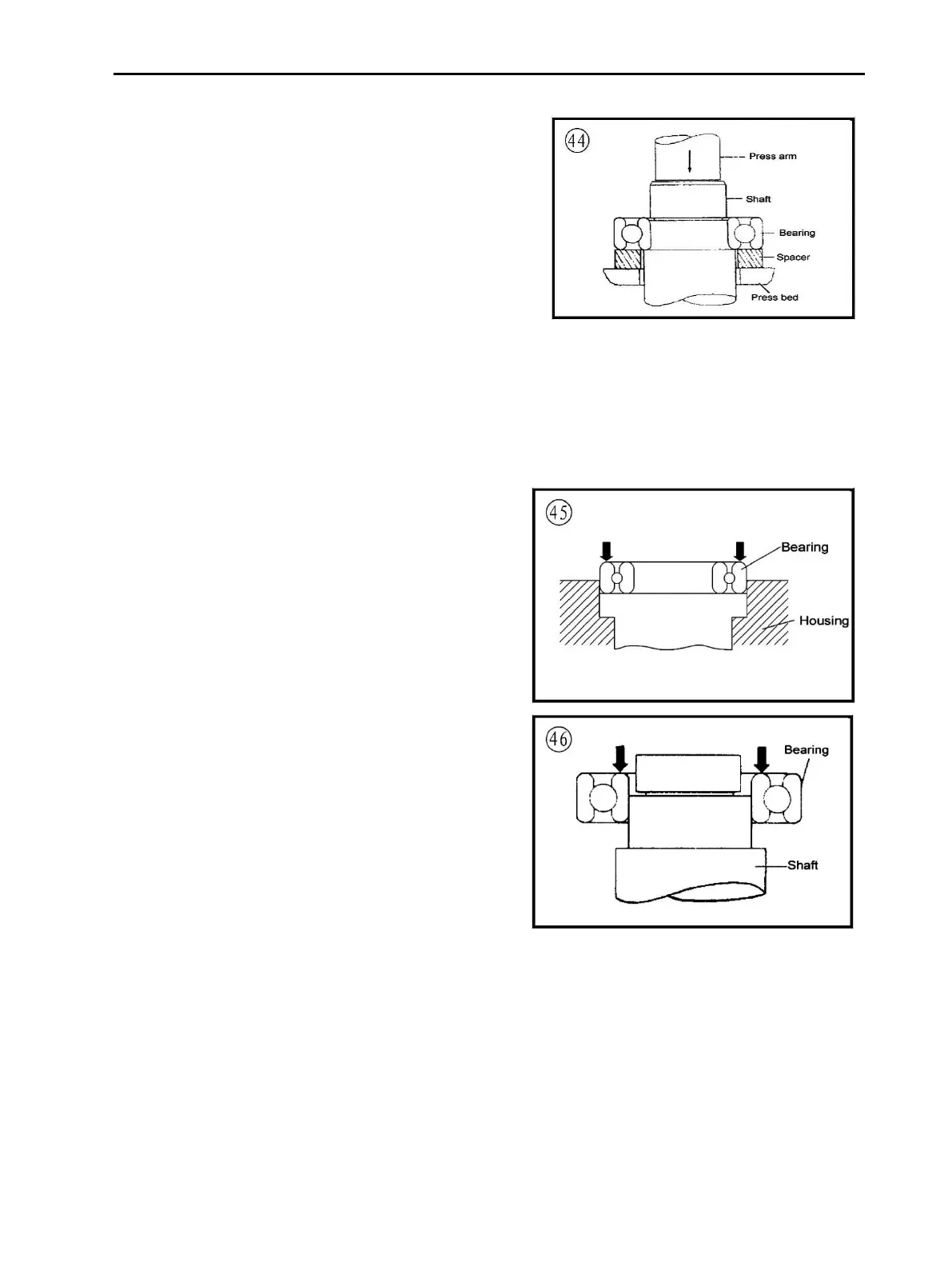

a. Always support the inner and outer
bearing races with a suitable size
wooden or aluminum spacer (Figure 44).
If only the outer race is supported,
pressure applied against the balls and/or
the inner race will damage them.
b. Always make sure the press arm
(Figure 44) aligns with the center of the
shaft. If the arm is not centered, it may
damage the bearing and/or shaft.
c. The moment the shaft is free of the
bearing. It drops to the floor. Secure or
hold the shaft to prevent it from falling.
1.11.8 Installation
1. When installing a bearing in a housing, apply
pressure to the outer bearing race (Figure 45).
2. When installing a bearing on a shaft, apply
pressure to the inner bearing race (Figure 46).
