MAINTENANCE AND ADJUSTMENT OF EV CU800 Service Manual
- 73 -
2. Check:
Ball joints and/or wheel bearings Move the
wheels laterally back and forth. Excessive free
play Replace the front arms (upper and
lower) and/or wheel bearings.

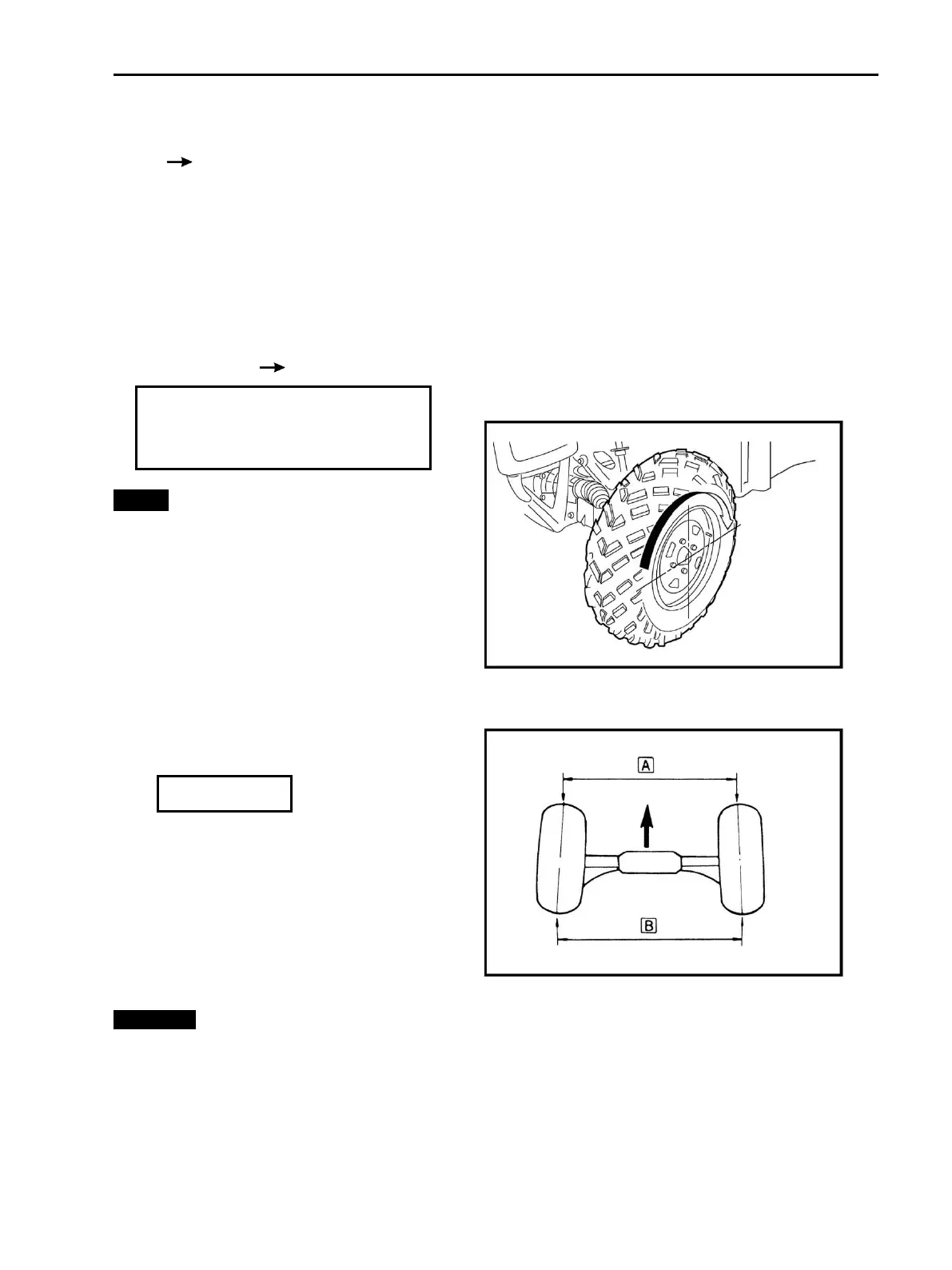

3.2.14 Adjusting the Toe-in
1. Place the vehicle on a level surface.
2. Measure:
• toe-in
Out of specification Adjust.
NOTE:
Before measuring the toe-in, make sure that
the tire pressure is correct.
a. Mark both front tire tread centers.
b. Face the steering wheel straight ahead.
c. Measure distance □
A
between the marks.
d. Rotate the front tires 180° until the marks
are exactly opposite one another.
e. Measure distance □
B
between the marks.
f. Calculate the toe-in using the formula given
below.
g. If the toe-in is incorrect, adjust it.
3. Adjust:
• toe-in
WARNING
Make sure that left / right tension rods have turned the same turns. Otherwise, the UTV will still
go UTV left and right even through. Operate the UTV to go forward straightly with steering bar,
easily causing to getting out of control and accident. After adjusting the toe-in correctly drive
the UTV to move forward a span of distance by fastening the steering bar so as to make, sure if
the Steering bar is normal, if not, adjust the tension rod left or right within the specification.
