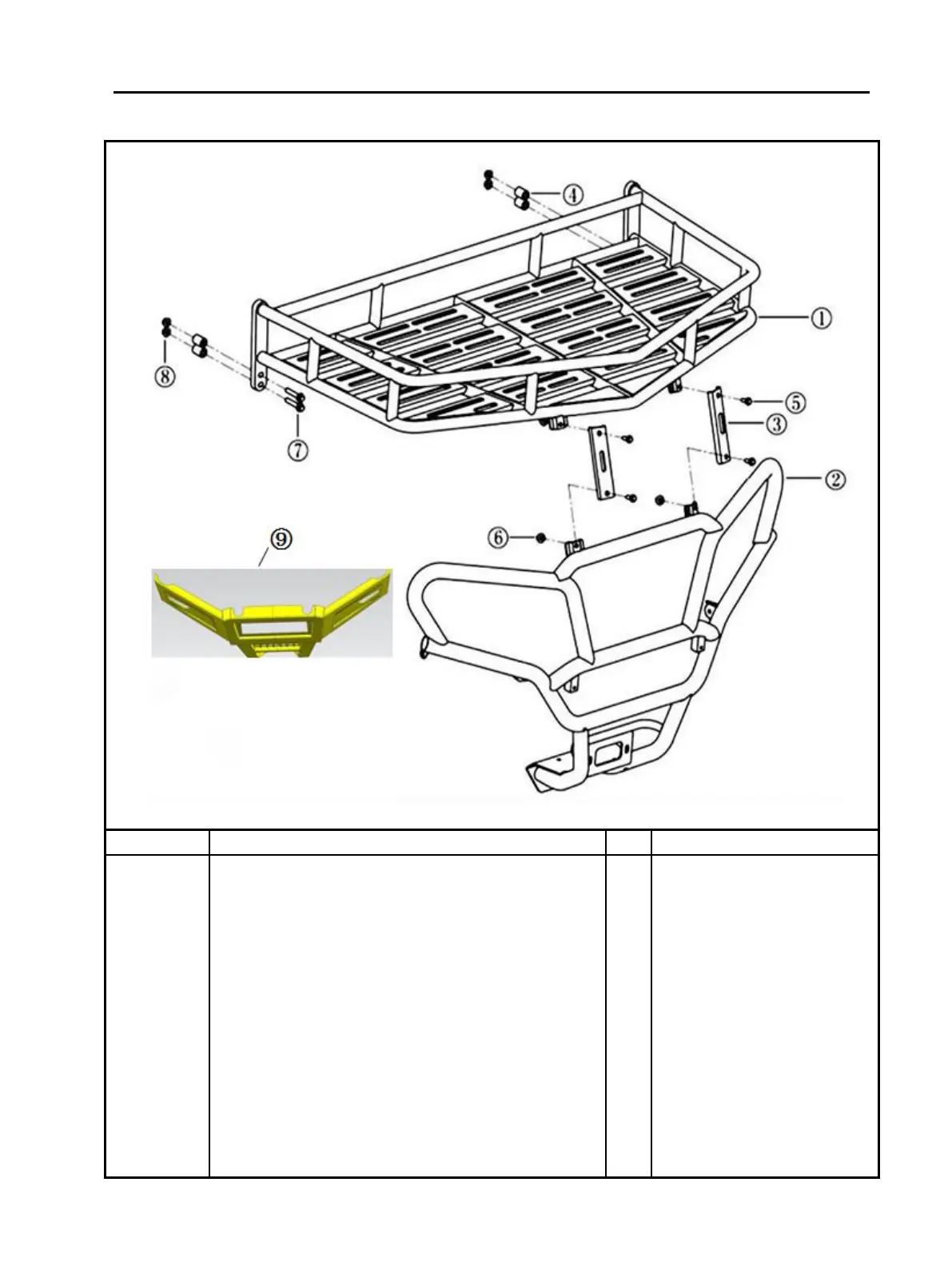

Bumper (II)
No.
Part Name
Qty
Remarks
Removing the Bumper
1
Front rack welding assembly(Black)
1
Front rack welding assembly(Green)
1
2
Front bumper weld combination(Black)
1
Front rack welding assembly(Green)
1
3
Front shelf connection plate(Black)
2
Front shelf connection plate(Green)
2
4
Bushing
4
5
Hexagon flange face bolt M8×20
4
6
Hexagon flange face locking nut with metal
insert M8
4
7
Hexagon flange face bolt M8×20M10×1.25×
92
4
8
Hexagon flange face locking nut with metal
insert M10×1.25
4
9
Front bumper guard
1
