MAINTENANCE AND ADJUSTMENT OF EV CU800 Service Manual
- 75 -

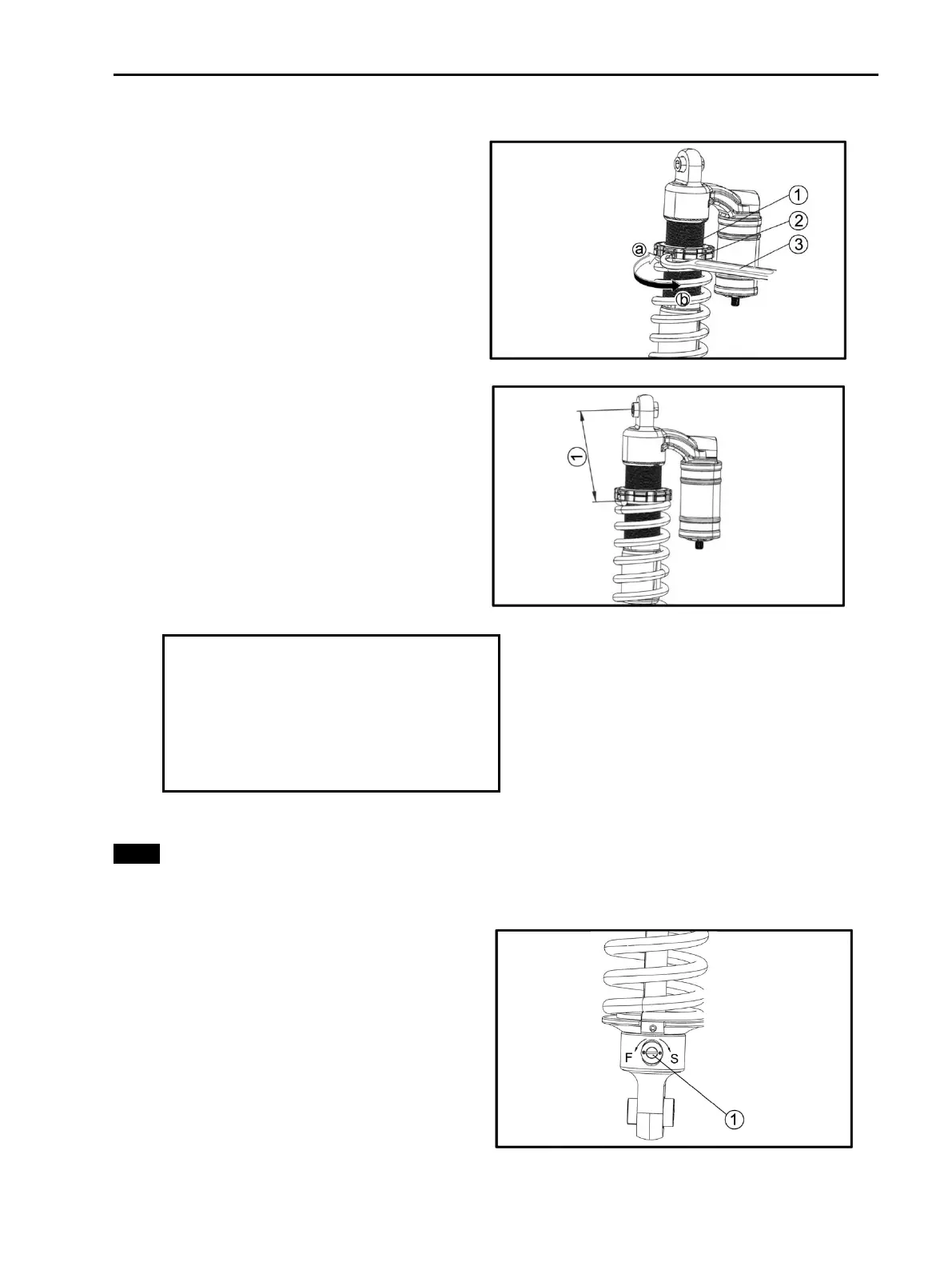

Spring Preload
1. Loosen the locknut.
2. Turn the spring preload adjusting nut in
direction ⓐ to increase the spring preload
and thereby harden the suspension, and in
direction ⓑ to decrease the spring preload
and thereby soften the suspension.
• Locknut ①
• Spring preload adjusting nut ②
• Special wrench ③
· A special wrench can be obtained at a
Greenworks dealer to make this adjustment.
·The spring preload setting is determined by
measuring distance A, shown in the illustration.
The shorter distance A is, the lower the spring
preload; the longer distance A is, the higher the
spring preload. With each complete turn of the
adjusting nut.
• Distance A ①
Spring travel setting (Front)
Minimum(soft): 375mm(14.76in)
Maximum(hard): 490mm(19.29in)
Spring travel setting (Rear)
Minimum(soft): 402mm (15.83in)
Maximum(hard): 490mm (19.29 in)
3. Tighten the locknut.
NOTE
Always tighten the locknut against the adjusting nut, and then tighten it to the specified torque.
Rebound Damping Force
Turn the rebound damping force adjusting screw
① in direction S to increase the rebound
damping force and thereby harden the damping,
and in direction F to decrease the rebound
damping force and thereby soften the damping.
