MALFUNCTION INSPECTION CU800 Service Manual
179
Front Suspension and arm
5.6.5 Installing Front Arms and
Shock Absorber
1. Install:
• front arms
• front shock absorber

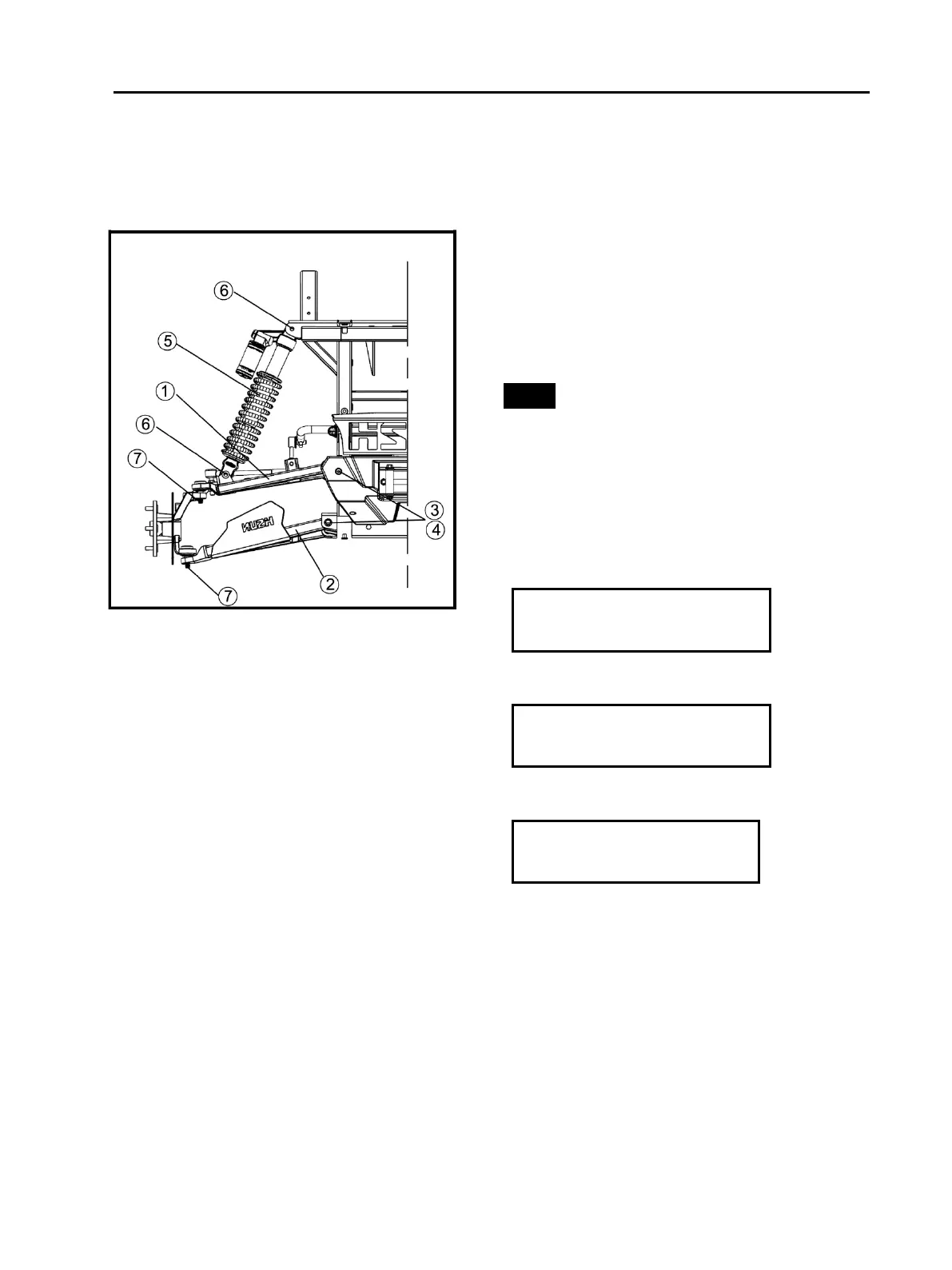

a. Install the front upper arm ① and front lower
arm ②.
NOTE
• Lubricate the bolts ③ with lithium-soap-
based grease.
• Be sure to position the bolts ③ so that the
bolt head faces inward.
• Temporarily tighten the nuts ④.
b. Install the front shock absorber ⑤.
Nut ⑥
45 Nm (4.5 m · kg, 32 ft · lb)
c. Install the front knuckle.
Nut ⑧
45 Nm (4.5 m · kg, 32 ft · lb)
d. Tighten the nuts ④.
Nut ④
45 Nm (4.5 m ·kg,32 ft · lb)
