MALFUNCTION INSPECTION CU800 Service Manual
184

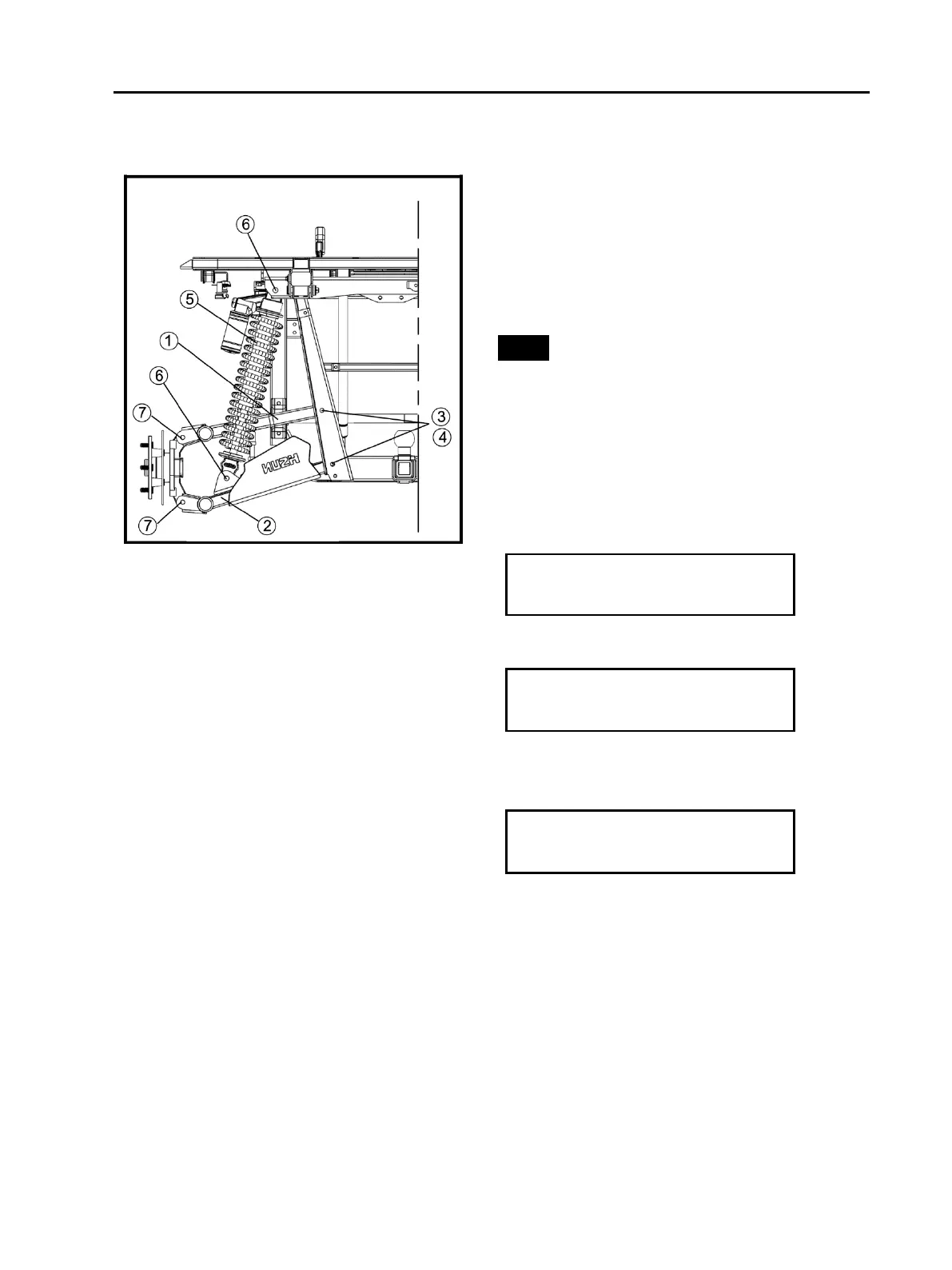

5.6.11 Installing the Rear Arms and
Rear Shock Absorber
1. Install:
• rear arms
• rear shock absorber
a. Install the rear upper arm ① and rear lower
arm ②.
NOTE
• Lubricate the bolts ③with lithium-soap-based
grease.
• Be sure to position the bolts ③so that the
bolt head faces outward.
• Temporarily tighten the nuts ④.
b. Install the rear shock absorber ⑤.
Nut ⑥
45 Nm (4.5 m · kg, 32 ft · lb)
c. Install the ball joints.
Nut ⑦
30 Nm (3.0 m · kg, 22 ft · lb)
d. Install the new cotter pins.
e. Tighten the nuts.
Nut ④
45 Nm (4.5 m · kg, 32 ft · lb)
