MAINTENANCE AND ADJUSTMENT OF EV CU800 Service Manual
85
WARNING
Never use a fuse with a rating other than that specified. Never use other materials in place of a
fuse. An improper fuse may cause extensive damage to the electrical system, a malfunction of
the lighting and ignition systems and could possibly cause a fire.
4. Install:
• battery case cover
5. Close the hood.

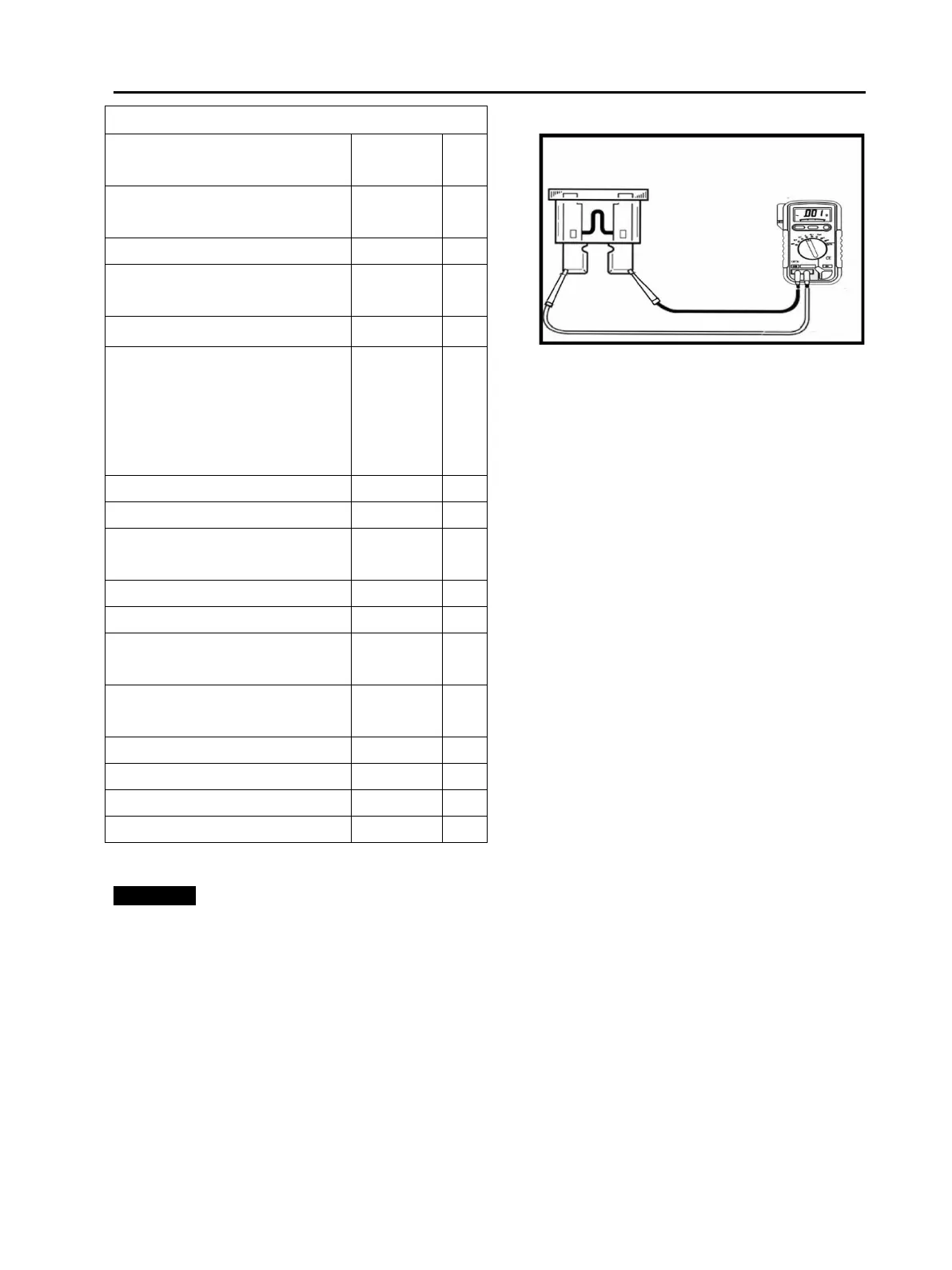

12V power system fuse
Description
Current
rating
Qty
F1 Battery pack Enable
signal fuse
5A
1
F2 Winch controller fuse
5A
1
F3 The 2WD/4WD differential
control relay fuse
5A
1
F4 DC fuse
10A
1
F5 Motor meter/
CAN Communication
Converter/ Motor controller
relay switching power
supply fuse
5A
1
F6 Horn fuse
10A
1
F7 Signal light system fuse
5A
1
F8 Speed limiter/EPS
controller fuse
5A
1
F9 USB power socket fuse
5A
1
F10 Headlight fuse
10A
1
F11 Meter/Battery pack
constant power fuse
5A
1
F12 Standby connection
post fuse
30A
1
Reserve
5A
2
Reserve
10A
2
Reserve
30A
2
DC-DC Converter fuse
100A
1
