Enables the HDMI output to display the image of the selected service (Enable
service) or the images of all the channel services (Enable carreousel). In this
latter case, each service will be displayed for a few seconds and the next
service is displayed.

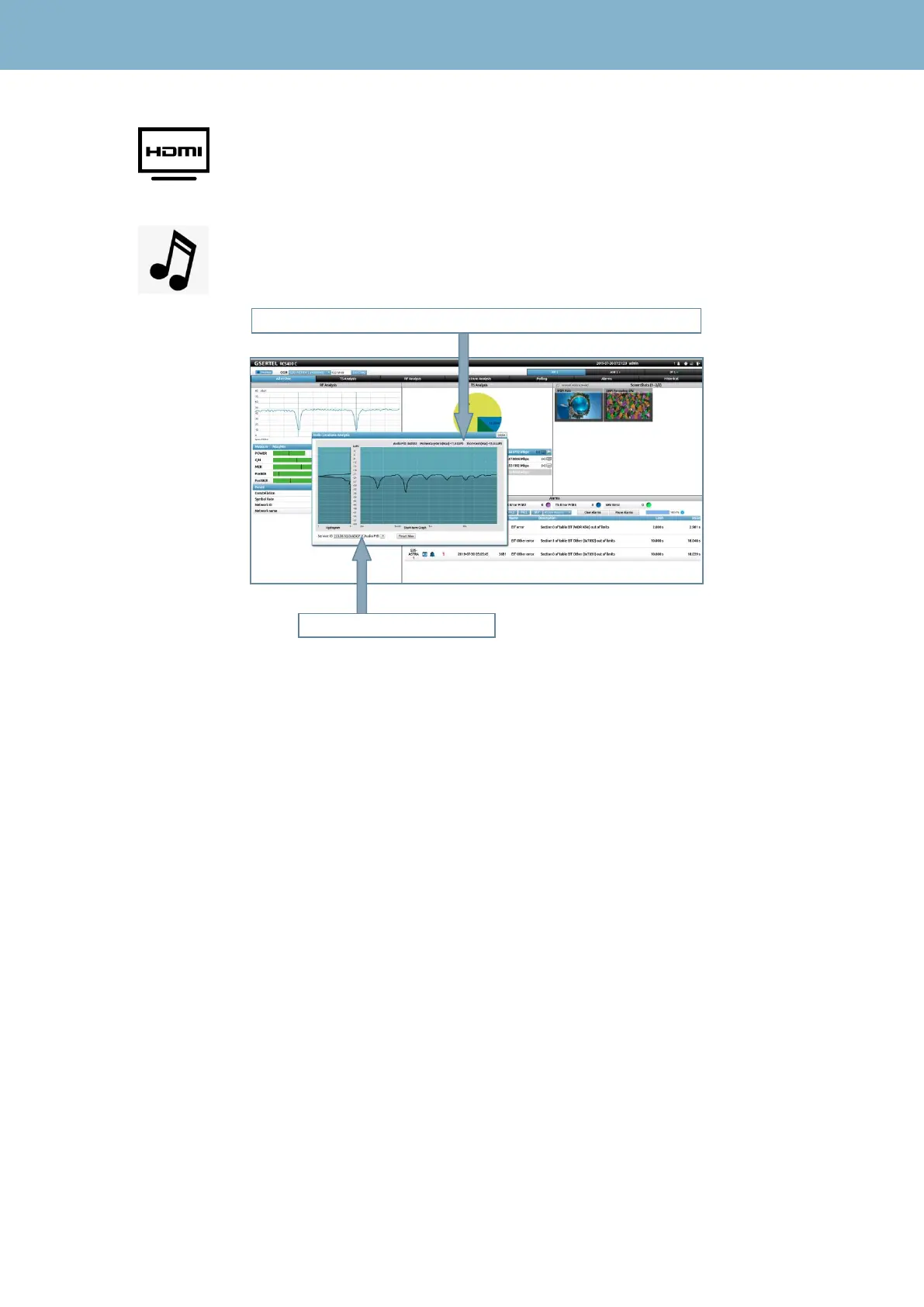

Shows a popup window with the loudness graph of the selected service,
according to EBU Tech Doc 3341:
The chart at the right shows the loudness short term measurement in the last
2 minutes, while the chart at the left shows the hystogram.
The EBU Tech Doc 3341 stablishes a maximum value, indicated in the charts
with the background color: the mean loudness value must be in the dark blue
zone.
The user can enable the alarm corresponding to the loudness measurement,
included in the type of alarm “Service” (see section 1.5.1.- Alarms profiles).
 Screenshots section
A mosaic with the screenshots of all the services of the channel that are refreshed continually.
Right mouse clicking on a capture will display the following submenu:
Momentary and short term measurements, according to EBU Tech Doc 3341
Change Service and Audio PID
