Gsertel RCS 100 User Manual

RCS User Manual
47

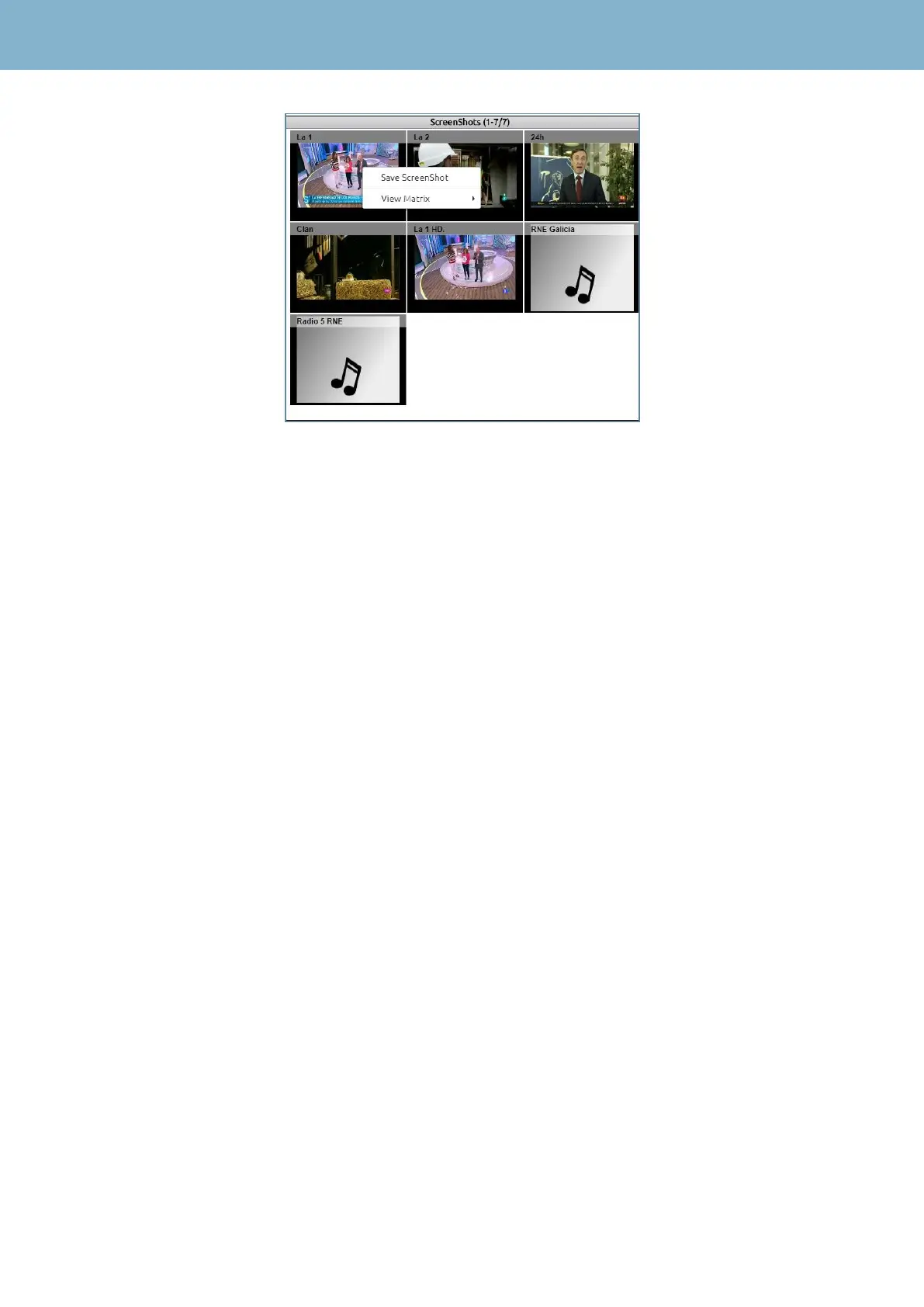

Save ScreenShot: Makes a snapshot of the current image of the selected service.
View Matrix: Select the number of screenshots visible on the grill. Note: If you select the option
of one screenshot on the grill, two buttons are displayed at the top that allows you to change the
service.
 If the RF input is selected, this feature shows:
 Spectrum. Fixed span of 20MHz and automatic reference level according to the signal.
 RF measurements (for RCS100 y RCS400: Power, C/N, MER, CBER, VBER, Left shoulder,
Right shoulder, and Frequency offset -option 902529-; for RCS50: Power, C/N, MER, CBER,
VBER) and the signal parameters.
The colors of the bars are related to the alarms thresholds.
Circles colors match the color of the worst alarm generated during the period of time that has
been measured.
To check the configuration of the alarms, see section 1.5.1.- Alarms Profiles
 If an ASI input is selected, it does not appear the RF information on the screen. But the rest of
the information is the same as in the previous case.
 If the IP Video input (option 902518) is selected, this feature shows:
