3.3.1 FlexxPump
3.3.1.1 FlexxPump4N dimensions and connections
96
107
110.8
103
108.5
198.4
33.5
A B

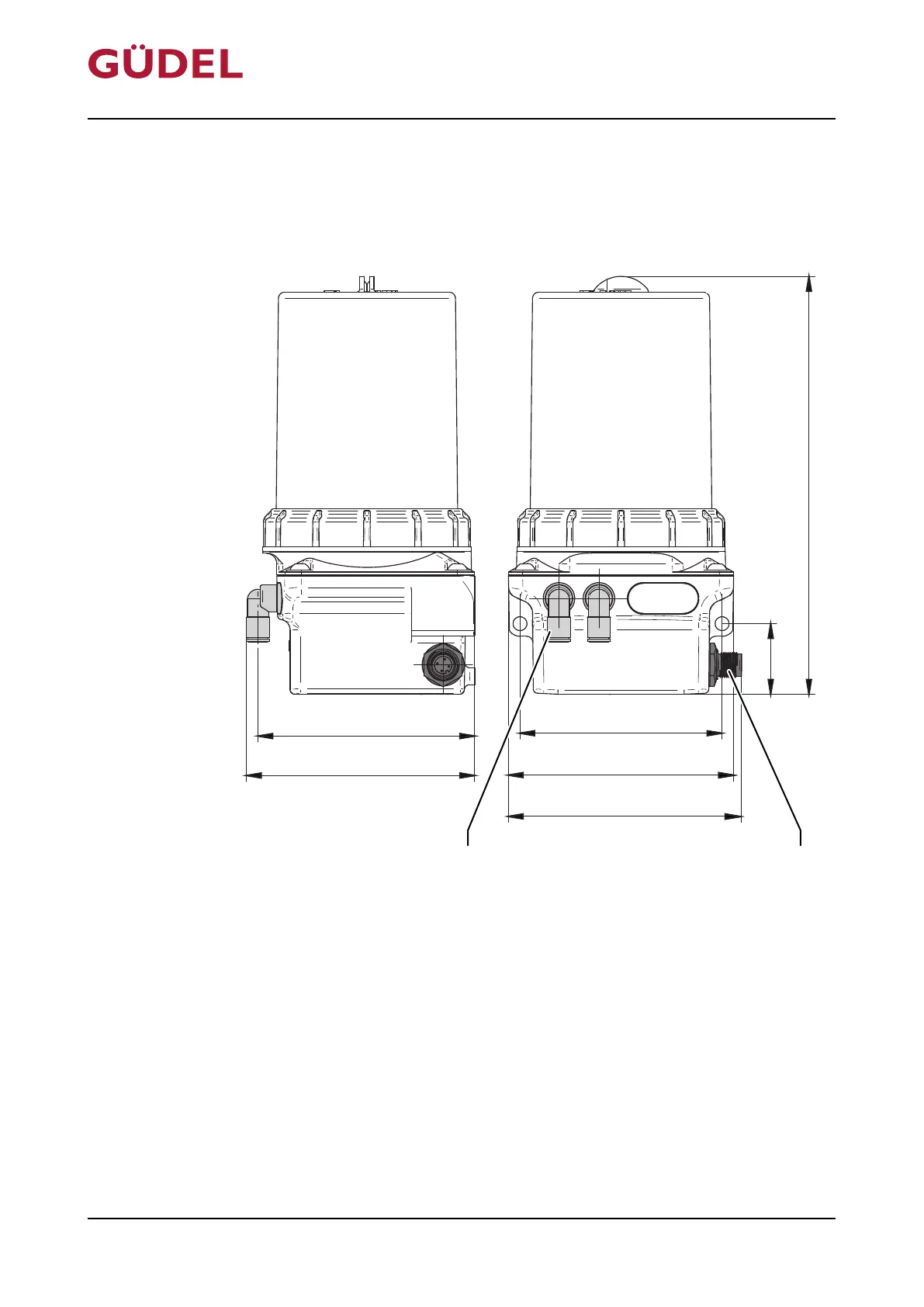

Fig.3-3 FlexxPump4N dimensions and connections
A Hydraulic output
B connector plug M12x1
Connections
Hydraulic:
• Two connections for lubrication lines diameter 6/3mm
Electrical: the four-pin connector in size M12x1 transmits the following sig-
nals:
• Error signals
• Operating voltage
