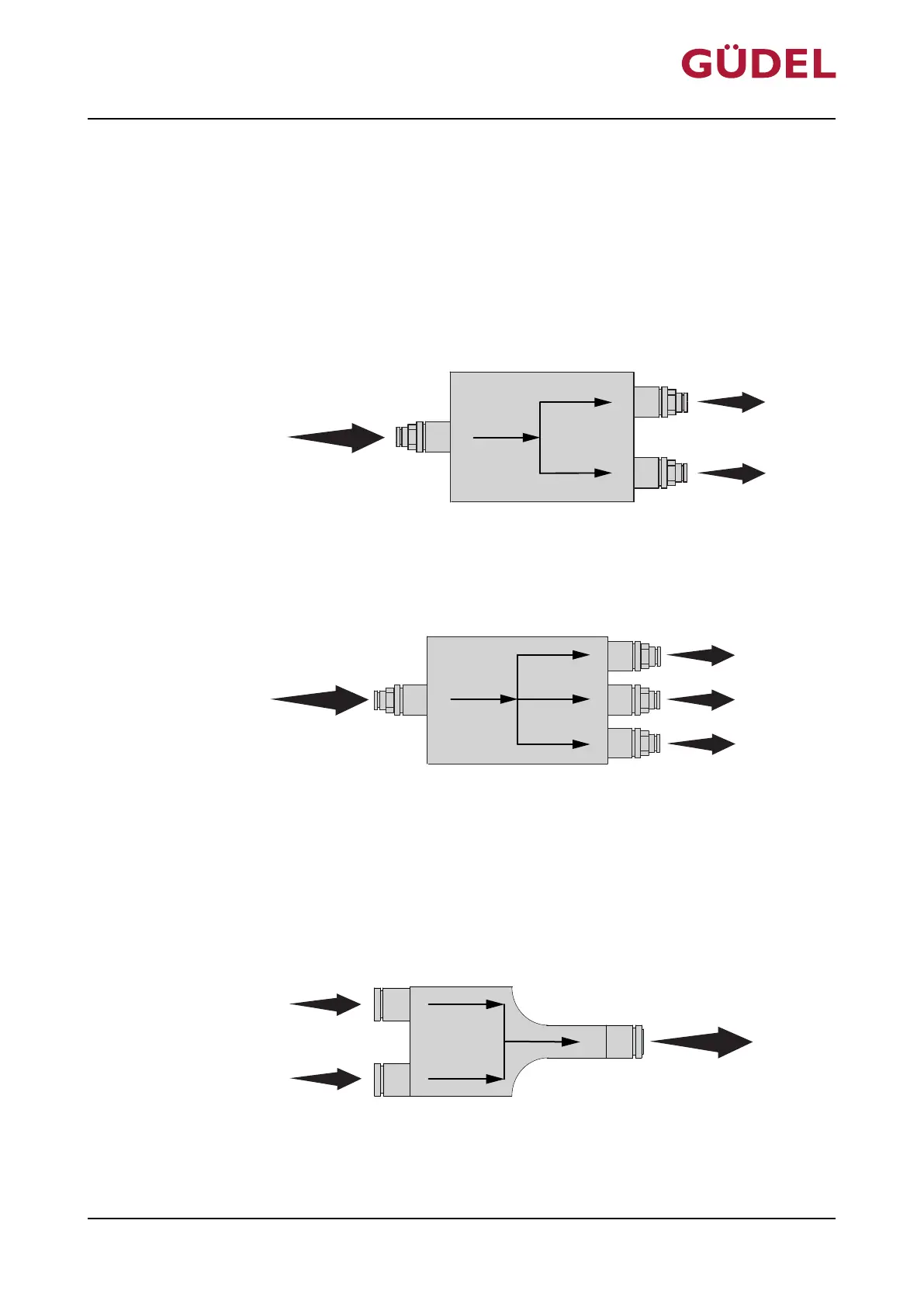

4.2.3 Splitter
The quantity of lubricant at the input is distributed evenly between the out-
puts. The splitter only works in the direction of the arrow.
Lubrication quantity
½ lubrication quantity
½ lubrication quantity
Fig.4-5 Function: Splitter, 2-fold
Lubricant quantity
⅓ lubricant quantity
⅓ lubricant quantity
⅓ lubricant quantity
Fig.4-6 Function: Splitter, 3-fold
4.2.4 Y-segment
The quantity of the lubricant at the inputs is combined at the output. The Y-
segment only works in the direction of the arrow.
2x: lubrication quantity
Lubricant quantity
Lubricant quantity
Fig.4-7 Function: Y-segment
